12. HIGH–SPEED SERIAL BUS (HSSB)
289
WARNING
Before starting to mount or remove a personal computer
interface board, switch off the personal computer and its
peripheral devices, and disconnect their power supply
cables. Otherwise, there is a serious danger of electric
shock.
(1)Set the I/O addresses before installing the board. Set I/O base
addresses which do not overlap the I/O address areas exclusively used
by the personal computer and ISA expansion board. (See the figure
below.)
When using multiple personal computer interface boards, set the I/O
base addresses so that those addresses do not overlap each other.
(2)Remove the blank panel from the expansion slot of the personal
computer.
(3)Insert the interface board. Ensure that it has been completely inserted
into the ISA connector.
(4)Fix the metal brackets with screws.
CAUTION
Do NOT touch the edge terminals (the contacts that engage
with a mating connector) of the interface board.
Bit
Set value
(binary)
Hexadecimal
value
b1 b2 b3 b4
001
0
2
Setting for general edition 01A
LMN
b1234
(0 to Fh)
1
0
L MN
A15 A04
Example
Binary–to–hexadecimal
conversion
(Side view)
(Top view)
The I/O base address of the
interface board is:
Factory–set as follows:
L= 0
M= 2
N= 8
LMN 0 h *
Personal computer
interface board 2
Setting for general edition 02A and later
* If the base address is LMN0h, the interface board can use LMN0h to LMNFh.

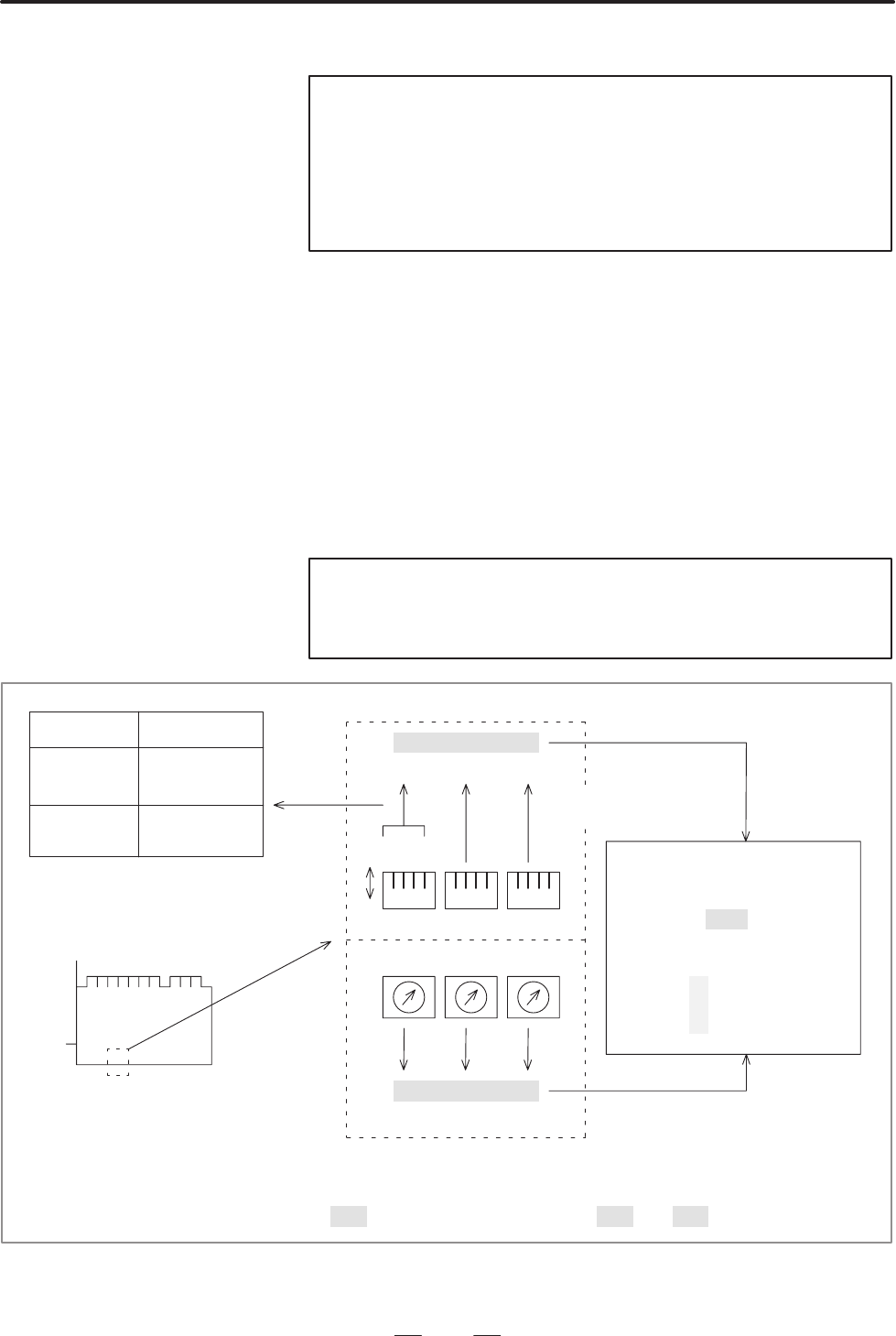

I/O base address setting
(for personal computer interface board type 2 (A20B–8100–0100))
12.6
PROCEDURE FOR
INSTALLING
PERSONAL
COMPUTER
INTERFACE BOARDS
