Series 21i/210i-Model A Connection manual (Hardware) Page 303

Connection manual (Hardware)
B–63083EN/02
12. HIGH–SPEED SERIAL BUS (HSSB)
290
A20B–8001–0583
A20B–8001–0582
LMN
Personal computer
interface boards
New type 2
(When viewed from
the top of the board)
Channel A
Channel A
Channel B

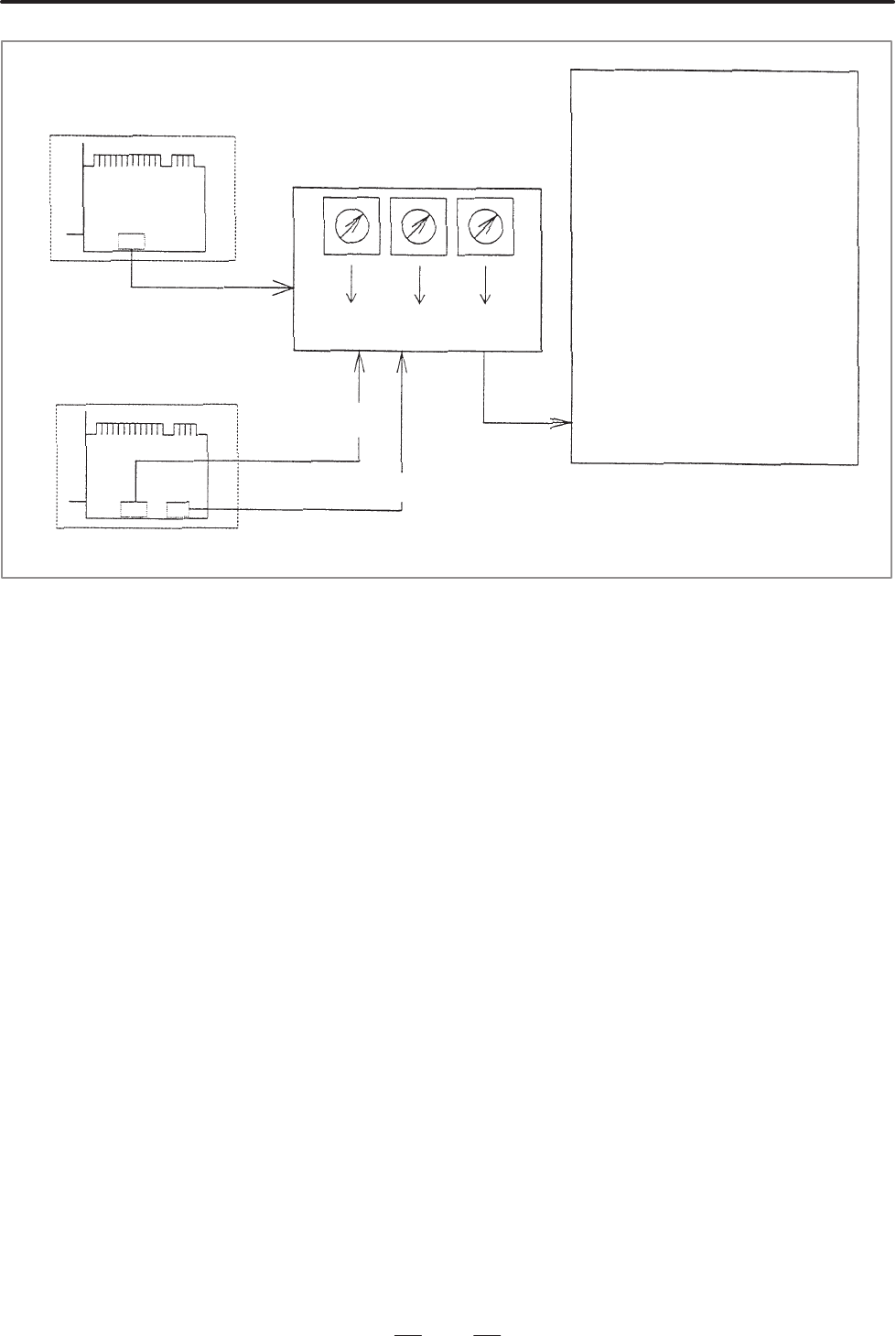

The I/O base address of the
interface board is LMN0h(*1).
The factory settings are as follows:
A20B–8001–0583
L, M, N = 0, 2, 8 for channel A
(COP7A)
A20B–8001–0582
L, M, N = 0, 2, 8 for channel A
(COP7A)
L, M, N = 0, 2, 9 for channel B
(COP7B)
*1 When the base address is LMN0h, LMN0h to LMNFh are used.
I/O base address setting
(for personal computer interface board of new type 2 (A20–B–8100–0582, –0583))
