Series 21i/210i-Model A Connection manual (Hardware) Page 137

Connection manual (Hardware)
B–63083EN/02
9. CONNECTION TO FANUC I/O Link
124
(a) The optical link adapter enclosure is not fully sealed ; install it with
the CNC control unit in the fully enclosed cabinet.
(b)Ground the case using the case fixing screw of the optical link adapter.
(c) The optical link adapter is light, and it may not be necessary to mount
it with screws. However, keep it from coming in contact with other
circuits to prevent possible short–circuits. When mounting the optical

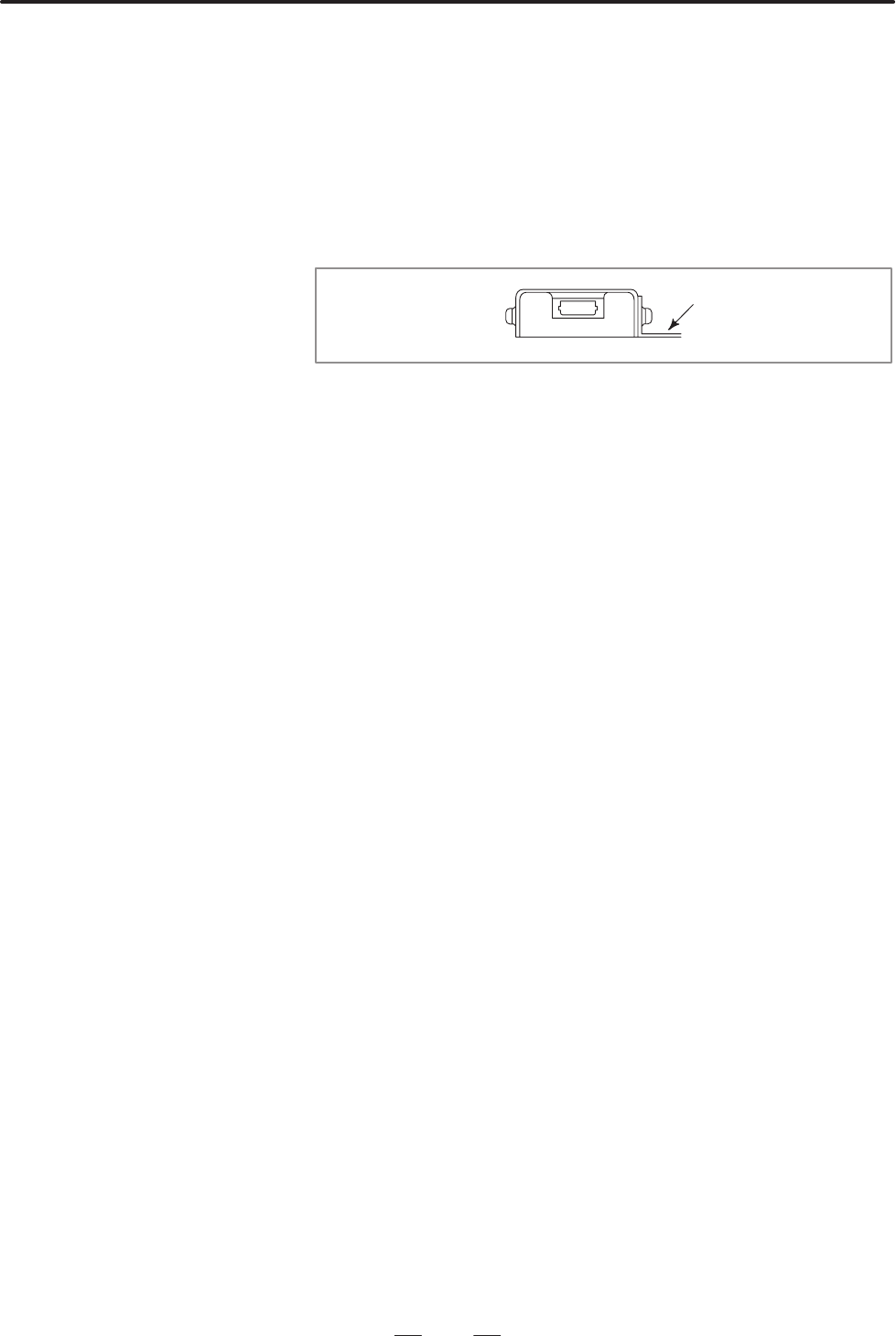

link adapter in a cabinet, attach it with an L–type fitting using the case
fixing screws (M3) of the optical link adapter.
L fitting
For making up an I/O Link using the optical link adapter, the following
parts are necessary:
1 Optical I/O Link adapter 2
2 Interunit connecting cable 2
3 Optical cable 1
Installation conditions
Required parts
