2. HARDWARE

B–63175EN/03

196

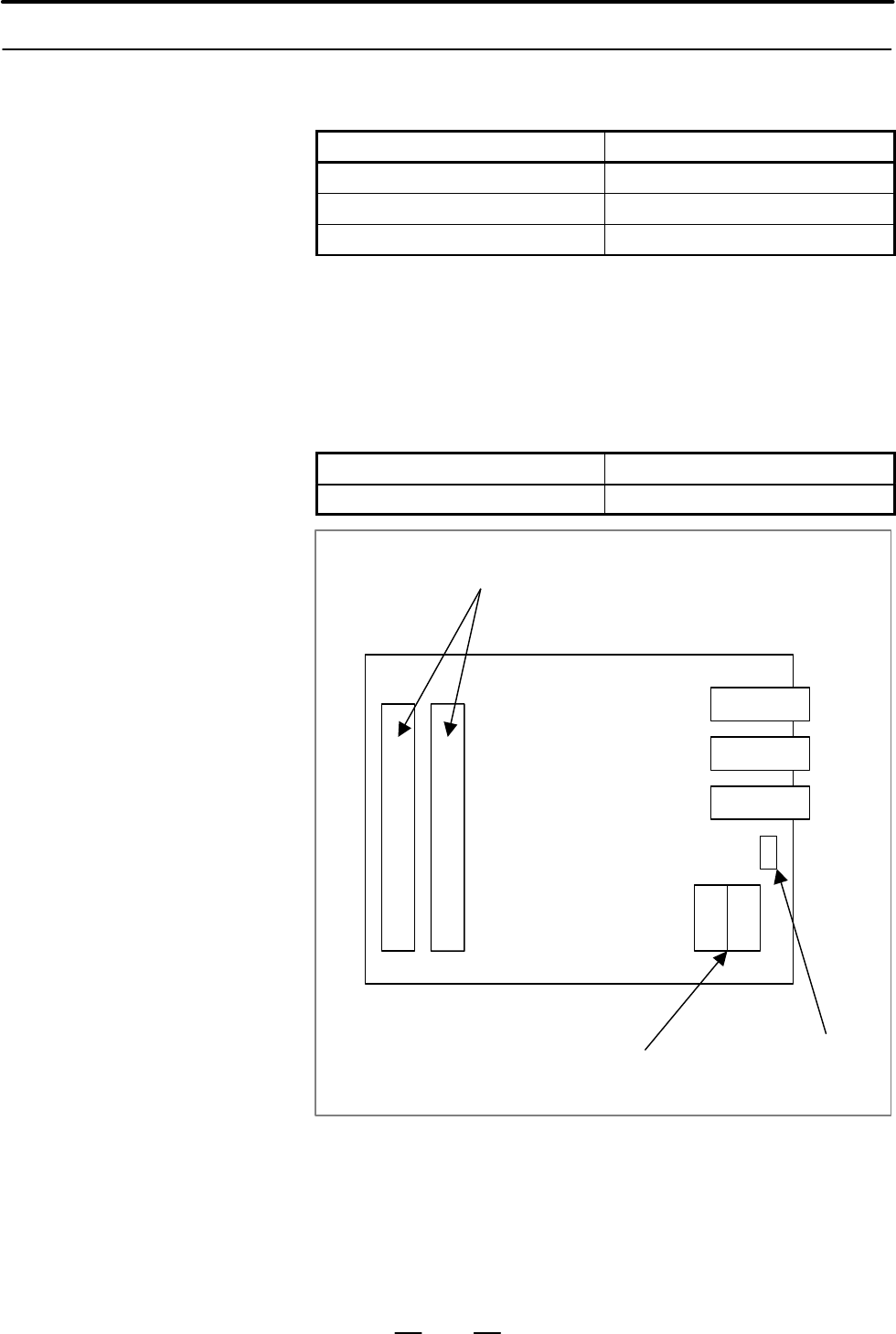

This section applies to the I/O module for operator’s panel.

Table 2.7.12 (a) Drawing numbers of the I/O modules for operator’s panel

Name

Specification

I/O module A1 for operator’s panel A20B–2002–0470

I/O module B1 for operator’s panel A20B–2002–0520

I/O module B2 for operator’s panel A20B–2002–0521

The I/O module for operator’s panel contains a 24 VDC power input fuse.

If power is not supplied to the I/O module for operator’s panel, this fuse

may have blown. In such a case, remove the fuse from its socket, then

check its continuity using a multimeter. When the fuse has blown,

investigate the cause, take appropriate action, then replace the fuse.

Table 2.7.12 (b) Capacity and specification of the I/O module fuse for

operator’s panel

Capacity

Specification

1.0A A03B–0815–K001

JD1A

JD1B

JA3

Power supply

connector

Fuse

I/O connectors

2.7.12

I/O Module for

Operator’s Panel
