APPENDIX

D. MEMORY CARD OPERATOR’S

MANUAL

B–63175EN/03

532

CR2325 or equivalent battery can be used for the SRAM memory card.

Change to CR2025 was made in May, 1997.

The battery life is as follows.

But the battery life in the table is only reference data, because the battery

life is changeable by the change of ambient temperature.

Drawing Number Part’s Number Battery Life

A87L–0001–0150#2M MB98A91123–20 about 6 months

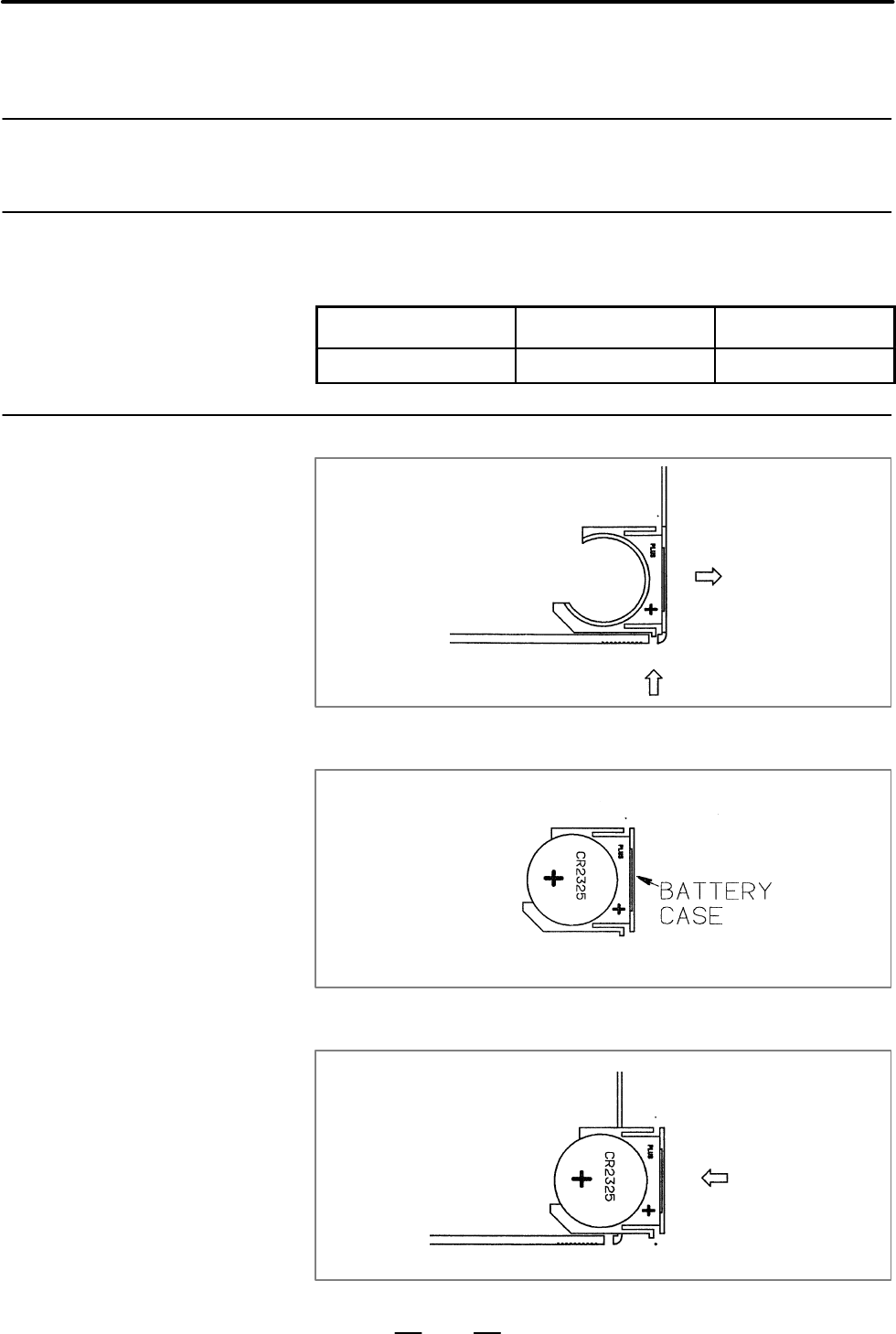

(1)Pull the battery case out with pushing projection.

(2)Change the battery.

“)” mark of the battery must be set to “)” mark of the battery case.

(3)Put the battery case back in the memory card, and make sure read/write

operation.

D.6

BATTERY CHANGE

D.6.1

Battery

D.6.2

Battery Life

D.6.3

Procedure of Battery

Change
