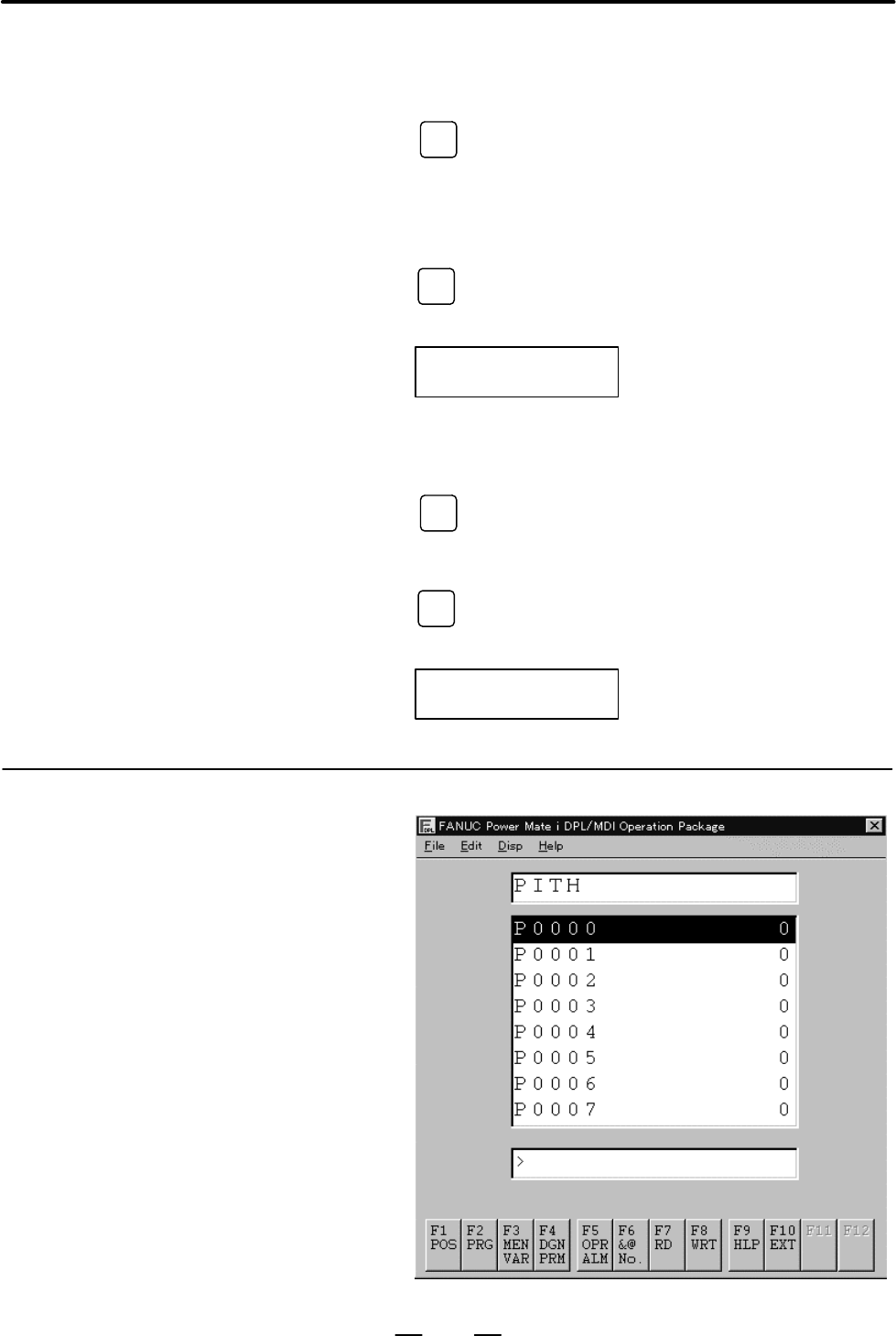

G. MAINTENANCE USING A NOTEBOOK

PERSONAL COMPUTER

B–63175EN/03

APPENDIX

602

(1)Parameter (input)

1 Press the EMERGENCY STOP button on the machine.

2 Select the parameter screen.

Press

DGN

PRM

. The parameter screen, diagnosis screen, and pitch

error compensation screen alternately appear. Select the parameter

screen.

3 When parameters are stored in a file in a device, perform file

heading as required.

4 Press

to input the parameters.

During input, “RD” is displayed as follows:

> RD

(2)Parameter (output)

1 Select the EDIT mode.

2 Select the parameter screen.

Press

DGN

PRM

. The parameter screen, diagnosis screen, and pitch

error compensation screen alternately appear. Select the parameter

screen.

3 Press

WRT

to output the parameters.

During output, “WRT” is displayed as follows:

> WRT

G.5.2.7

Pitch error

compensation
