2. HARDWARE

B–63175EN/03

210

Connector

Projection hole

LCD unit rear viewer

Projection

Backlight

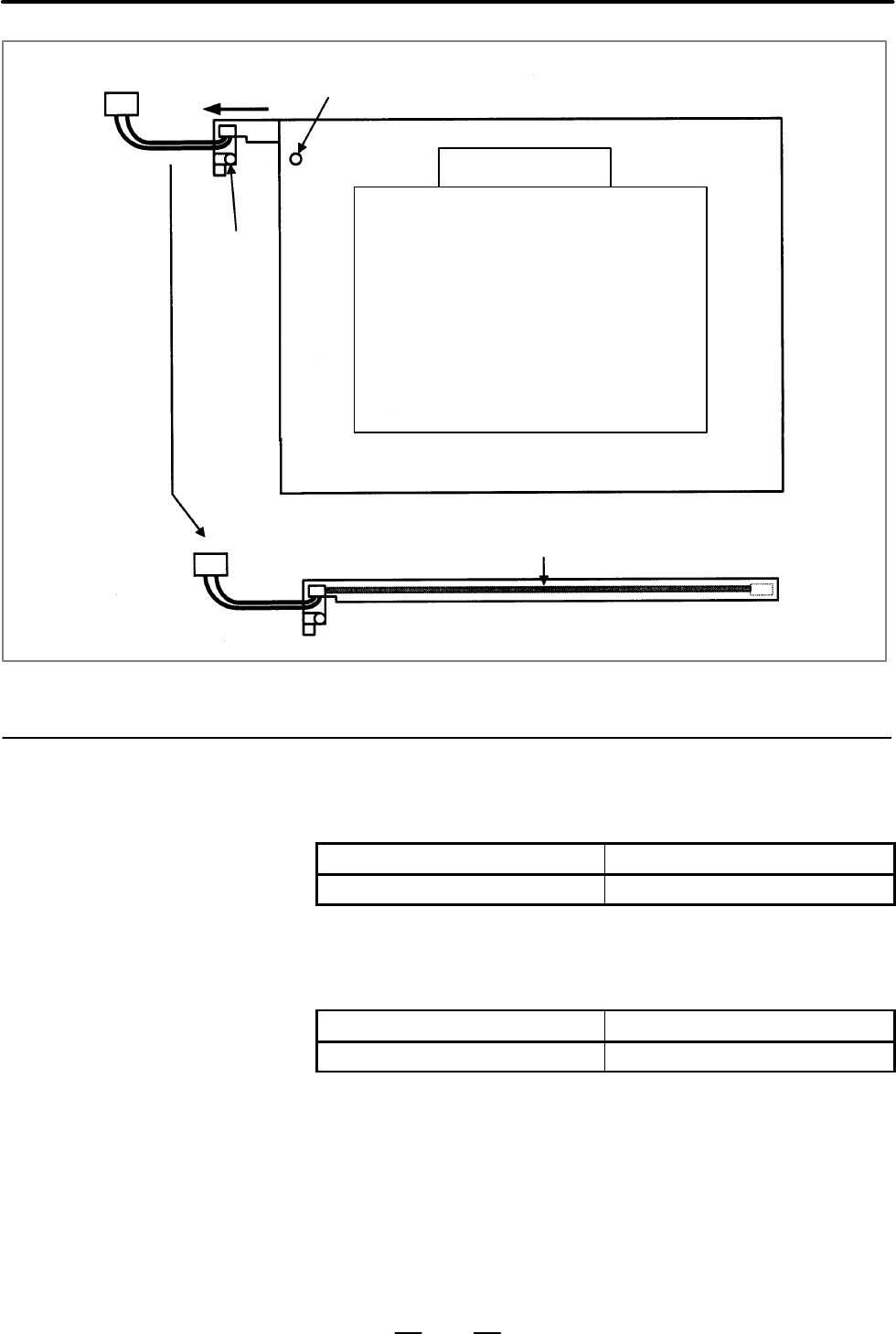

Fig. 2.9.4(b) How to remove the backlight

This subsection applies to the replacement of the backlight of the

monochrome LCD with touch panel.

Table 2.9.5(a) Specification of monochrome LCD with touch panel

Name Specification

Monochrome LCD with touch panel A02B–0259–C211

The 9.5” monochrome LCD backlight for the monochrome LCD with

touch panel can be replaced according to the following procedure.

Table 2.9.5(b) Specification of backlight

Spare part specification Specification of backlight

A02B–0236–K114 A61L–0001–0154#BL

(1)Turn off the power to the monochrome LCD with touch panel, and wait

for a while.

(2)Remove the touch panel flexible cable from the monochrome LCD

with touch panel and the backlight power supply cable connector. If

it is hard to remove them, previously remove the protection plate. (4

nuts)

(3)Remove the ornamental plate. (5 nuts)

(4)Remove the backlight power supply cable.

2.9.5

Replacing the

Backlight of

Monochrome LCD with

Touch Panel
