2. HARDWARE

B–63175EN/03

206

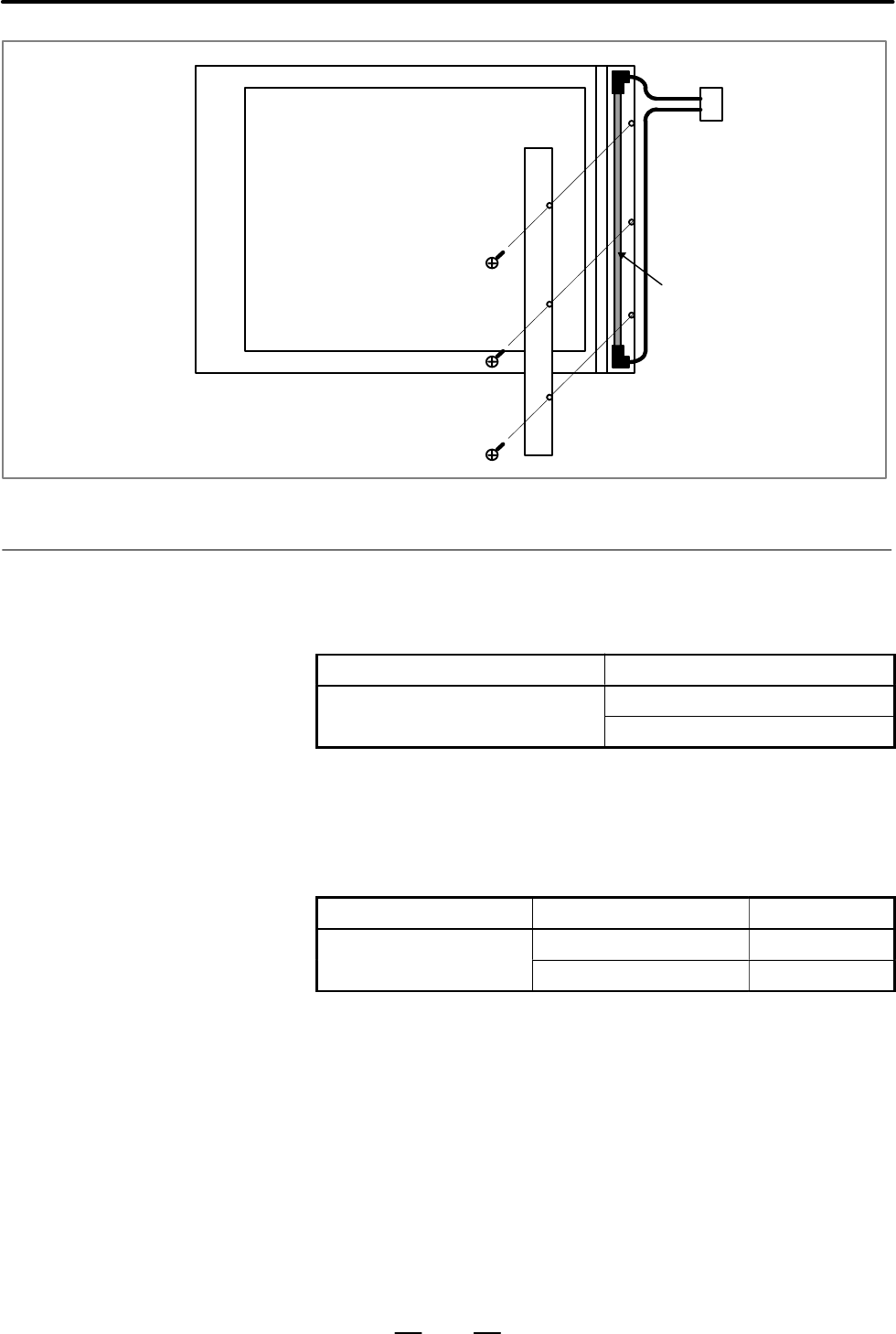

Connector

Display surface of LCD unit

Backlight

Fig. 2.9.1 (c) For the backlight manufactured by Sharp

This subsection applies to the replacement of the detachable LCD/MDI

backlight.

Table 2.9.2(a) Specification of detachable LCD/MDI

Name Specification

Detachable LCD/MDI A02B–0166–C271#R

A02B–0166–C271#S

The 7.2” monochrome LCD for the detachable LCD/MDI is a product of

either Hitachi Ltd. or Sharp Corp. Its backlight differs depending on the

manufacturer. Each type of backlight is provided as a spare part. Select

an appropriate type.

Table 2.9.2(b) Specification of backlight

Spare part specification Specification of backlight Manufacture

A02B–0236–K112 A61L–0001–0142#BL Hitachi

A61L–0001–0142#BLS Sharp

(1) Turn off the power to the detachable LCD/MDI, and wait for a while.

(2) Remove the 8 screws from the front panel of the detachable

LCD/MDI, and then take out the metal plate on which the LCD and

keyboard are mounted. (Be careful because the metal plate is

connected with main unit with cables.)

(3) Remove the backlight power supply cable. (See Fig. 2.9.2.)

(4) Remove the CRT control printed–circuit board. (4 screws)

(5) Remove the PCR connector and the 10–pin flat cable, which were

under the CRT control printed–circuit board before it was removed.

(6) Remove the 6 ornamental plate fastening screws. (See Fig. 2.9.2.)

(7) Remove the ornamental plate to expose the front surface of the LCD.

2.9.2

Replacing the

Backlight of

Detachable LCD/MDI
