1. DISPLAY AND OPERATION

B–63175EN/03

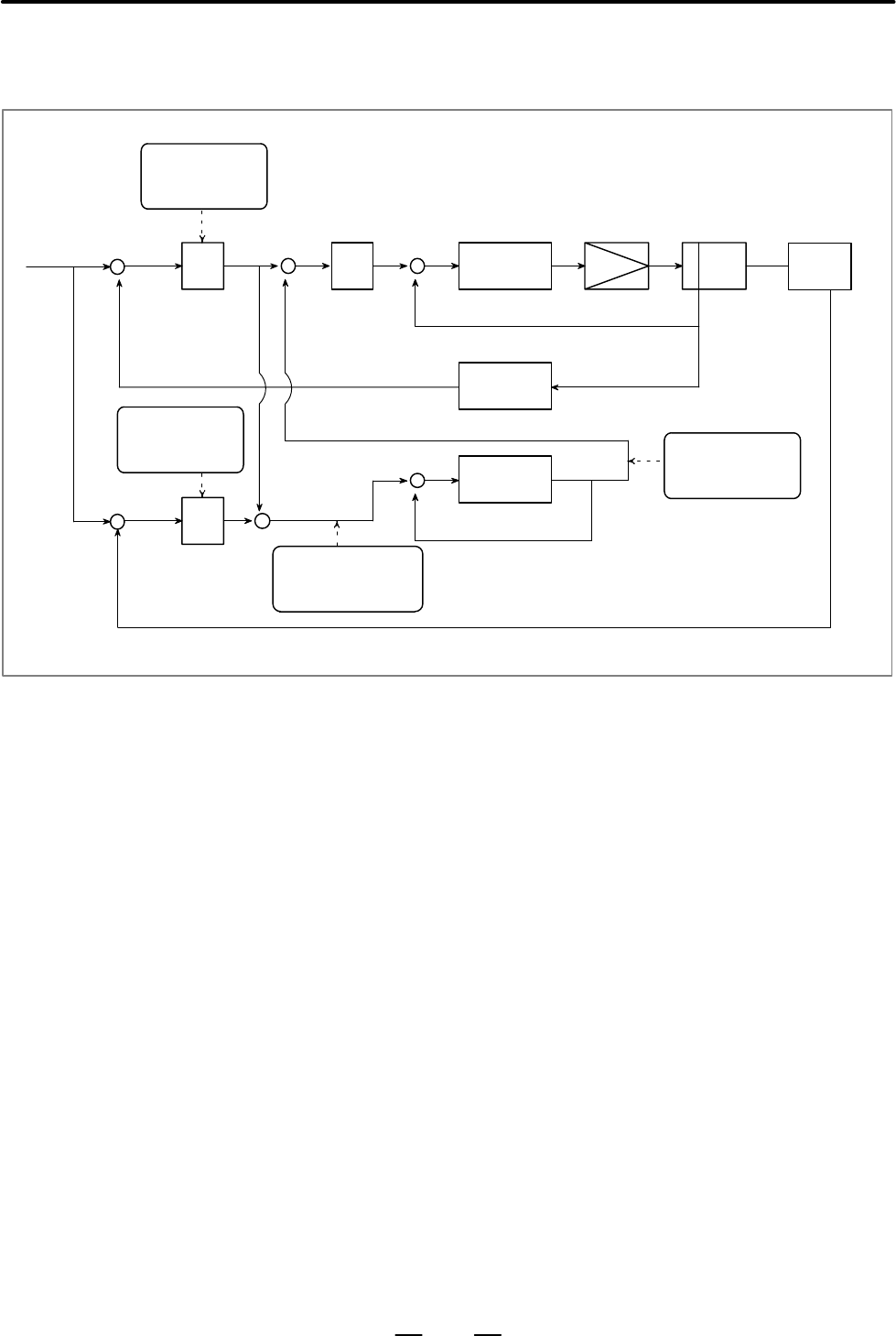

The data items displayed on the diagnosis screen are obtained at the

following positions:

Semi–closed loop

error (No. 551)

S Kp

Speed

control

Machine

Conversion

coefficients

Time

constant

Closed loop error

(No. 550)

Error between semi–

closed and closed

loops (No. 552)

Amount of dual

position compensa-

tion (No. 553)

Motor

Servo amplifier

(Parameters No. 2078 and 2079)

(Parameter No. 2080)

Command

The system configuration screen and the state display etc. are not prepared

on the DPL/MDI. Therefor, see the following diagnostic number. The

following diagnostic number cannot be displayed on CRT/MDI or Handy

operator panel.

The list of diagnostic number added for DPL/MDI.

Diagnostic No. Unit

800 Relative coordinates Least input increment

801 Skip position Least input increment

802 Remaining travel (Least input increment)/2

803 Acceleration/deceleration Least input increment

accumulation

804 Ending position of previous block (Least input increment)/2

810 Number of program being executed

811 Number of sequence being executed

820 Group 01 G–code

821 Group 02 G–code

822 Group 03 G–code

823 Group 05 G–code

824 Group 06 G–code

825 Group 08 G–code

826 Group 09 G–code

827 Group 10 G–code

Display contents

(DPL/MDI)
