01 00.07.05 First issue.
16i/18i/160i/180i-MA OPERATOR'S MANUAL
Replacement of “15.7 PROCESSING MACRO
STATEMENTS” explanation
B-63014EN/02-2

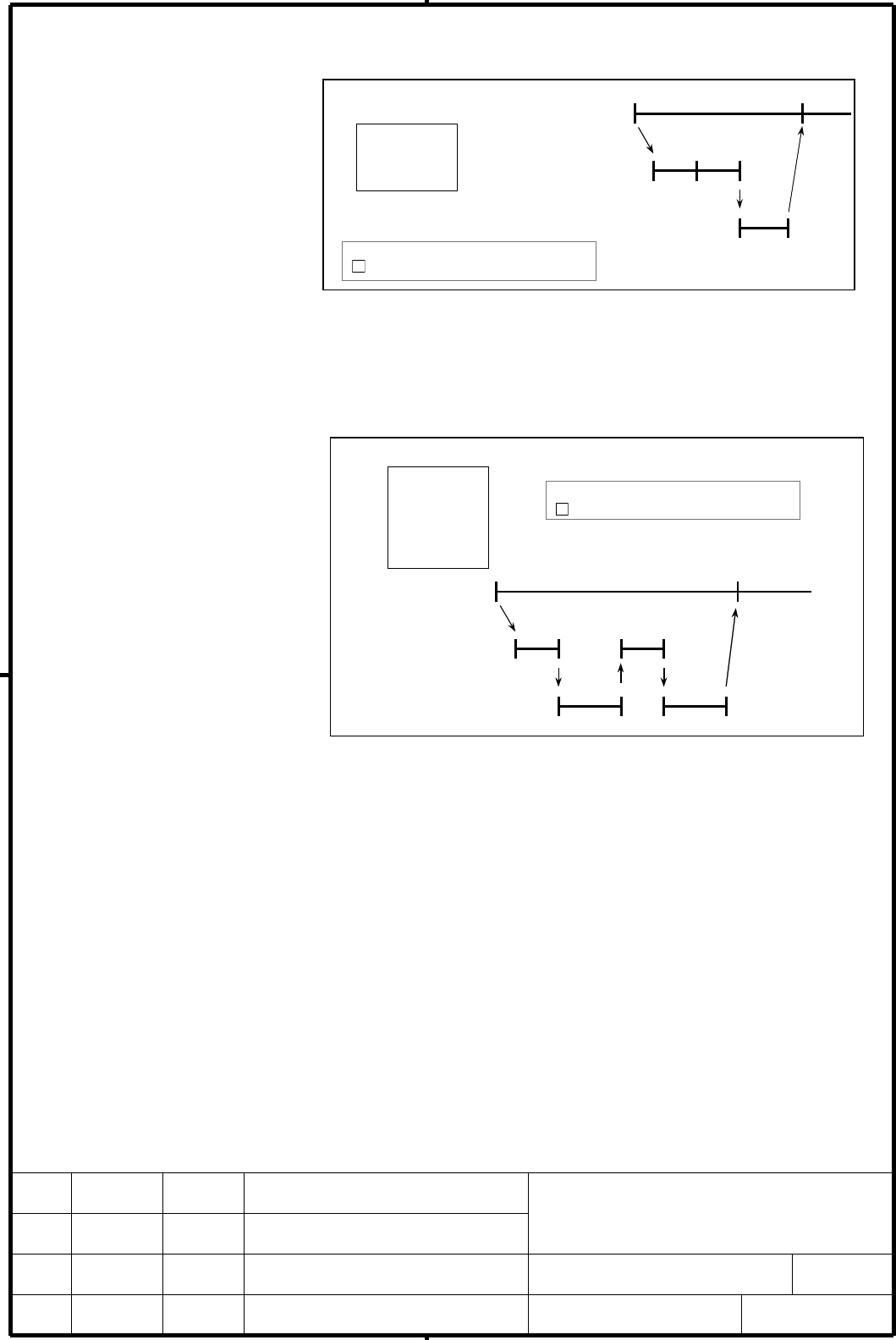

When N1 is being executed, the next NC statement (N4) is read into the
buffer.
The macro statements (N2, N3) between N1 and N4 are processed during
execution of N1.
When N1 is being executed, the NC statements in the next two blocks (up to
N5) are read into the buffer. The macro statements (N2, N4) between N1 and
N5 are processed during execution of N1.
Buffering the next block in
other than cutter
compensation mode (G41,
G42) (normally prereading
one block)
N1
N2
N3
N4
N4
> N1 X100.0 ;
> : Block being executed
: Block read into the buffer
NC statement execution
Macro statement execution
Buffer
N2 #1=100 ;
N3 #2=200 ;
N4 Y200.0 ;
Buffering the next block in
cutter compensation mode
(G41, G42)
> N1 G01 G41 G91 X50.0 Y30.0 F100 Dd ;
> : Block being executed
: Blocks read into the buffe
r
NC statement execution
Macro statement execution
Buffer
N1
N2
N3
N2 #1=100 ;
N3 Y100.0 ;
N4 #2=200 ;
N5 Y50.0 ;
:
N4
N3
N5
