Series 16i/18i/160i/180i/160is/180is - MA Operators manual Page 1077

Operators manual

Page of 1111

/ 1111

- Cases in which optimum torque acceleration/deceleration is disabled

In case that optimum torque acceleration/deceleration is disabled, acceleration/deceleration

for rapid traverse will be after-interpolation acceleration/deceleration or before interpolation

acceleration/deceleration.

When the command having the following restriction is commanded, optimum torque

acceleration/deceleration is disabled.

(Restriction)

Optimum torque acceleration/deceleration is disabled at the command with the restriction “AI

high precision contour control mode or the AI nano high precision contour control mode is

automatically canceled once and the buffering is inhibited” which is mentioned in the

specification manual for AI high precision contour control mode or the AI NANO high

precision contour control.

For example, during the following commands which includes the M,S,T,B code, optimum

torque acceleration/deceleration is disabled;

1. G00X100.M13; (G00 with M code)

2. G00X100.S1000; (G00 with S code)

3. G00X100.T01; (G00 with T code)

4. G00X100.B20; (G00 with B code)

- Setting acceleration pattern data

cceleration

eed

FbFa

Acceleration pattern

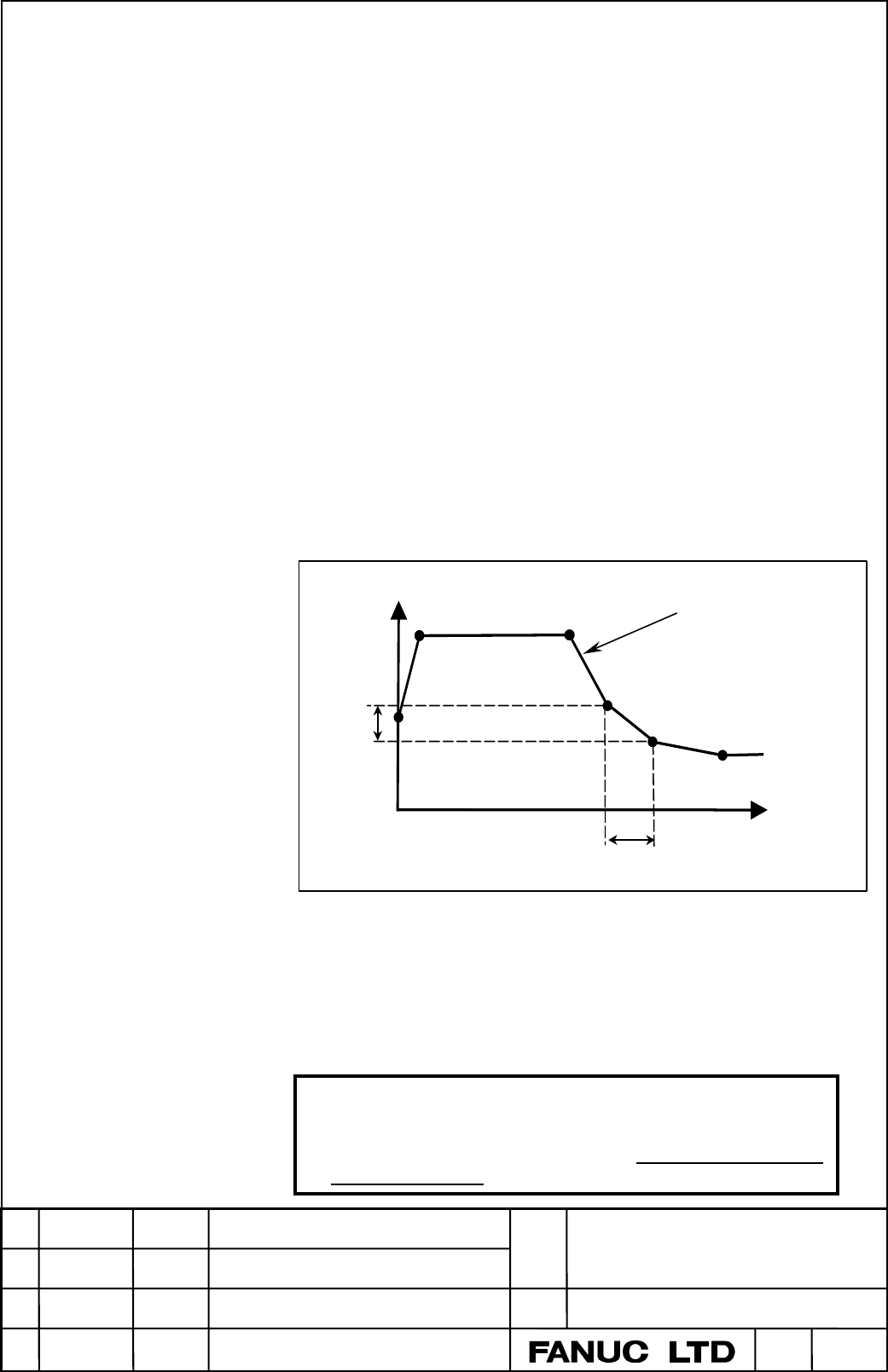

Fig. (c) setting acceleration pattern

Set the speed and the acceleration at each of the acceleration setting points P0 to P5 for each

condition, plus movement and acceleration, plus movement and deceleration, minus

movement and acceleration, minus movement and deceleration, and for each axis.

The line joining the acceleration setting points is regarded a acceleration pattern.

CAUTION

As acceleration pattern, it is not desirable that acceleration

immediately has a large value at the Speed 0, for a shock

may occur on a machine. Therefore, a small value must be

set at the Speed 0, as expressed in the above figure.

4/15

PAGEEDT.

DATE

DESIGN

DESCRIPTION

TITLE

No.

FANUC Series 16i/18i/160i/180i/160is/180is-MA

OPERATOR’S MANUAL

Concerning the addition of

Optimum Torque acceleration/deceleration

B-63014EN/02-9

01 02.07.29 Newly Registered
