11. SETTING AND DISPLAYING DATA

877

In general, the tool length offset value can be defined in either of the

following two ways. Both methods are based on the same concept: The

difference between the tip position of the tool and that of a reference tool

is used as the tool offset.

(1)Definition 1

The first method involves using the actual tool length as the tool length

offset. In this case, the reference tool is an imaginary tool which has

its tip at the machine zero point when the machine is positioned to the

Z–axis machine zero point. The difference between the tip position of

the tool to be measured and that of the reference tool, that is, the

distance along the Z–axis from the machine zero point to the tip of the

tool when the machine is positioned to the Z–axis machine zero point,

is defined as the tool length offset.

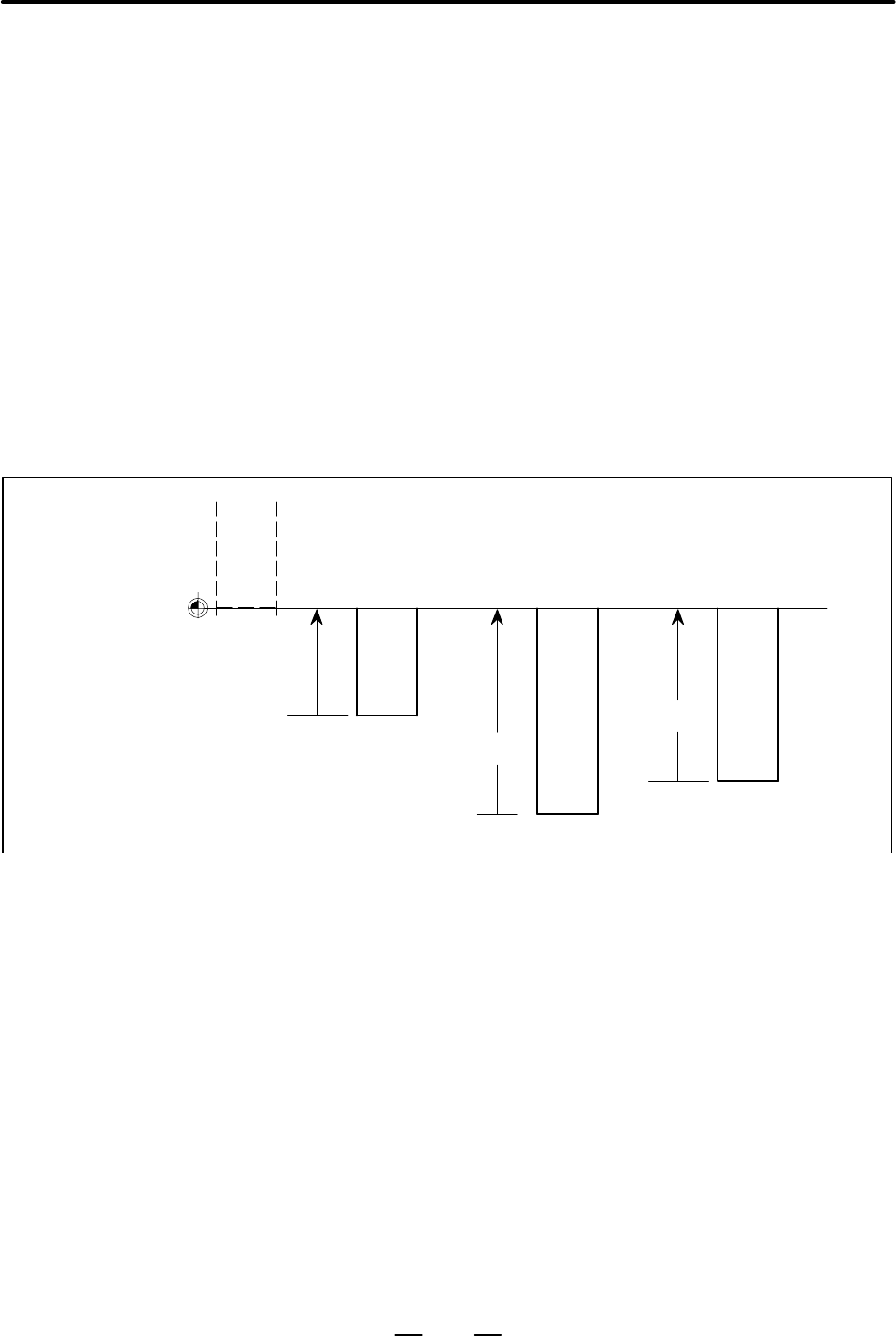

Tool

T02

Tool

T03

Refer-

ence

tool

(Reference tool

tip position)

Tool

T01

Machine zero

point

OFSL03

OFSL02

OFSL01 : Tool length offset for tool T01

OFSL02 : Tool length offset for tool T02

OFSL03 : Tool length offset for tool T03

OFSL01

Also, with this function, the tool is manually moved by means of jog

feed until its tip touches the top surface of the workpiece or reference

block. This surface is called the measurement surface. Assume that

the top surface of the machines table is set as the measurement surface,

although this is actually not allowed because the machine would be

damaged. In such a case, distance L from the machine zero point to

the machine table top surface is specific to that machine. Set distance

L in a parameter (No. 5022). Assume Zt to be the machine coordinate

of the tool at the position where it would touch the machine table top

surface if that surface were set as the measurement surface. The tool

length offset (OFSL) can then be easily calculated from L and Zt.

Because the machine table top surface cannot actually be used as the

measurement surface, however, that surface is defined as the base

measurement surface and the distance from the base measurement

surface to the actual measurement surface, that is, the height of the

workpiece or reference block (Hm) must be set. The tool length offset

value (OFSL) can thus be obtained from the formula shown below.

Explanations

D Definition of tool length

offset value
