Profibus DP-Board for Operators manual Page 106

Operators manual
B.EXAMPLE OF SETTING SUPPLEMENT B-63994EN/02
- 98 -

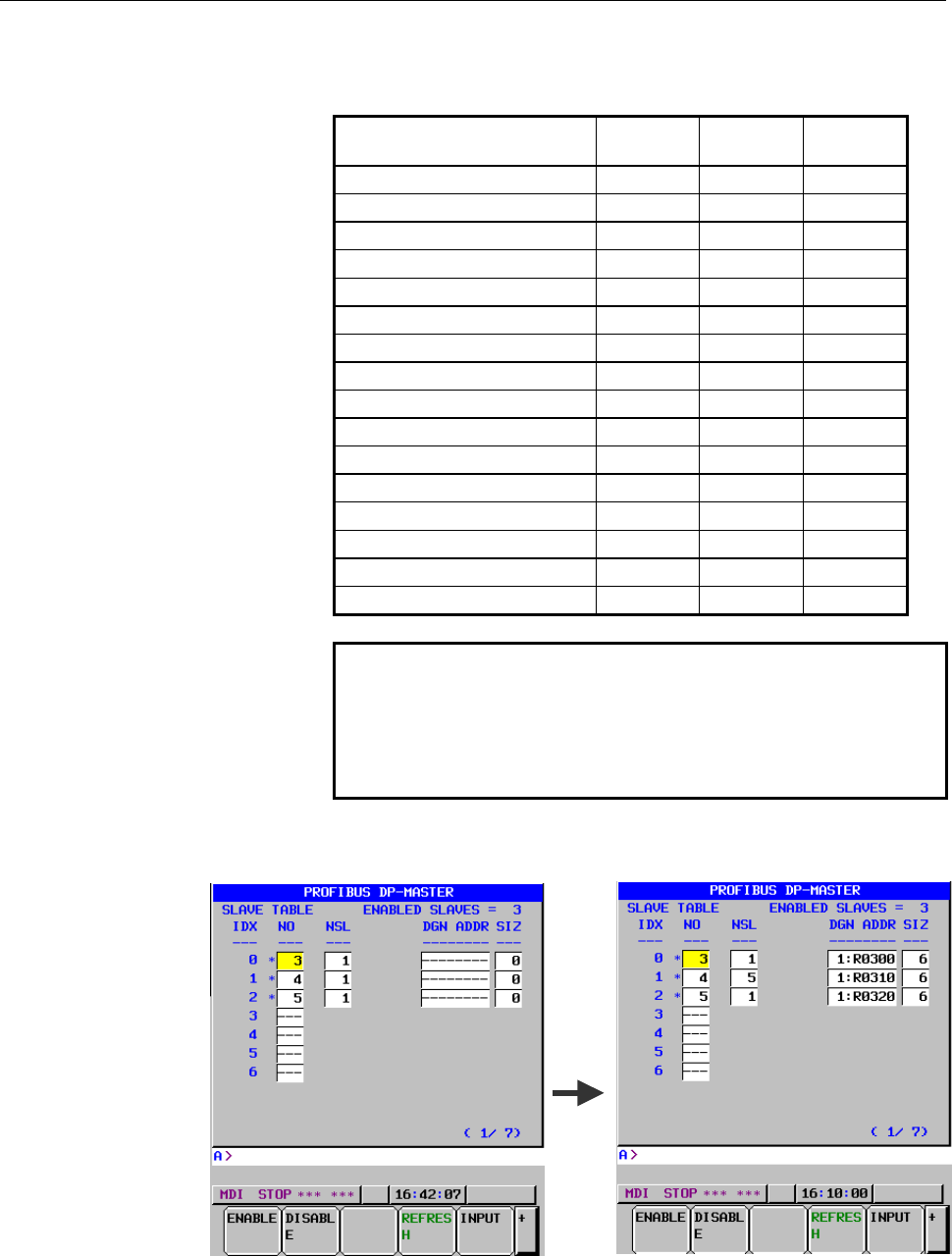

(2) By downloading, each slave parameter of Slave #3,#4 and #5
will be configured as follows.
Slave parameter Slave
#3
Slave
#4
Slave
#5
(1) STATION NO. 3 4 5
(2) IDENT NO 00A1 B754 B754
(3) SLAVE TYPE 0 0 0
(4) WD FACT1 25 25 25
(5) WD FACT2 1 1 1
(6) MIN TSDR 11 11 11
(7) SLAVE FLAG(ACT) 1 1 1
(8) SLAVE FLAG(NPR) 1 1 1
(9) ST.STATUS(LOC) 1 1 1
(10)ST.STATUS(UNL) 0 0 0
(11)ST.STATUS(SYN) 0 0 0
(12)ST.STATUS(FRZ) 0 0 0
(13)ST.STATUS(WD) 1 1 1
(14)GROUP IDENT 0 0 0
(15)USER PRM DATA - (Remark) (Remark)
(16)SLAVE USER DATA - - -
NOTE
Length = 34
Values = 00 00 00 00 00 00 00 02 00 CB 43
00 00 00 01 00 00 00 00 80 21 00
21 01 00 21 01 00 21 02 00 21 02
00
(3) Please configure the number of slots, PMC address and size of
Diagnostic data into SLAVE TABLE screen.
Settings on SLAVE TABLE screen
