Profibus DP-Board for Operators manual Page 32

Operators manual
1.PROFIBUS-DP MASTER FUNCTIONS SETTING B-63994EN/02
- 24 -
MODULE DATA screen
Procedure
1 Press soft key [MODULE DATA] to display the MODULE
DATA screen.
2 On the module data screen for each slot, page keys
PAGE
PAGE
can be used to switch between slots.
3 Set the size for LENGTH and then enter data.

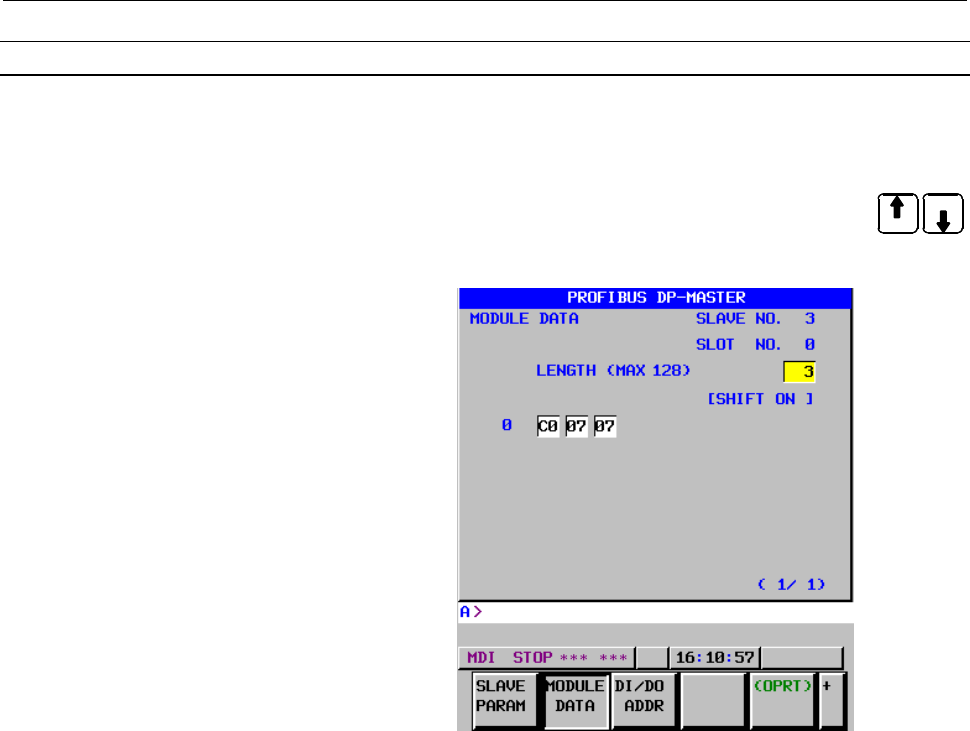

MODULE DATA screen
4 Press soft key [(OPRT)] as needed and then use the following
soft keys.
[PREVI SLAVE], [NEXT.SLAVE] :
Pressing soft key [PREVI SLAVE] moves the cursor to the
first slot of the previous slave station. Pressing [NEXT
SLAVE] moves the cursor to the first slot of the next slave
station. Pressing soft key [PREVI SLAVE] or [NEXT
SLAVE] after entering a station number moves the cursor to
the first slot of the specified station number.
[PREVI SLOT], [NEXT SLOT] :
Pressing soft key [PREVI SLOT] moves to the previous slot.
Pressing soft key [NEXT SLOT] moves to the next slot.
Pressing soft key [PREVI SLOT] or [NEXT SLOT] after
entering a slot number moves to the specified slot.
[ SHIFT ] :
Pressing soft key [SHIFT] switches the value between ON
and OFF. Normally select ON.
