Profibus DP-Board for Operators manual Page 52

Operators manual
2.PROFIBUS-DP SLAVE FUNCTIONS SETTING B-63994EN/02
- 44 -

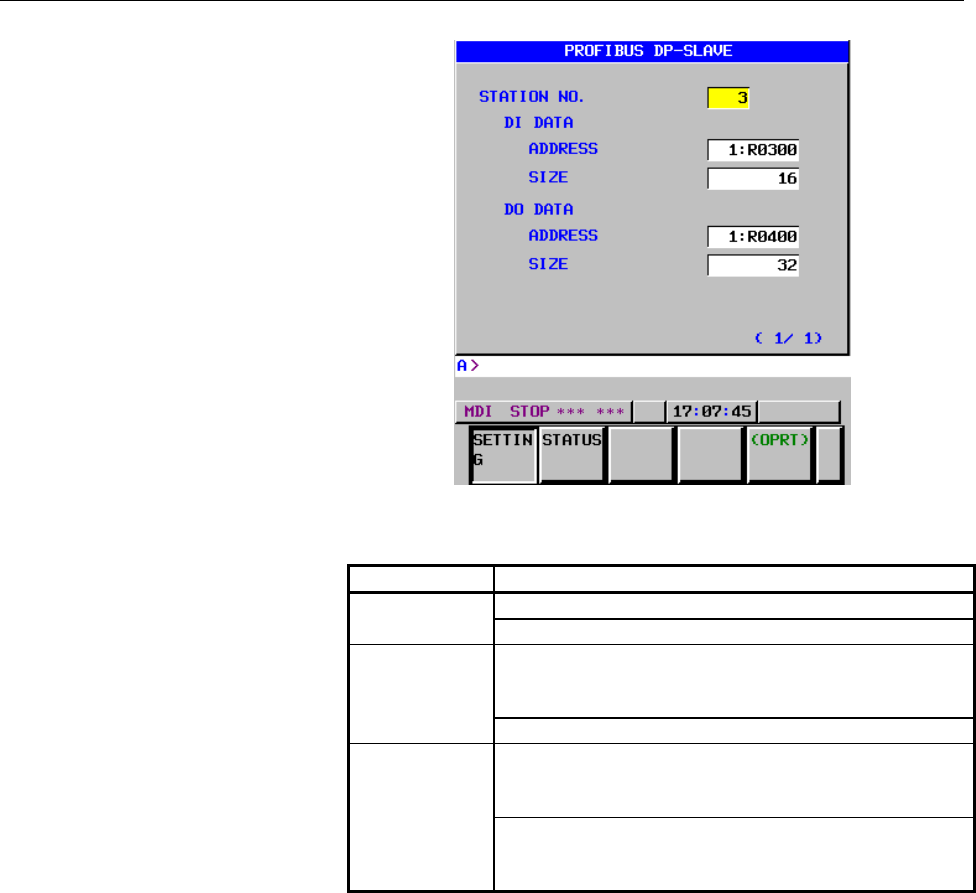

SLAVE FUNCTION SETTING screen
Setting item
Item Description
Station number of this slave device STATION NO.
Setting range : 0 to 125
Set the start addresses of DI data and DO data.
"DI" and "DO" represent input and output, respectively, as
viewed from the slave station.
DI / DO DATA
ADDRESS
Setting range : See CAUTION below.
Set the sizes of DI data and DO data.
"DI" and "DO" represent input and output, respectively, as
viewed from the slave station.
DI / DO DATA
SIZE
Setting range : 0 to 244 (bytes)
(The total of DI/DO sizes must not exceed
244 bytes.)
