Profibus DP-Board for Operators manual Page 96

Operators manual
A.SETTING BY USING A PERSONAL COMPUTER SUPPLEMENT B-63994EN/02
- 88 -
NOTE
On Screen A-9, there are an item for setting
Configuration Data on the Modules tab and an item
for setting User Param Data on the Settings tab.
Note that there is the following restriction on setting
of these two parameters for a FANUC master
station:
configuration-data-length + user-param-data-length
≤ 204 bytes
These parameter lengths are described in the GSD
file for each slave station. See the GSD file.

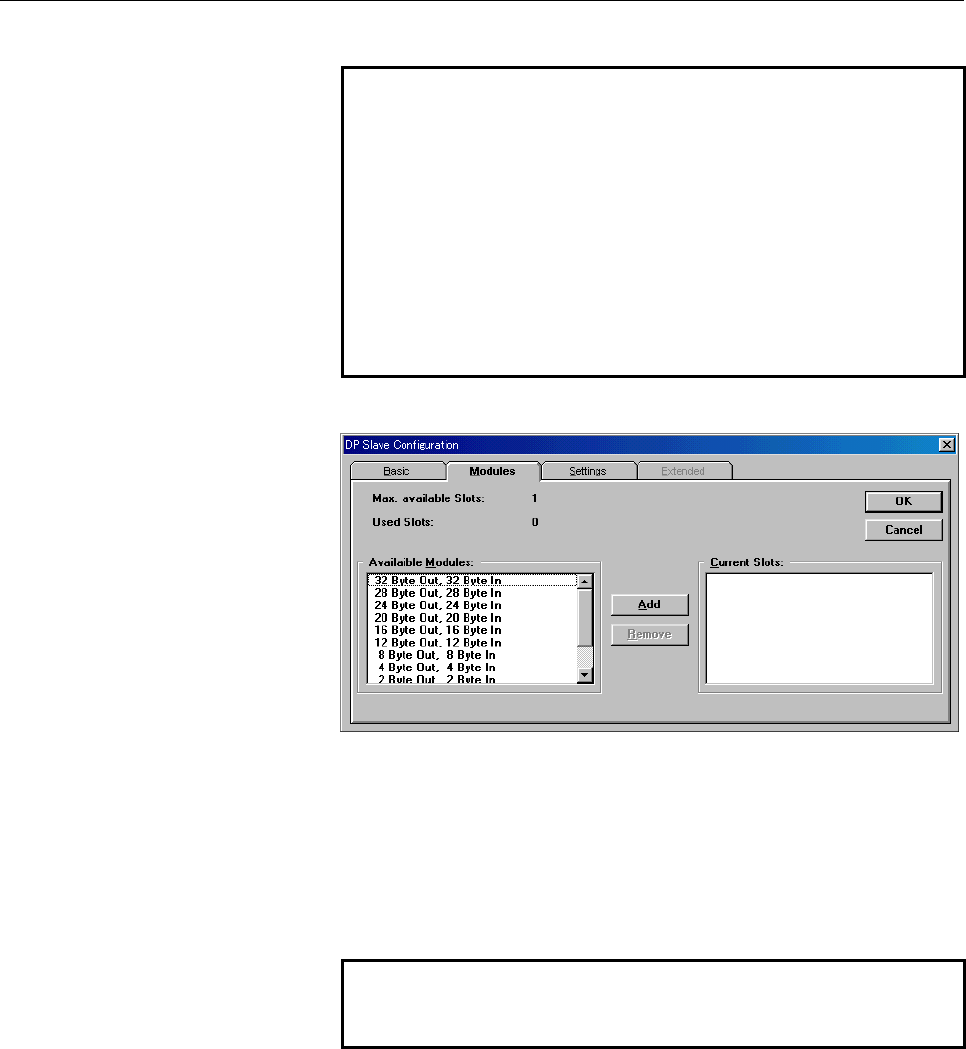

(6) Select the Modules tab on Screen A-9. Screen C-10 is displayed.
Screen A-10
On this screen, select a module name from Available Modules
and click Add. The selected module is added to Current Slots.
This parameter is equivalent to slave parameter CONFIG DATA
for a FANUC master station.
The format for the FANUC slave stations is used for the module
names in Available Modules on Screen A-10.
NOTE
For a FANUC slave station, set only one item for
Current Slots.
