Profibus DP-Board for Operators manual Page 29

Operators manual
B-63994EN/02 SETTING 1.PROFIBUS-DP MASTER FUNCTIONS
- 21 -

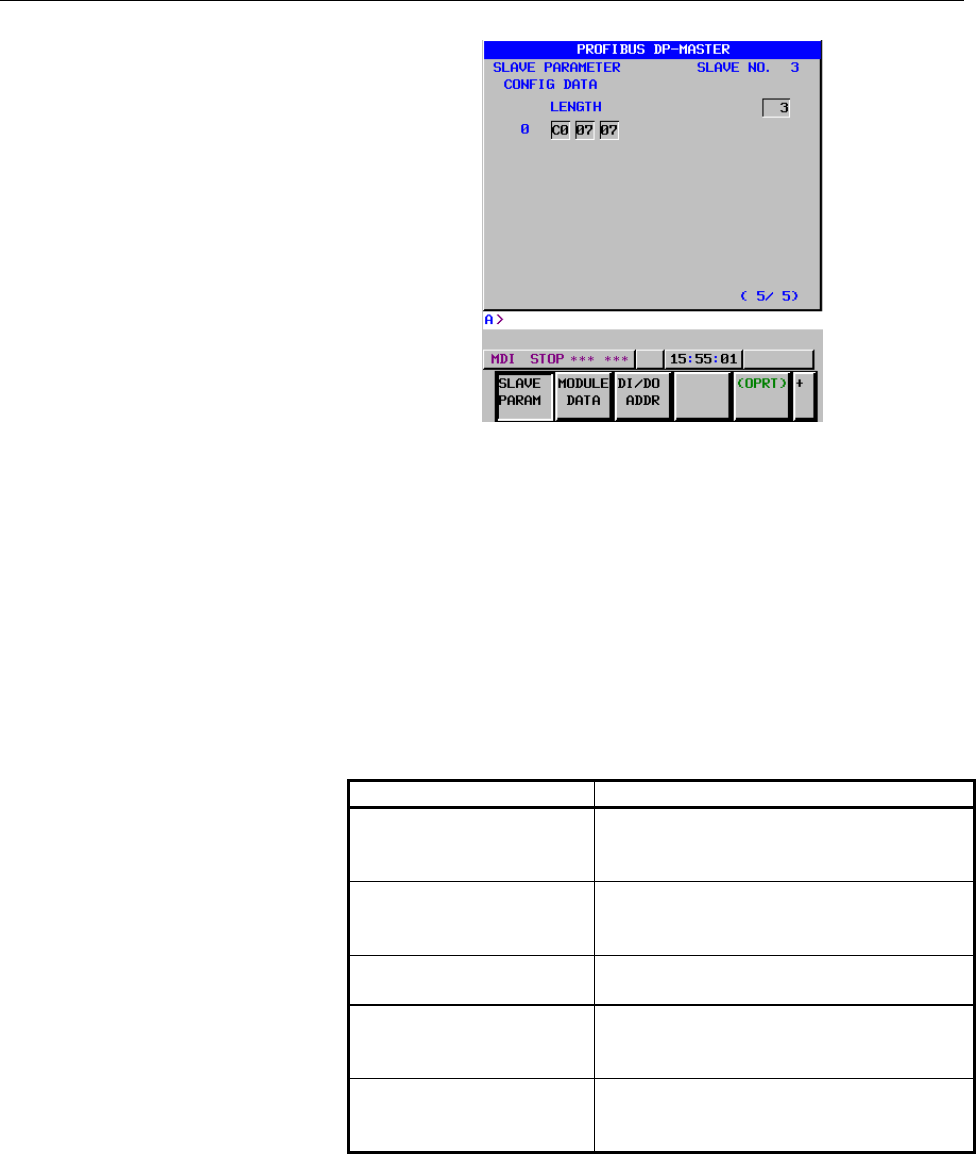

SLAVE PARAMETER screen
(CONFIG DATA)
4 Use the following soft keys as needed.
[PREVI SLAVE], [NEXT SLAVE] :
Moves to the next or previous slave station. Pressing soft
key [PREVI SLAVE] or [NEXT SLAVE] after entering a
station number moves to the specified station number.
[ INITIALIZE ] :
Performs initialization according to the FANUC CNC slave
station.
Display item
Item Description
SLAVE NO. Station number of the partner slave device
The value entered on the slave table screen
is indicated.
IDENT NO. Identification number of a slave station
Specify the identification number of a slave
station to connect to.
SLAVE TYPE Manufacturer-specified type indication for a
slave station
WD FACT1, WD FACT2 Factor used to determine the time for broken
wire detection
10×WD_FACT1×WD_FACT2 (Unit: ms)
MIN TSDR Minimum time that elapses a response to the
master station (this master device) is
returned (Unit: Bit time)
