Profibus DP-Board for Operators manual Page 35

Operators manual
B-63994EN/02 SETTING 1.PROFIBUS-DP MASTER FUNCTIONS
- 27 -

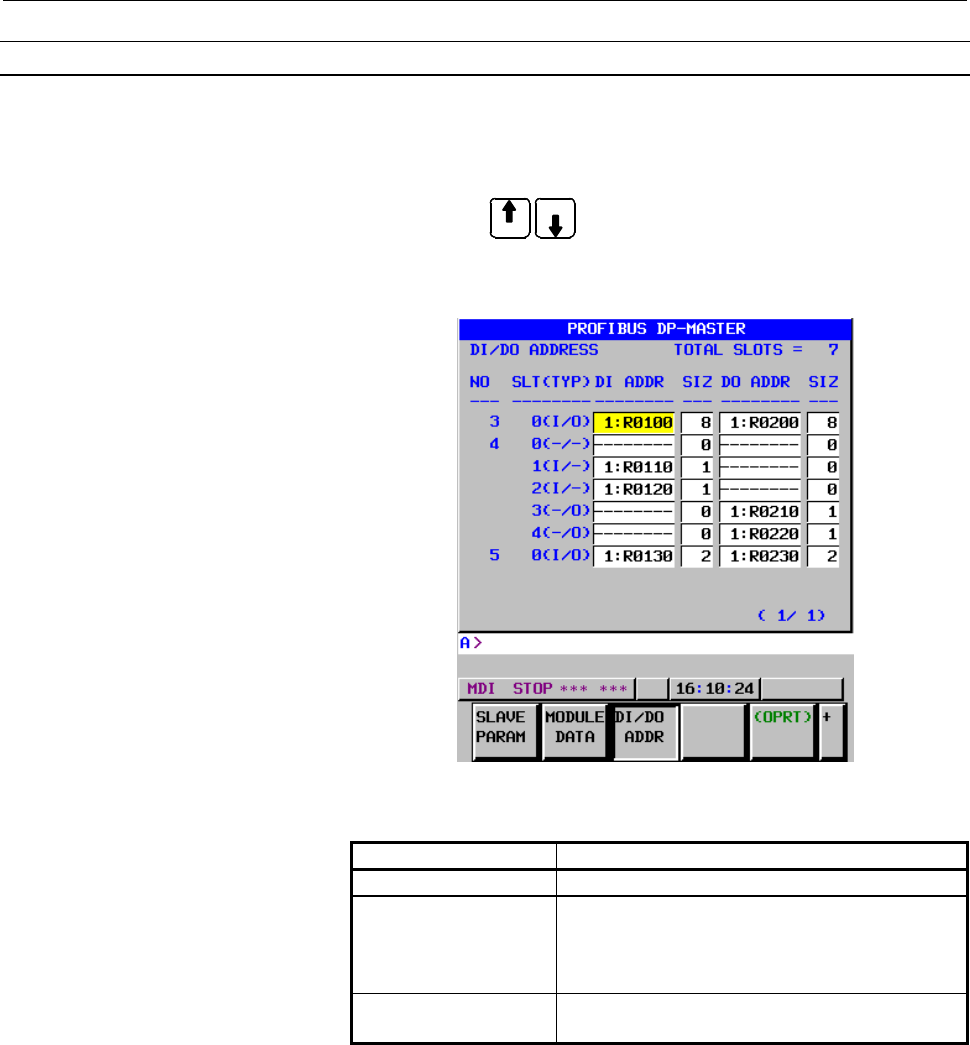

DI/DO ADDRESS screen
Procedure
1 Press soft key [DI/DO ADDR] to display the DI/DO ADDRESS
screen.
2 Page keys
PAGE
PAGE
can be used to switch between pages.
3 Make sure the SLT (TYP) value for each slot is correct.
4 Set the DI/DO addresses (DI ADDR and DO ADDR) and the
sizes (DI SIZ and DO SIZ) for each slot.
DI/DO ADDRESS screen
Display item
Item Description
NO Station number of a slave station
SLT(TYP) The slot number and the type of the specified
module is indicated.
The status of the module is displayed based on
the module data set on the module data screen.
TOTAL SLOTS Total number of slots including those for all
slaves currently set (up to 128)
5 Check the SLT (TYP) indication is one of the following normal
states (a) to (e).
When the indication is (f) or (g), set correct module data again.
Description of SLT (TYP)
(a) “- - -” : "---": No module
(Same as when MODULE LENGTH = 0)
(b) “I / -” : Input module
(c) “- / O” : Output module
(d) “I / O” : Input/output module
