  2. Sauter-Turret with 2nd Geometry Tool Offset Data Function for 16i-TB, 18i-TB, 21i-TB

Sauter-Turret with 2nd Geometry Tool Offset Data Function for 16i-TB, 18i-TB, 21i-TB Additional Manual Page 25

Additional Manual
GE Fanuc Automation
Version: 20
GFTE-557E-EN
4.3. Start of Tool Measurement

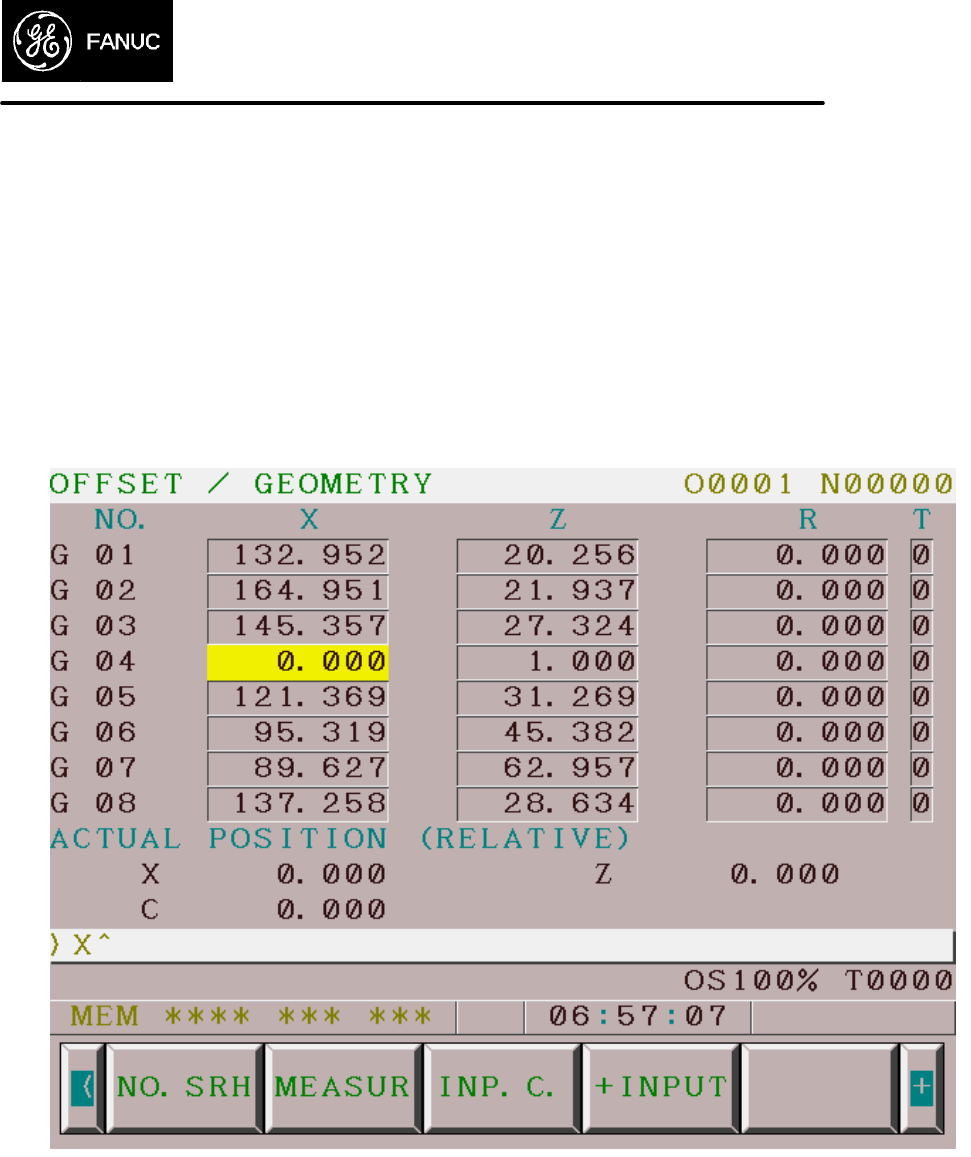

With the input of the X-key for X-axis the measurement procedure is started with setting the tool geometry
offset value of the measured tool to “0”.
The input procedure for the measurement offset is the same as the procedure without the application
program.
In case the tool, the screen will be leaved or the control will be turned off by the operator, the original value
of the previous selected tool will be restored.
The application program is waiting for the pressed soft-key “MEASUR” or one of the correct axis probe
touch signal (MC+X, MC-X, MC+Z, MC-Z).
The actual situation can be normal interrupted with the RESET-Key by the operator at any time and the
original tool geometry value will be restored.
——————————————————————————————————————
Sauter-Turret and
2
nd
Geometry Tool Data
6.0
28
th
January 2003
