16i/160i/160is/18i/180i/180is/21i/210i/210is-Model B for SD7 Operation and maintenance handbook Page 140

Operation and maintenance handbook

Page of 988

/ 988

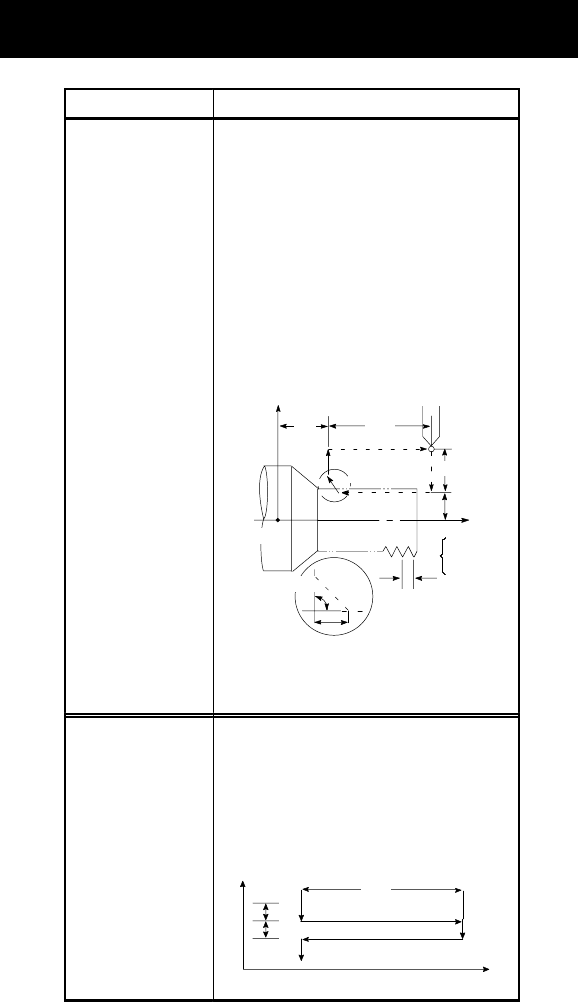

4. PROGRAM FORMAT

107

Function Explanation

Canned cycle for lathes

(G70 to G76)

(G90, G92, G94)

Canned cycle

G90: Outer diameter/internal diameter cutting

cycle

G92: Thread cutting cycle

G94: End face turning cycle

Multiple repetitive cycle

G70: Finishing

G71: Stock removal in turning

G72: Stock removal in facing

G73: Pattern repeating

G74: End face peck drilling cycle

G75: Outer diameter/internal diameter drilling

cycle

G76: Multiple thread cutting cycle

(Example) G92

X axis

Z W

Zero point

3(R)

4(R)

3(R)

1(R)

U/2

X/2

Z axis

Approx.

45_,

R Rapid

traverse

F Specified

by F code

(The chamfered angle in

the left figure is 45 degrees or less because of the

delay in the servo system.)

Detailed chamfered thread

Canned cycle for

grinding

(G71 – G74)

G71: Traverse grinding cycle

G72: Traverse direct fixed-dimension grinding

cycle

G73: Oscillation grinding cycle

G74: Oscillation direct fixed-dimension grinding

cycle

(Example) G71

G71A__B__W__U__I__K__H__ ;

(K)

(K)

(I)



(I)



(Dwell)
