10.1 PMC–SB7

630

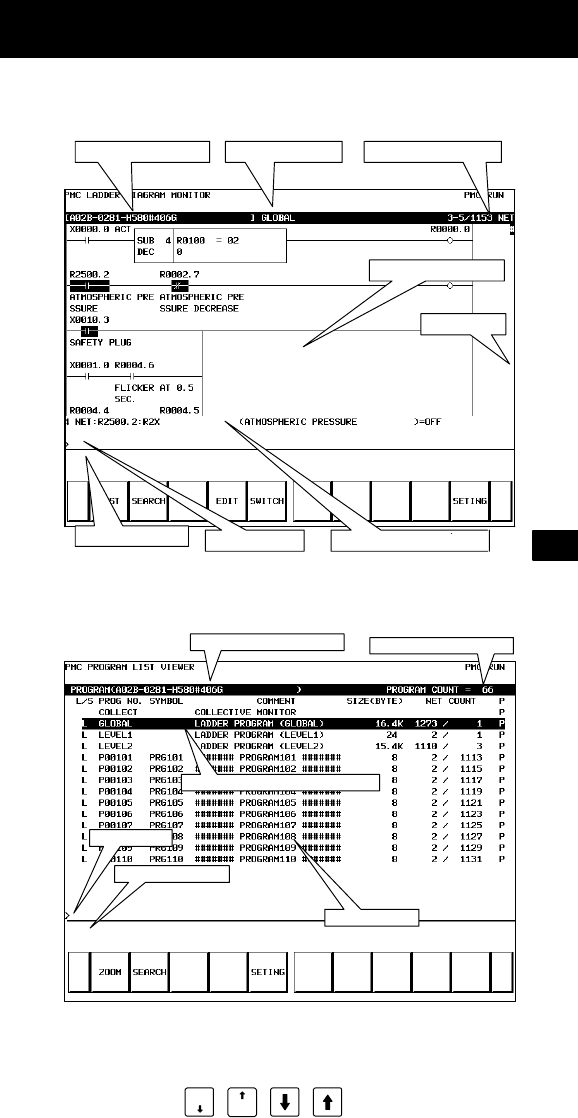

10.1.1.1 Ladder diagram display screen

(1) Screen configuration

Title information (remarks) Display position information

Ladder diagram display area

Additional information display line

Message display line

Display subprogram

Key input line

Display position

(2) Calling the program list display screen [LIST]

The program list display screen allows you to select a subprogram to

be displayed on the ladder diagram display screen.

Title information (details)

Total number of programs

Program subject to manipulation

Key input line

Message display line

List display area

(3) Searching for a signal [SEARCH]

<1> Press the [SEARCH] soft key.

<2> Search for a signal by using the keys indicated below.

D With

PAGE

, the display area can be

changed.
