6.3 Matters Common to Both LCD–Mounted Type and

Stand–Alone Type i Series

248

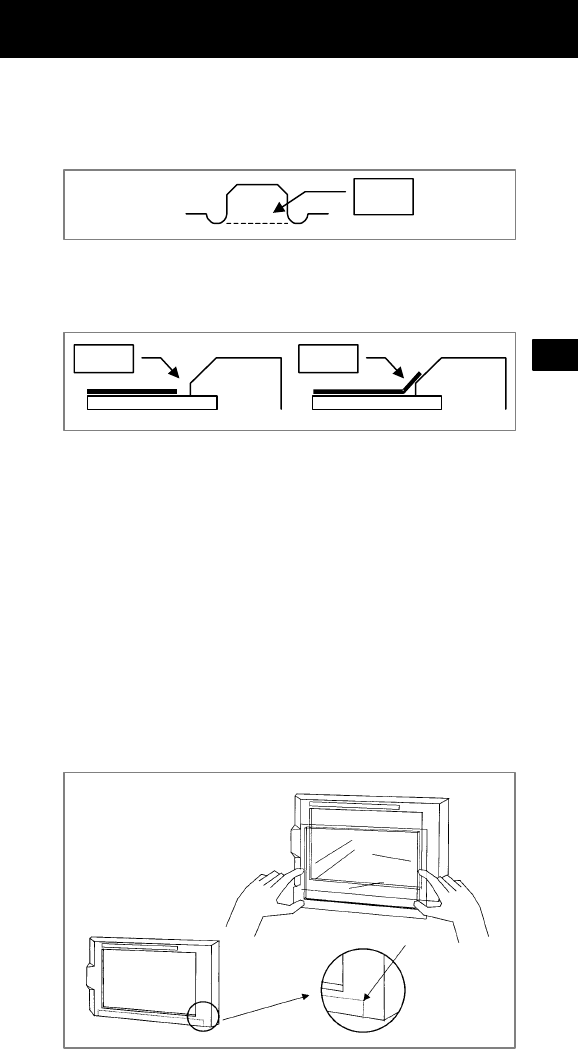

2)Applying the protection sheet

2–1)For A02B–0236–K110

<1> Fold the tab over the front side (the side opposite to the

backing sheet).

Fold

<2> Peel off the backing sheet.

<3> Position the sheet, then attach the upper and lower sides of the

sheet first. Check that the sides of the protection sheet do not

touch the escutcheon.

NGOK

<4> Attach the right and left sides of the protection sheet while

pushing out air between the touch panel and protection sheet.

• With part of the protection sheet kept stuck to the touch

panel, do not attempt to correct the position of the

protection sheet by pulling the sheet.

<5> Press the adhesive parts of the four sides, and attach the

entire sheet completely.

• Check that the four corners and four sides of the

protection sheet do not float.

2–2)For A02B–0236–K130

<1> Peel off the white film attached on the back (facing the LCD)

of the new protection sheet.

<2> Attach the protection sheet so that it is to the lower–left of the

replacement tab. At this time, align the overhang edge at

bottom of the escutcheon with the corresponding part of the

protection sheet. In addition, prevent dust from entering

between the LCD and the protection sheet.

Guide

position

<3> Attach the four sides while pushing out air between the touch

panel and the protection sheet.

• Do not pull the protection sheet to correct its position with

the part of the sheet kept stuck to the touch panel.
