Series 15i/150i - Model A Parameter manual Page 308

Parameter manual
B-63330EN/03 4.DESCRIPTION OF PARAMETERS
- 301 -
6611
Effective angle for internal corner automatic override ( ˘p)
[Input type] Parameter input
[Data type] Real
[Unit of data] degree
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] 2 - 178
When θ≤θp, the corner is assumed to be an inside corner.
When a corner is determined to be an inside corner, the feedrate is
overridden within the distance Le in the block before the corner and
the distance Ls in the next block from the corner intersection.
Le and Ls are set in parameter Nos. 6613 and 6614, respectively.

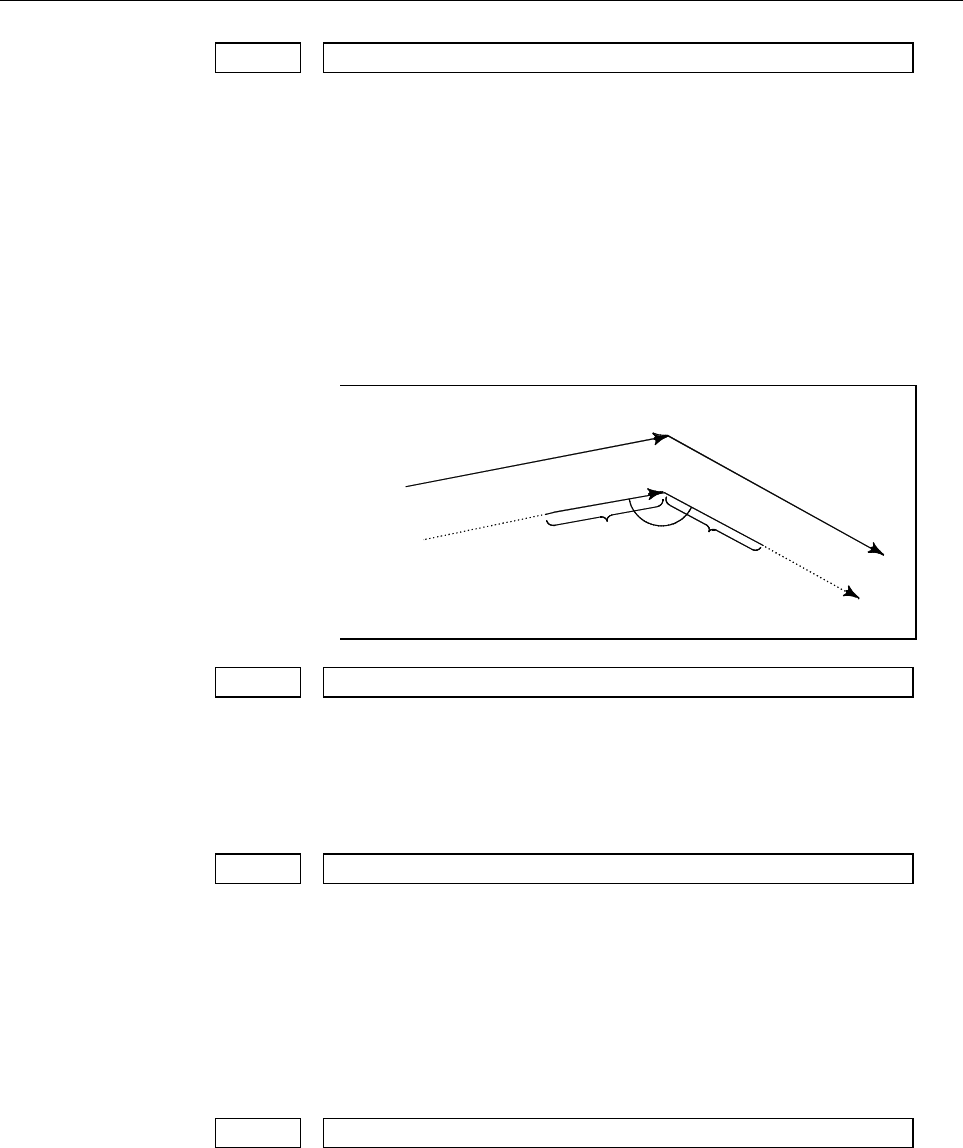

The feedrate is overridden from point a to point b.
Programmed path
Cutter center path
a
Le
Ls
b
θ
6612 Deceleration rate for automatic corner override (COUR)
[Input type] Parameter input
[Data type] Integer
[Unit of data] %
[Valid data range] 1 - 100
6613 Distance for starting automatic override (Le)
[Input type] Setting input
[Data type] Real
[Unit of data] mm, inch (input unit)
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting
table (A) )
(When the increment system is IS-B, -999999.999 - +999999.999)
6614 Distance for ending automatic override (Ls)
[Input type] Setting input
[Data type] Real
[Unit of data] mm, inch (input unit)
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting
table (A) )
(When the increment system is IS-B, -999999.999 - +999999.999)
