Series 20i-MODEL A Parameter manual Page 111

Parameter manual
B–63380EN/02
4. DESCRIPTION OF PARAMETERS
107
3620
Number of the pitch error compensation position for the reference position for
each axis
NOTE
When this parameter is set, the power must be turned off
before operation is continued.
[Data type] Word axis
[Unit of data] Number
[Valid data range] 0 to 1023
Set the number of the pitch error compensation position for the reference
position for each axis.
1
2
3
333231
34 35 36 37
–1
–2
34 35 36 3731 32 33
+3 –1 –1+1+2–1 –3
Reference position
Pitch error compensation value (absolute value)
Compensation number parameter
for the reference position (No.
3620)
Compensation number pa-
rameter for the compensa-
tion point having the largest
value (No. 3622)
Compensation magnification
parameter (No. 3623)
Compensation number parameter
for the compensation point having
the smallest value (No. 3621)
Compensation
position number
Compensation interval
parameter (No. 3624)
Compensation
value to be set

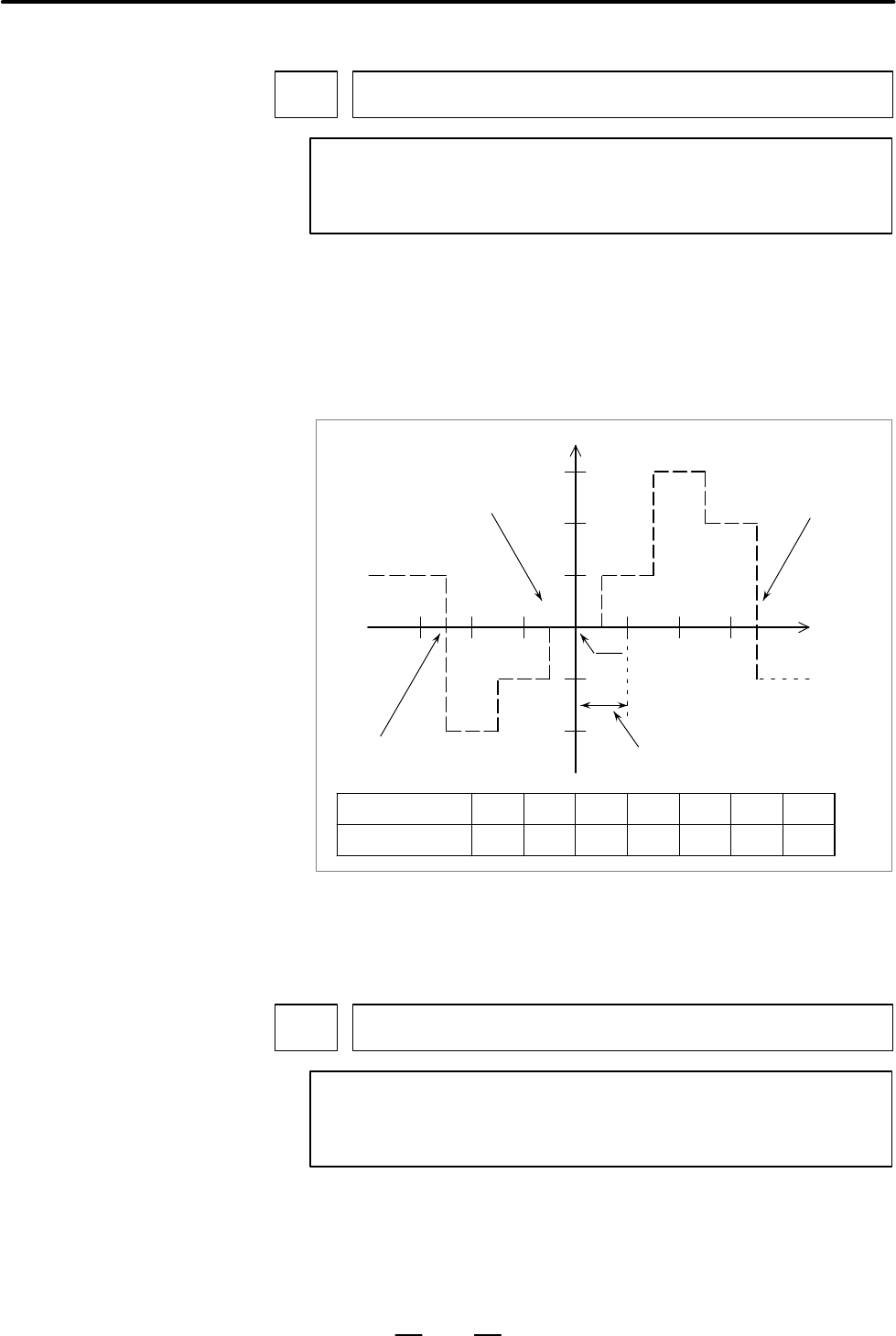

Fig. 4.13 Pitch error compensation position number and value (Example)
In the above example, set 33 as the number of the pitch error
compensation position for the reference position.
3621
Number of the pitch error compensation position at extremely negative position
for each axis
NOTE
When this parameter is set, the power must be turned off
before operation is continued.
[Data type] Word axis
[Unit of data] Number
[Valid data range] 0 to 1023
4.13
PARAMETERS OF
PITCH ERROR
COMPENSATION
