4. DESCRIPTION OF PARAMETERS
35
[Valid data range] –99999999 to 99999999

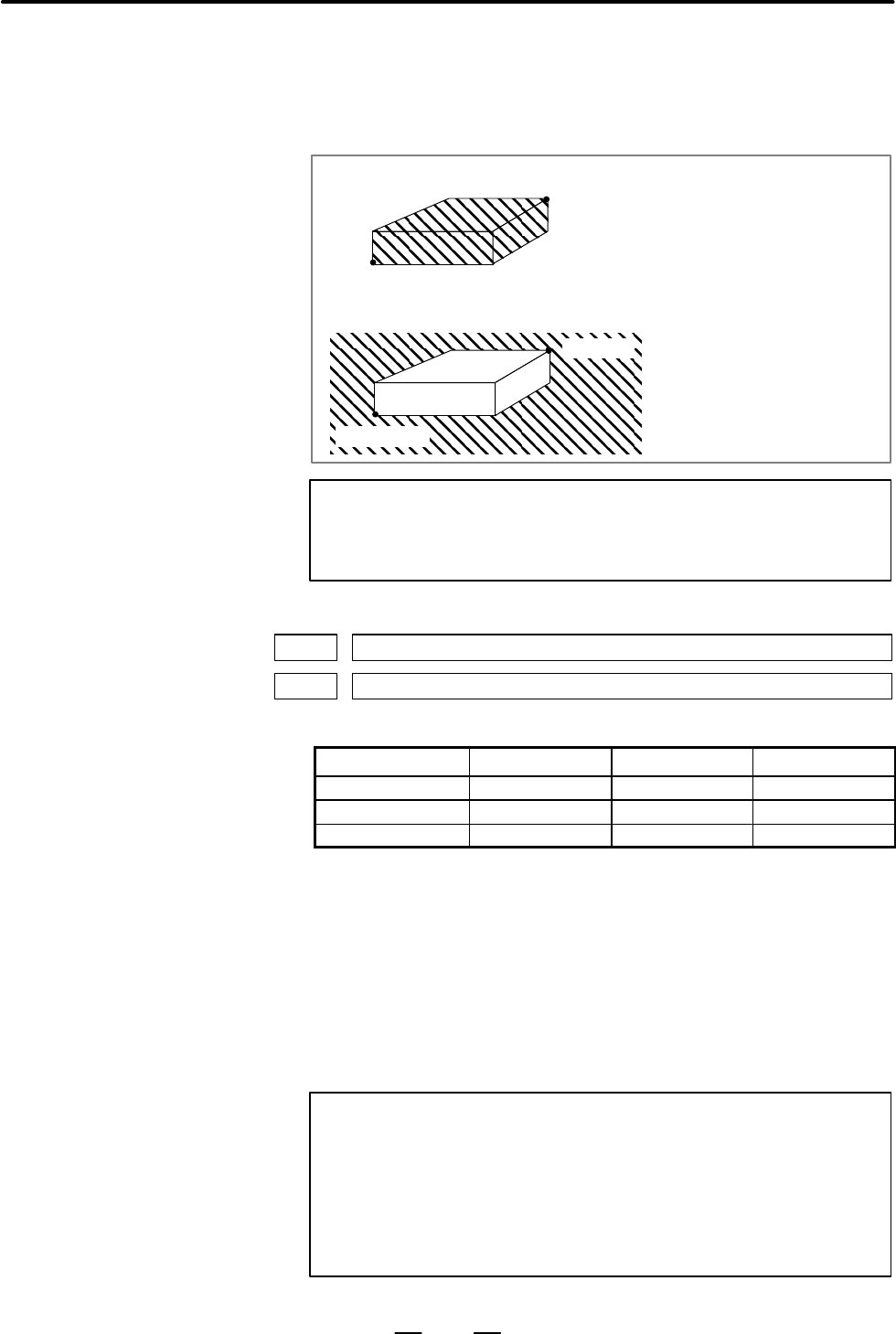

Set the coordinate values of stored stroke check 2 in the positive and
negative directions foreach axis in the machine coordinate system. OUT,
#0 of parameter 1300, sets either the area outside of the area inside
specified by two checks are the inhibition area.
(Xp,Yp,Zp)
(Xm,Ym,Zm)
Set the machine coordinates of the
boundaries in the positive direction
(Xp, Yp, and Zp) using parameter
No. 1322, and those of the bound-
aries in the negative direction (Xm,
Ym, and Zm) using parameter No.
1323. The prohibited area thus
becomes the hatched area in the
figure on the left.
(1) When the prohibited area is inside the boundaries (OUT = 0)
(2) When the prohibited area is outside
the boundaries (OUT = 1)
(Xp,Yp,Zp)
(Xm,Ym,Zm)
NOTE
Specify diameter values for any axes for which diameter
programming is specified.
1326 Coordinate value II of stored stroke check 1 in the positive direction on each axis
1327 Coordinate value II of stored stroke check 1 in the negative direction on each axis
[Data type] 2–word axis
Increment system IS–B IS–C Unit
Millimeter machine 0.001 0.0001 mm
Inch machine 0.0001 0.00001 inch
Rotation axis 0.001 0.0001 deg
[Valid data range] –99999999 to 99999999
Set the coordinate values of stored stroke check 1 in the positive and
negative directions foreach axis in the machine coordinate system.
Specify coordinate values in the appropriate machine coordinate system.
The tool must not enter the area outside the range indicated by these
values. This prohibited area set by these parameters is valid when bit 2
(LMS) of parameter No. 1300 is set to 1 and stored stroke limit switching
signal EXLM is set to 1.
NOTE
1 Specify diameter values for any axes for which diameter
programming is specified.
2 These parameters are invalid if bit 2 (LMS) of parameter No.
1300 is set to 0, or if stored stroke limit switching signal
EXLM is set to 0. In such a case, the settings of parameters
No. 1320 and 1321 are used, instead.
