Series 20i-MODEL A Parameter manual Page 144

Parameter manual
4. DESCRIPTION OF PARAMETERS
B–63380EN/02
140
QSR Before a multiple repetitive canned cycle (G70 to G73) is started, a check
to see if the program contains a block that has the sequence number
specified in address Q is:
0 : Not made.
1 : Made. (If the sequence number specified in address Q cannot be
found, an alarm occurs and the canned cycle is not executed.)
#7
5103
#6 #5 #4 #3 #2 #1
QZA
#0
[Data type] Bit
QZA When the specification of the depth of cut (Q) for each time is omitted, or
if Q0 is specified in a high–speed peck drilling canned cycle (G73) or peck
drilling canned cycle (G83):
0 : No alarm is issued.
1 : An alarm (No.045) is issued.
5114
Return value of high–speed peck drilling cycle G73
[Data type] Word
Increment system IS-B IS-C Unit
Millimeter input 0.001 0.001 mm
Inch input 0.0001 0.0001 inch
[Valid data range] 0 to 32767
This parameter sets the return value in high–speed peck drilling cycle
G73.
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
G73 (F series)

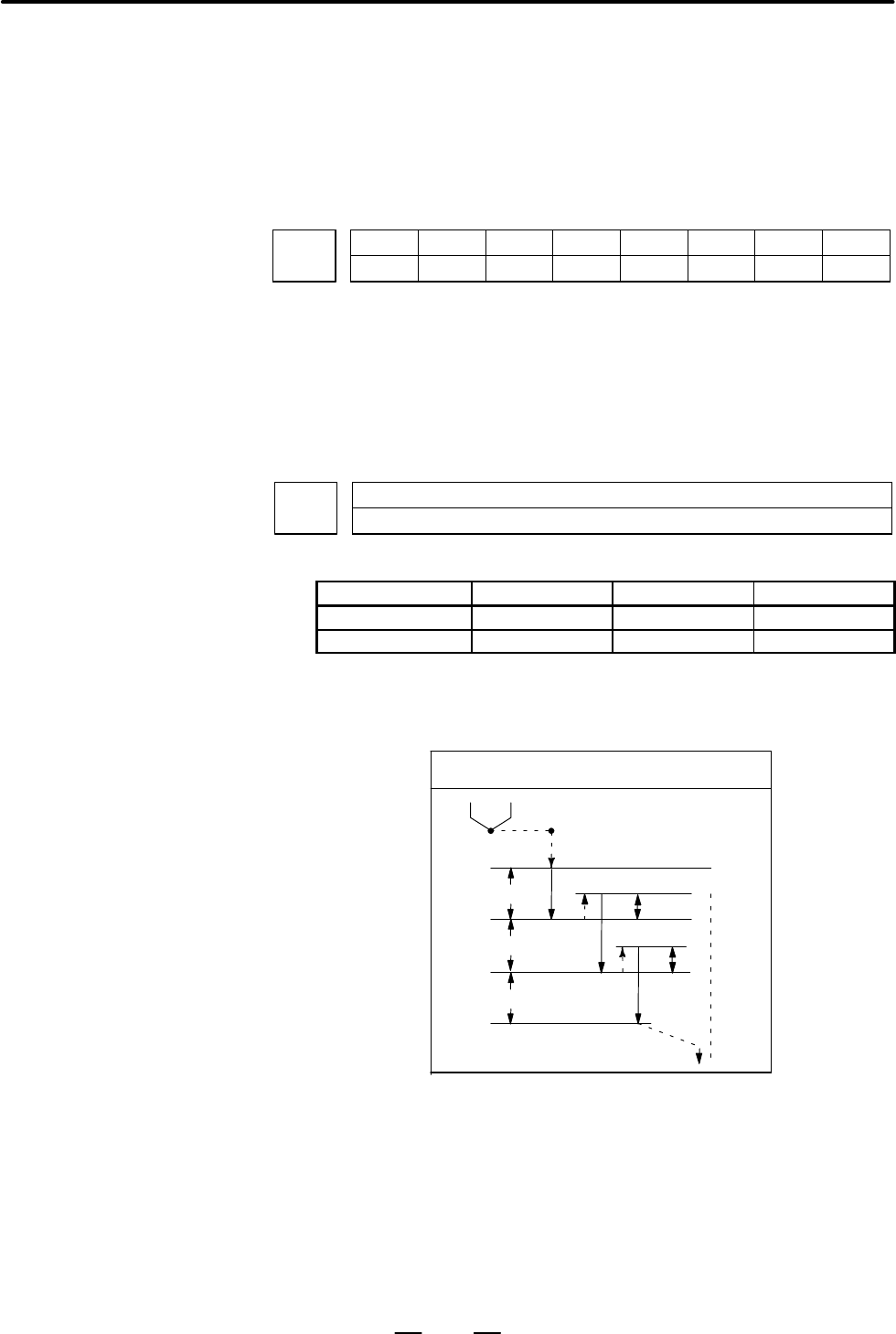

Fig. 4.16.1 (a) High–speed peck drilling cycle G73
[Unit of data]
