2.SOFTWARE MAINTENANCE INFORMATION MAINTENANCE B-64014EN/03
- 154 -
2.2 ETHERNET CONNECTION CONFIRMATION
By transmitting the PING command, the CNC can check that a
connection is made with the communication destination.

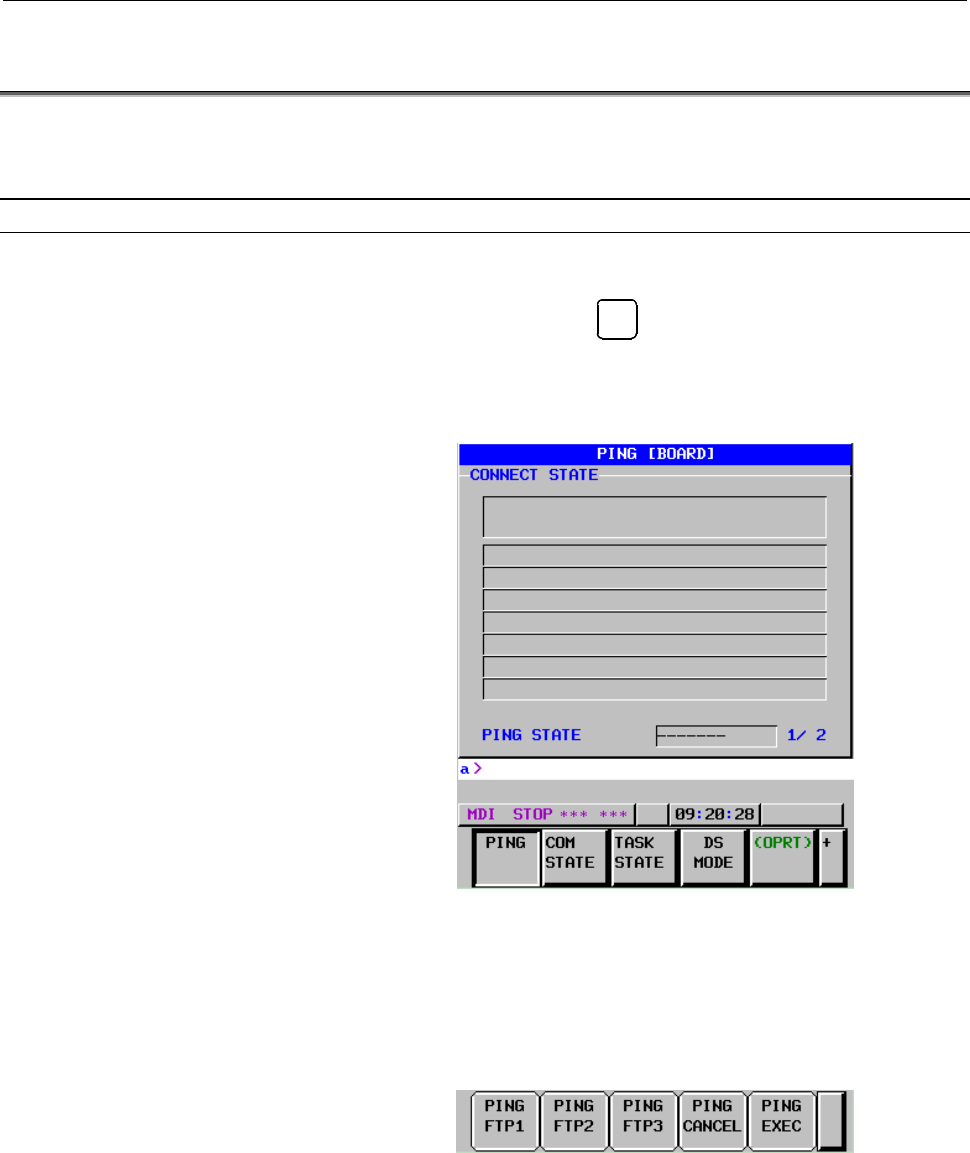

PING screen (connection state confirmation)
Procedure
1 Press the function key
SYSTEM
.
2 Soft key [ETHER BOARD] is displayed. (If the soft key is not
found, press the continuous menu key.)
3 Press soft key [ETHER BOARD] then soft key [PING].
PING (CONNECT STATE) screen
4 Press soft key [(OPRT)] then soft key [PING FTP1] to send the
PING command to host 1 to which the Data Server function is
connected. Similarly, press soft key [PING FTP2] and soft key
[PING FTP3] to send the PING command to connection hosts 2
and 3, respectively.
