2.3 EXAMPLE OF SETTING THE DATA SERVER FUNCTIONS

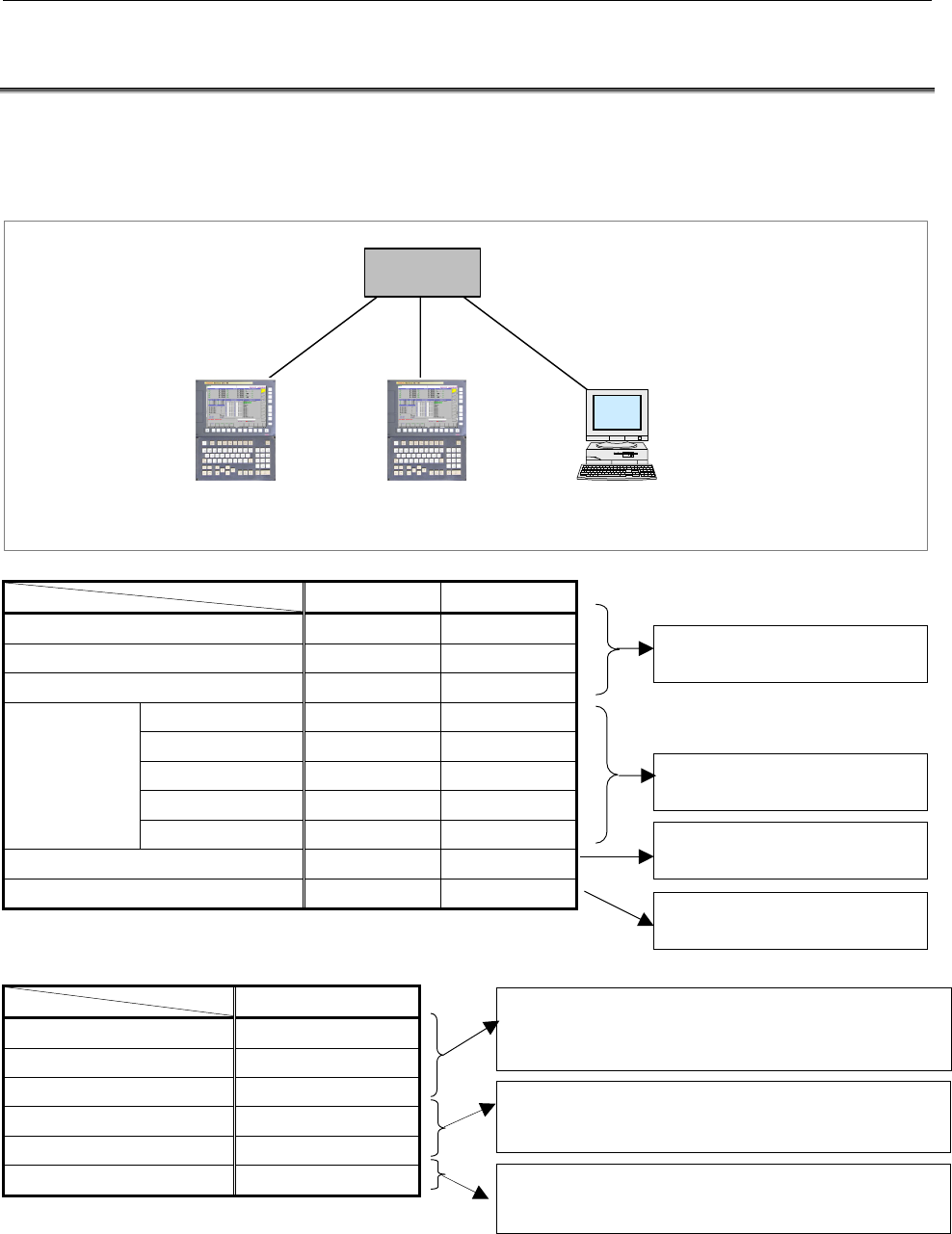

An example of setting for operating the Data Server functions is given
below. In this example of setting, one personal computer is connected
to two CNCs through a Data Server.
100BASE-TX (or 10BASE-T)
CNC 2
CNC 1 PC 1
HUB
CNC 1 CNC 2
IP ADDRESS 192.168.0.100 192.168.0.101
SUBNET MASK 255.255.255.0 255.255.255.0
ROUTER IP ADDRESS None None
PORT NUMBER 21 21
IP ADDRESS 192.168.0.200 192.168.0.200
USER NAME user user
PASSWORD user user
CONNECT 1
LOGIN FOLDER None None
DATA SERVER MODE Storage Storage
NC Parameter NO. 20 5 5
PC 1
IP address
192.168.0.200
Sub-net mask
255.255.255.0
Default gateway
None
User name
user
Password
user
Home folder
default
"Microsoft TCP/IP property" of the personal computer
(Windows2000/WindowsXP) is used for setting.
"User acount” of the personal computer
(Windows2000/WindowsXP) is used for setting.
"Internet service manager" of the personal computer
(Windows2000/WindowsXP) is used for setting.
The Data Server setting screen
is used for setting.
NC parameter setting
The common setting screen is
used for setting.
The Data Server mode setting
screen is used for setting.
