B-64014EN/03 SETTING 5.SETTING THE MACHINE REMOTE DIAGNOSIS FUNCTIONS
- 79 -
5.4 EXAMPLE OF SETTING THE MACHINE REMOTE
DIAGNOSIS FUNCTIONS

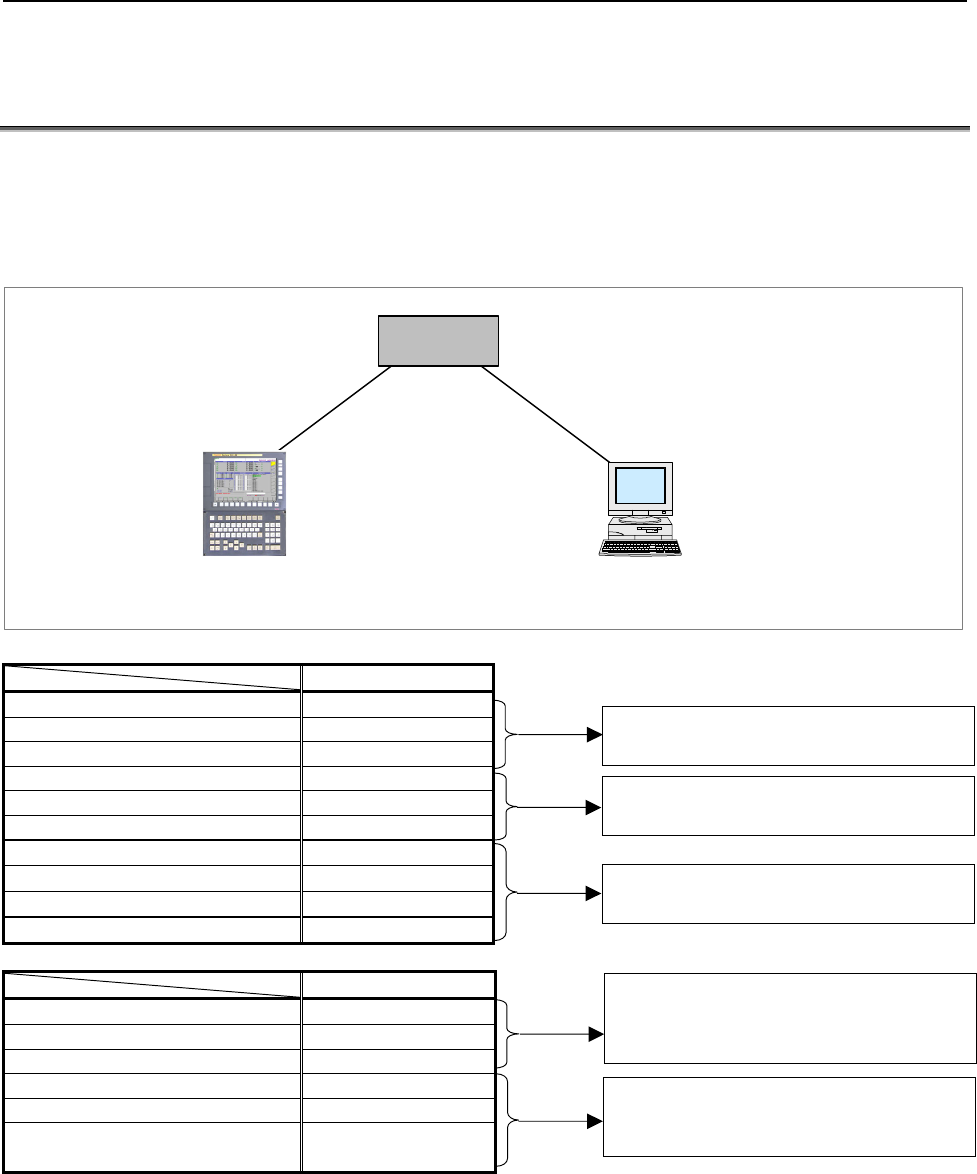

An example of setting for operating the machine remote diagnosis
functions is given below. In this example of setting, one personal
computer functions as the machine remote diagnosis accepting server
and machine remote diagnosis client and is connected to one CNC.
100BASE-TX (or 10BASE-T)
CNC 1 PC 1
HUB
CNC 1
IP ADDRESS 192.168.0.100
SUBNET MASK 255.255.255.0
ROUTER IP ADDRESS None
PORT NUMBER (TCP) 8193
PORT NUMBER (UDP) 0
TIME INTERVAL 0
MTB ID FANUC
MACHINE ID 217XXX-101XXXXX
INQUIRY 1 : HOST NAME 192.168.0.200
INQUIRY 1 : PORT NUMBER 8194
PC 1
IP address 192.168.0.200
Sub-net mask 255.255.255.0
Default gateway None
Accepting server : PORT NUMBER 8194
Proxy server : PORT NUMBER 8193
MTB ID
Accepts all diagnosis
requests.
The FOCAS2 setting screen is used for
setting.
The common setting screen is used for
setting.
The machine remote diagnosis screen is
used for setting.
"Diagnosis accepting server setting" of the
machine remote diagnosis package is
used for setting.
"Microsoft TCP/IP property" of the
personal computer (Windows
95/98/NT/2000/XP) is used for setting.
