2.SETTING THE DATA SERVER FUNCTIONS SETTING B-64014EN/03
- 38 -

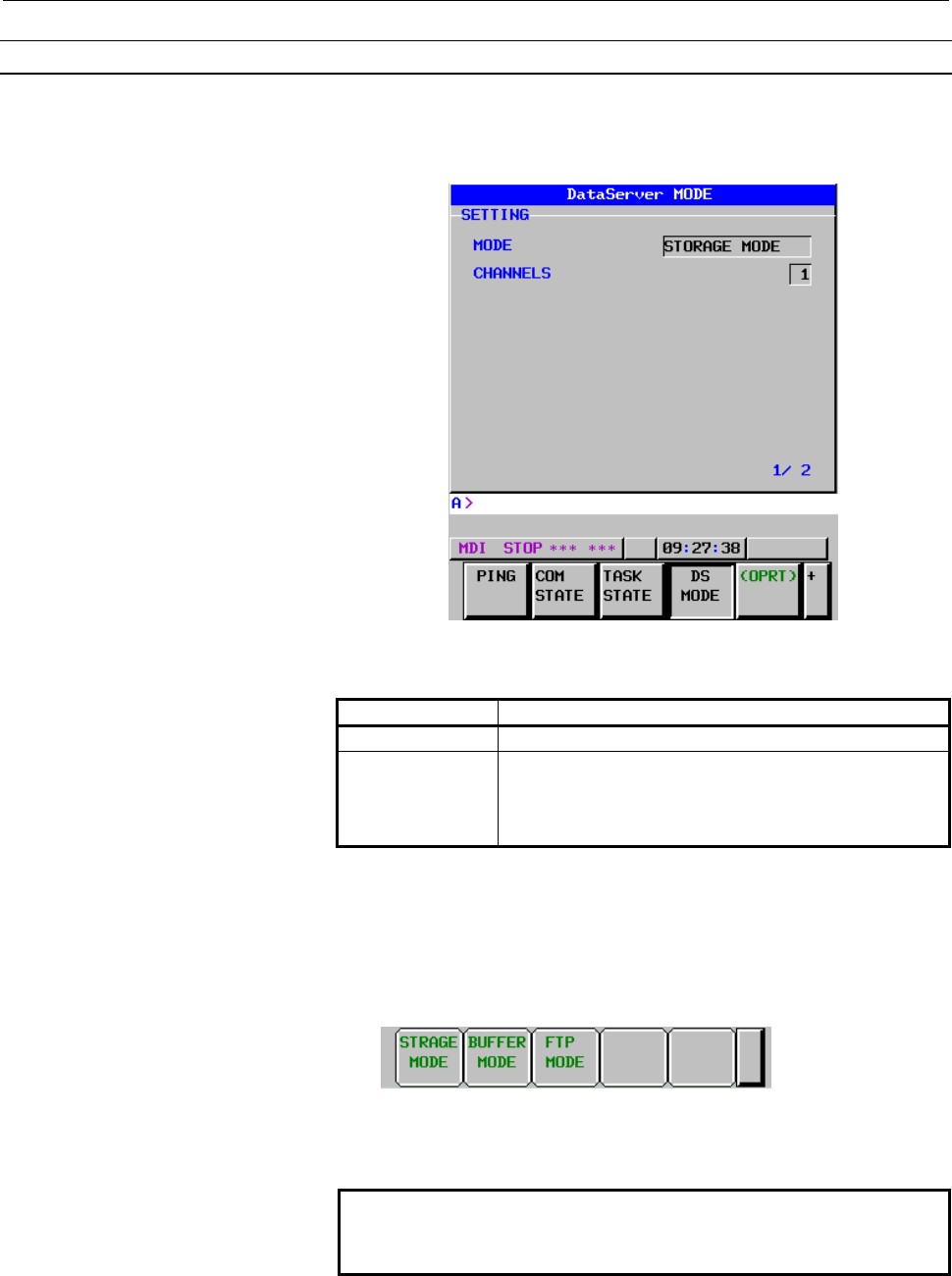

Data Server MODE screen (SETTING)
Press soft key [DS MODE] to display the Data Server MODE screen
(SETTING). The current mode can be checked and changed.
Data Server screen (SETTING)
Display item
Item Description
CHANNELS Displays the number of channels currently being used.
MODE Displays the currently set Data Server mode.
STORAGE MODE
FTP MODE
BUFFER MODE
Operation
The Data Server mode can be changed.
1 Press soft key [(OPRT)] to display soft keys [STRAGE MODE],
[FTP MODE], and [BUFFER MODE].
2 To change the mode to a desired mode, press the soft key of the
desired mode.
NOTE
To use the buffer mode, the software option for
buffer mode functions is required.
