B-64014EN/03 SETTING 3.SETTING THE FOCAS2/Ethernet FUNCTIONS
- 49 -

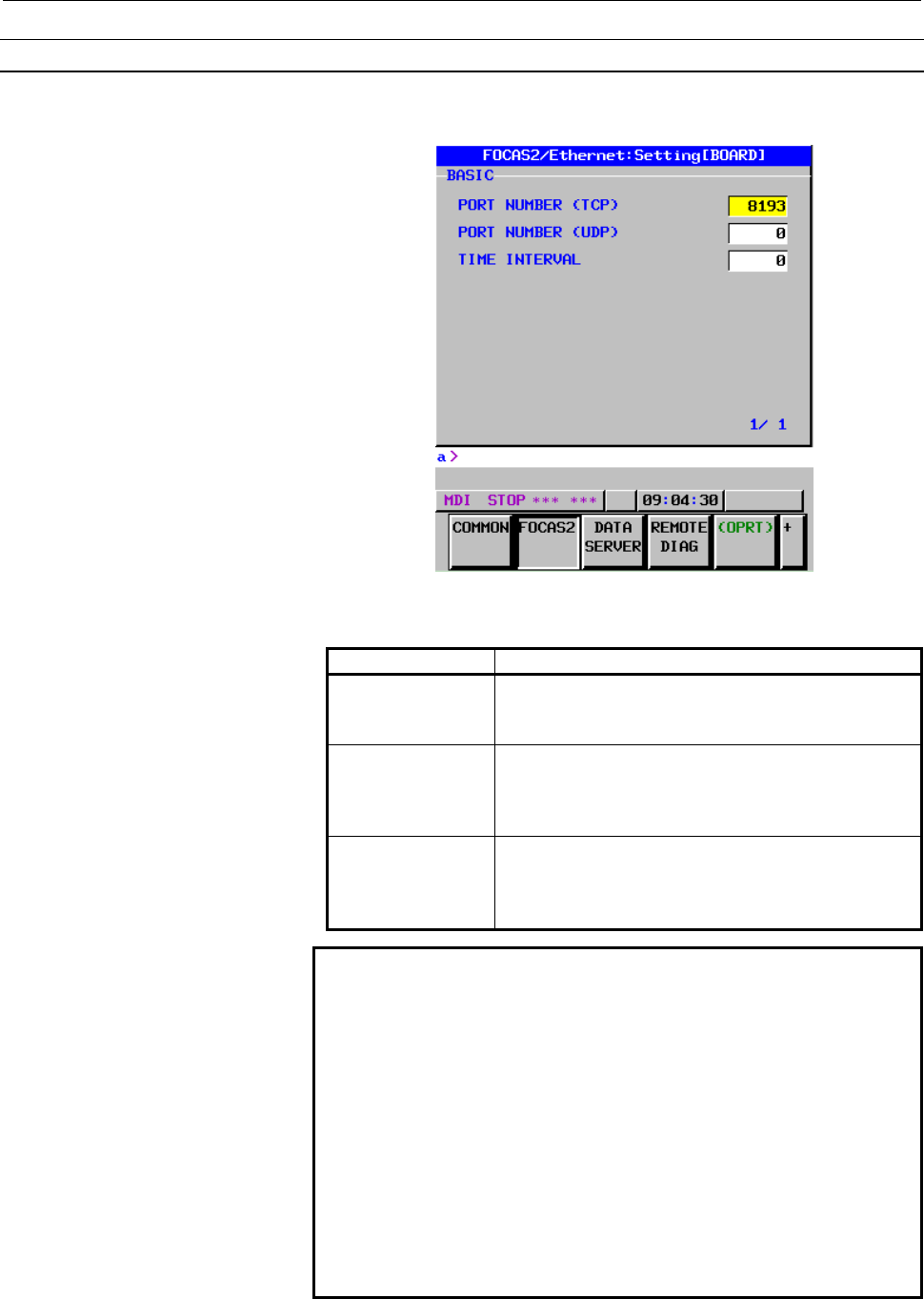

FOCAS2 screen
Press soft key [FOCAS2] to display the FOCAS2 screen.
FOCAS2 screen
Setting item
Item Description
PORT NUMBER
(TCP)
Specifies the port No. to be used by the
FOCAS2/Ethernet functions and CNC screen display
functions, within a range of 5001 to 65535.
PORT NUMBER
(UDP)
Set 0 when using this item for the FOCAS2/Ethernet
functions and CNC screen display functions.
Set this port number to communicate with the FANUC
CIMPLICITY i CELL.
TIME INTERVAL Set 0 when using this item for the FOCAS2/Ethernet
functions and CNC screen display functions.
Set this time interval to communicate with the FANUC
CIMPLICITY i CELL.
NOTE
1 For connection with the FANUC CIMPLICITY i CELL,
make the above setting according to "FANUC
CIMPLICITY i CELL OPERATOR'S MANUAL
(B-75074EN)."
2 The unit of TIME INTERVAL is 10 ms. The allowable
input range is 10 to 65535. Values less than 100 ms
cannot be set.
3 If a smaller value is set in TIME INTERVAL, the
communication load can increase to adversely affect
the performance of the network.
Example) If 100 is set, broadcast data is transmitted at
intervals of 1 second [1000 ms] (=100×10).
