B-64014EN/03 SETTING 5.SETTING THE MACHINE REMOTE DIAGNOSIS FUNCTIONS
- 71 -
MACHINE REMOTE DIAG screen (INQUIRY1, INQUIRY2, INQUIRY3)
Press soft key [REMOTE DIAG] to display the MACHINE REMOTE
DIAG screen.
By using page keys
PAG E
PA
G
E
, the three host computers at inquiry
destinations 1, 2, and 3 can be set.

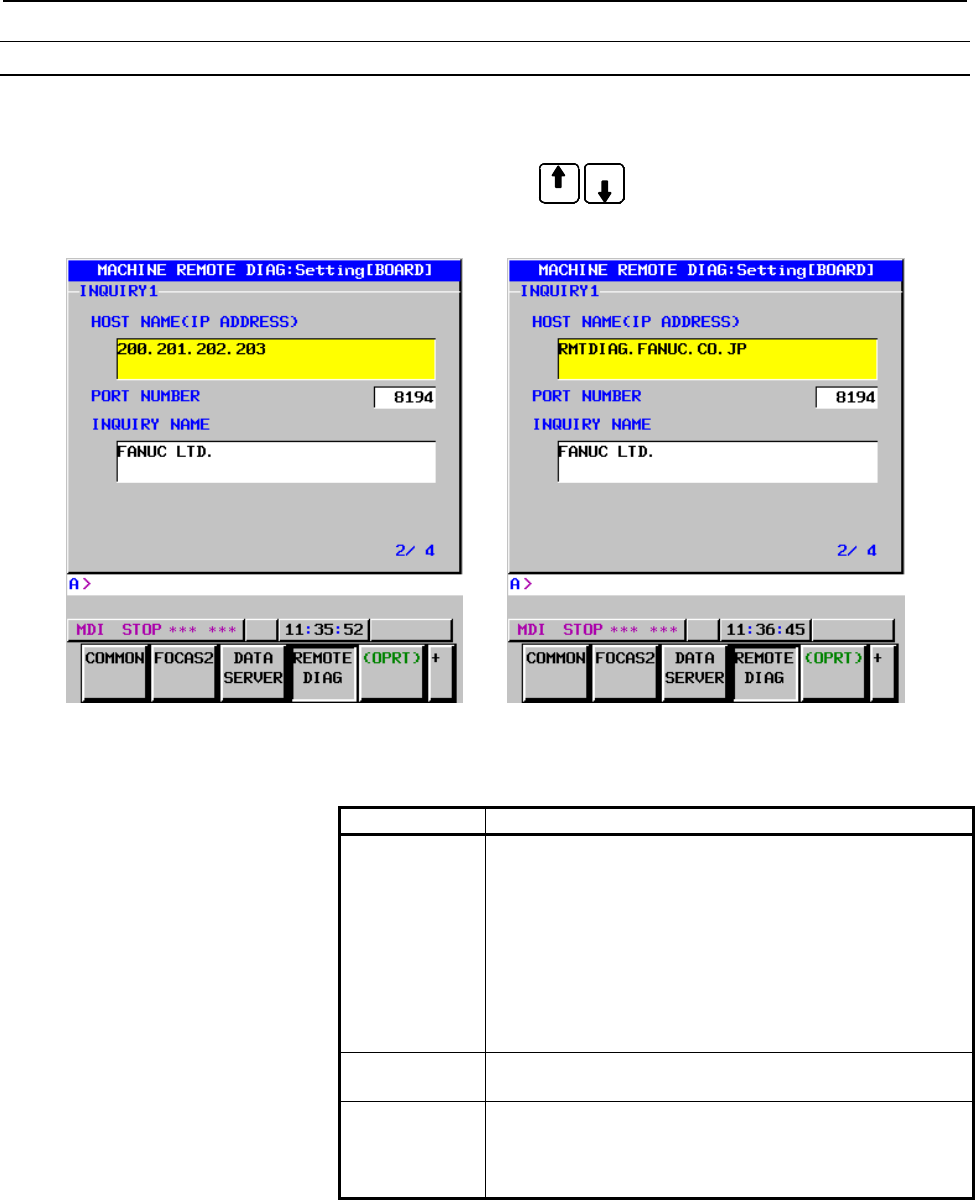

MACHINE REMOTE DIAG screens (INQUIRY1):
Screen when the DNS function is disabled (left) and screen when the function is enabled (right)
Setting item
Item Description
HOST NAME Specify the IP address of the host computer (machine
remote diagnosis accepting server) when the DNS function
is disabled.
(Example of specification format: "200.201.202.203")
Specify the host name of the host computer (machine
remote diagnosis accepting server) when the DNS function
is enabled. (You can specify up to 63 characters.)
(Example of specification format:
"RMTDIAG.FANUC.CO.JP")
PORT NUMBER Specify a port number. Usually, specify "8194" because the
machine remote diagnosis functions are used.
INQUIRY NAME Specify information for identifying the host computer
(machine remote diagnosis accepting server). (You can
specify up to 63 characters.)
(Example of specification format: "FANUC LTD.")
