B-64014EN/03 SETTING 2.SETTING THE DATA SERVER FUNCTIONS
- 37 -

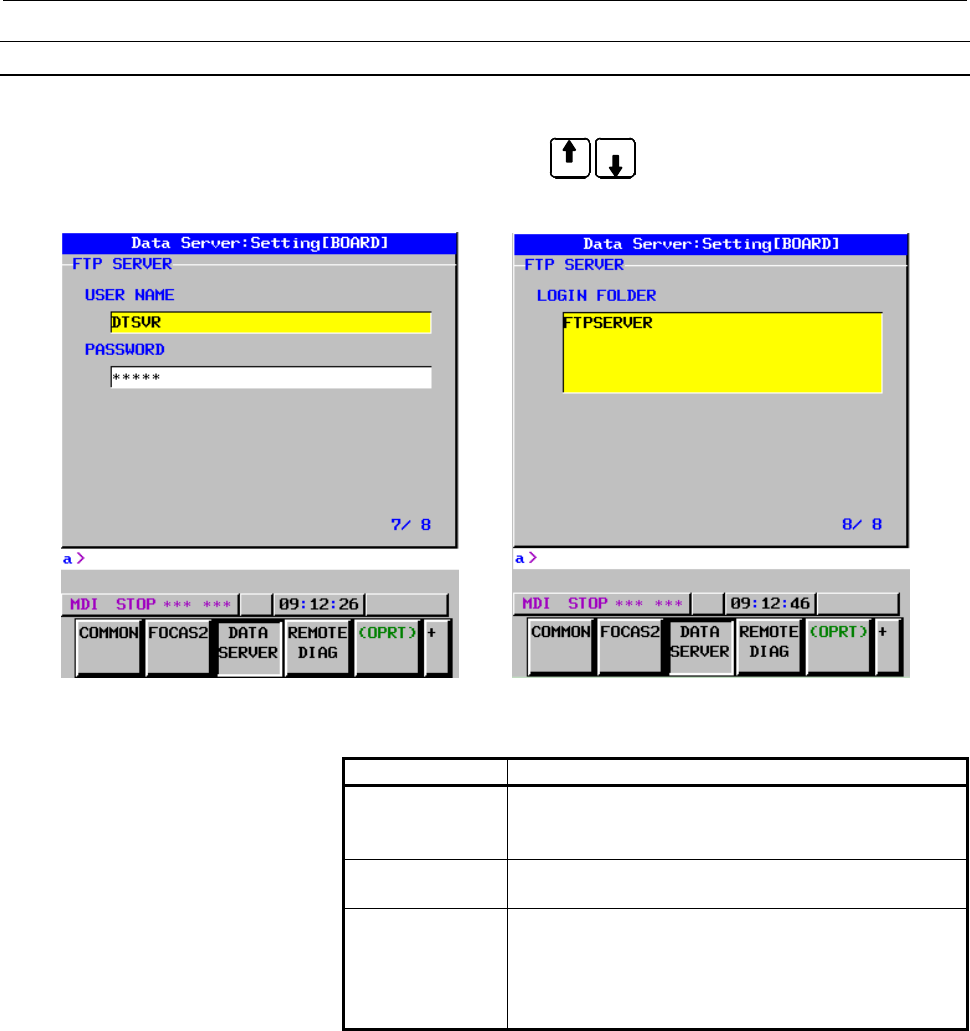

Data Server screens (FTP SERVER)
Press soft key [DATA SERVER] to display the Data Server screen.
By using page keys
PAG E
PA
G
E
, the FTP server setting screen is
displayed after the connection destination 1, 2, or 3 screen.
Data Server screens (FTP SERVER)
Setting item
Item Description
USER NAME Specify a user name to be used when the host
computer logs in to the Data Server. (A user name of
up to 31 characters can be specified.)
PASSWORD Specify the password for the above user name.
The password must always be specified.
LOGIN FOLDER Specify a work folder to be used when the host
computer logs in to the Data Server. (Up to 127
characters can be specified.)
If no data is set, the home folder (home directory) is
used as a login folder.
