30i/300i/300is-Model A Macro Compiler/Macro Executor Programming manual Page 125

Programming manual

Page of 358

/ 358

B-63943EN-2/01 6.MACRO EXECUTOR FUNCTION

- 115 -

- For 7.2" or 8.4" LCD (type of 7 soft keys)

Screen without background color

Compile parameter CM30(9009#2)

Screen with background

color

The screen can display 40

characters (0 to 39) from left

to right along the X-axis, and

19 lines (0 to 18) from top to

bottom along the Y-axis

The screen can display 40

characters (0 to 39) from left

to right along the X-axis, and

19 lines (0 to 18) from top to

bottom along the Y-axis (as

with the screen with

background color).

The screen can display 40

characters (0 to 39) from left

to right along the X-axis, and

16 lines (0 to 15) from top to

bottom along the Y-axis

(Among the 19 lines along

the Y-axis, the 2 lines at the

top and the one line at the

bottom are not used.)

A command for display beyond the ranges above is ignored.

The system uses the 13th line as an input field, and uses the 14th line

as a state display field, so that these lines cannot be specified.

Moreover, the soft key frame portions cannot be specified.

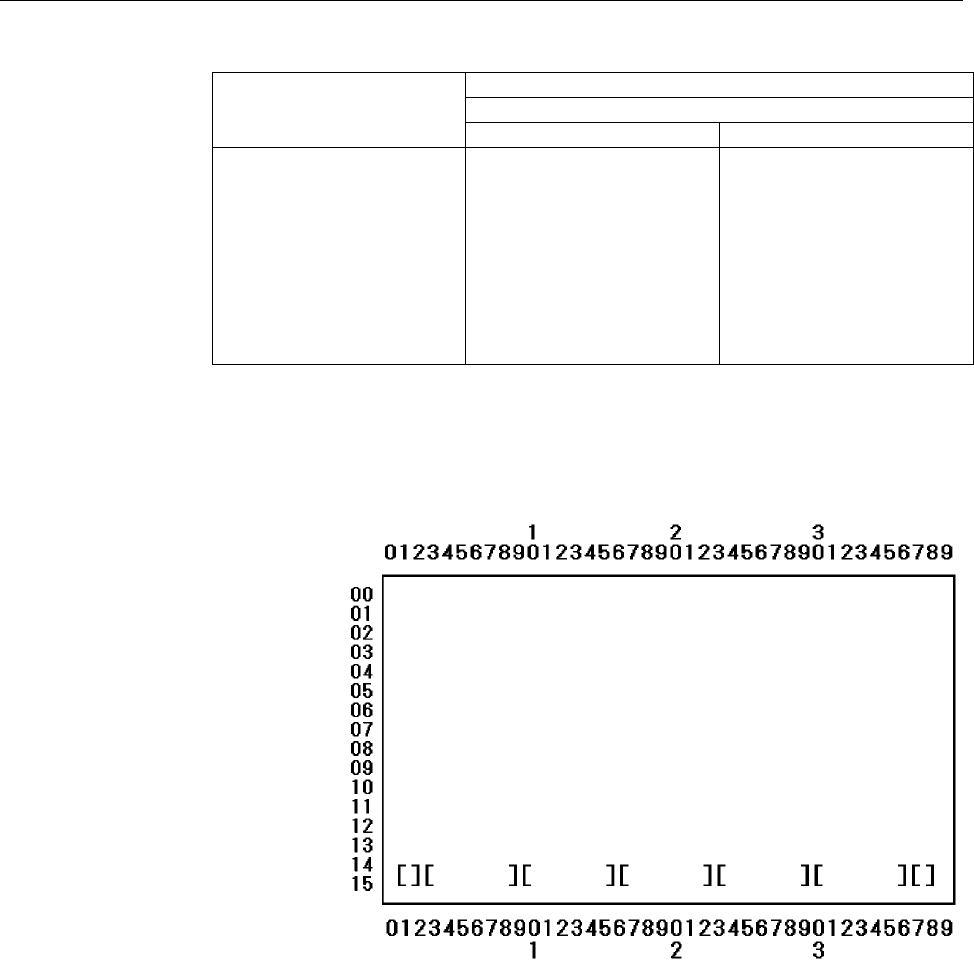

Fig. 6.1.1(a) Character coordinate system (7.2" LCD, 8.4" LCD)
