B-63943EN-2/01 3.EXECUTION MACRO FUNCTION

- 19 -

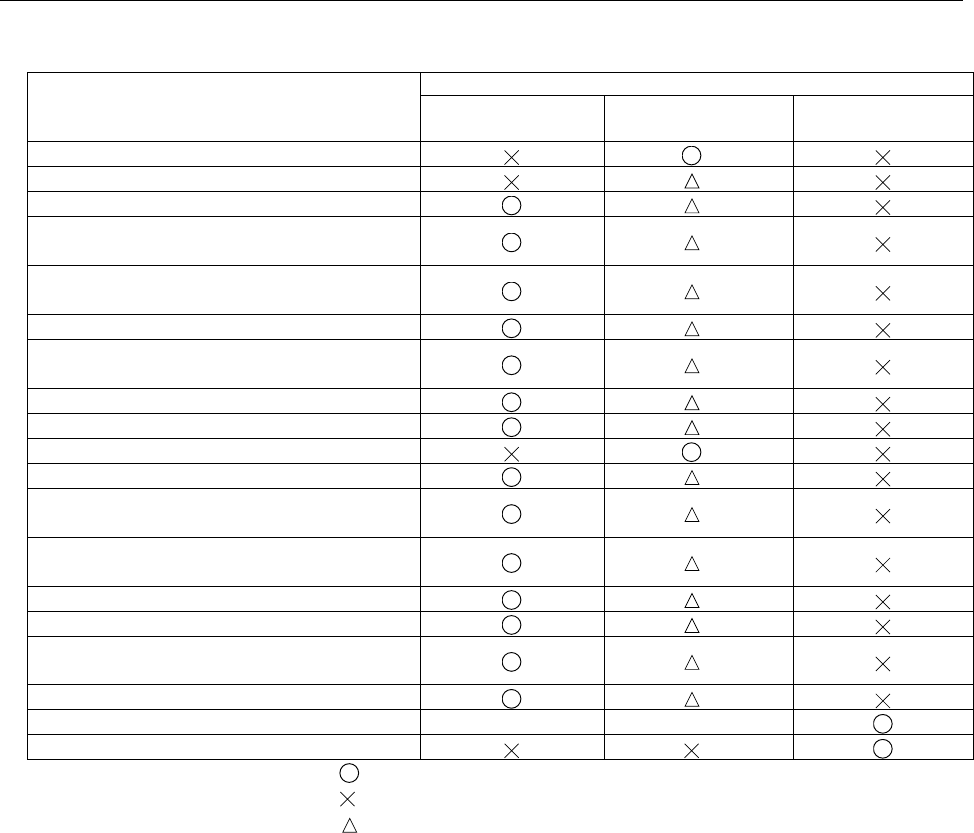

Usable call command

Call method (call source →

→→

→ call destination)

User program

→

→→

→Execution macro

Execution macro

→

→→

→Execution macro

Execution macro

→

→→

→User program

Simple call of execution macro (G65)

Modal call of execution macro (G66, G66.1)

Macro call using G code

(specification of 1 set)

Macro call using G code

(specification of 3 sets)

Macro call using M code

(specification of 3 sets)

Special macro call using T code

Special macro call using axis address

Subprogram call of execution macro (M98)

Subprogram call using M code

Subprogram call using M code in the specified

range

Subprogram call using M code

(specification of 3 sets)

Subprogram call using S code

Subprogram call using T code

Subprogram call using second auxiliary

function code

Subprogram call using specific code

Subprogram call of user program - -

External device subprogram call (M198)

: Allowed

: Not allowed

: Depends on bit 2 (PCDC) of compile parameter (No. 9163) and

bit 6 (GMP) of parameter (No. 6008).

See "Limitations on calls" described later for details.

Limitations on calls

1) G65, G66, G66.1, or M98 cannot be used to call an execution

macro from a user program.

2) It is impossible to make a call using an M, S, T, second auxiliary

function code, or specific code from a macro program called

with a G code. It is also impossible to make a macro call using

G code from a program called using a G, M, S, T, second

auxiliary function code, or specific code. (However, this

limitation does not apply when an execution macro is called

from a user program called with a G, M, S, T, second auxiliary

function code, or specific code.)

3) The following features may be observed depending on the values

of bit 2 (PCDC) of compile parameter No. 9163 and bit 6 (GMP)

of parameter No. 6008.

In this description, calls using a G, M, S, T, second auxiliary

function code, or specific code are generically referred to as calls

using a code.
