FANUC PMC Simulator, Operator Additional Manual Page 27

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
27/70
DRAW.NO.
• Child window
Child windows are displayed within the parent window.
Child windows are used for displaying ladder execution status and
displaying and editing I/O operation panel, etc.
4.2.2 Main menu
The composition of menu is as follows.
Table 4.2.2 Menu list
Main menu Submenu Reference
File Import
Export
Backup
Exit
6.1.1 Import procedure
6.1.2 Export procedure
6.1.3 Backup procedure
3.1.2 Exiting PMC simulator
View I/O Operation Panel
PMC Title
Ladder Execution Status
Signal Operation Replay Function
4.2.5 I/O operation panel window
4.2.3 Title window
4.2.4 Ladder execution status window
8 SIGNAL OPERATION REPLAY FUNCTION
Tool I/O Operation Panel Setting
Option
4.2.5 I/O operation panel window
5 VARIOUS SETTINGS
7.3 SIMULATOR SETTING
Window Cascade
Tile Horizontally
Tile Vertically
Arrange Icons
Help About 3.2 DISPLAY OF VERSION INFORMATION
4.2.3 Title window
The content of PMC title data under the simulation is displayed.
The window of each path on multi-path PMC is displayed.

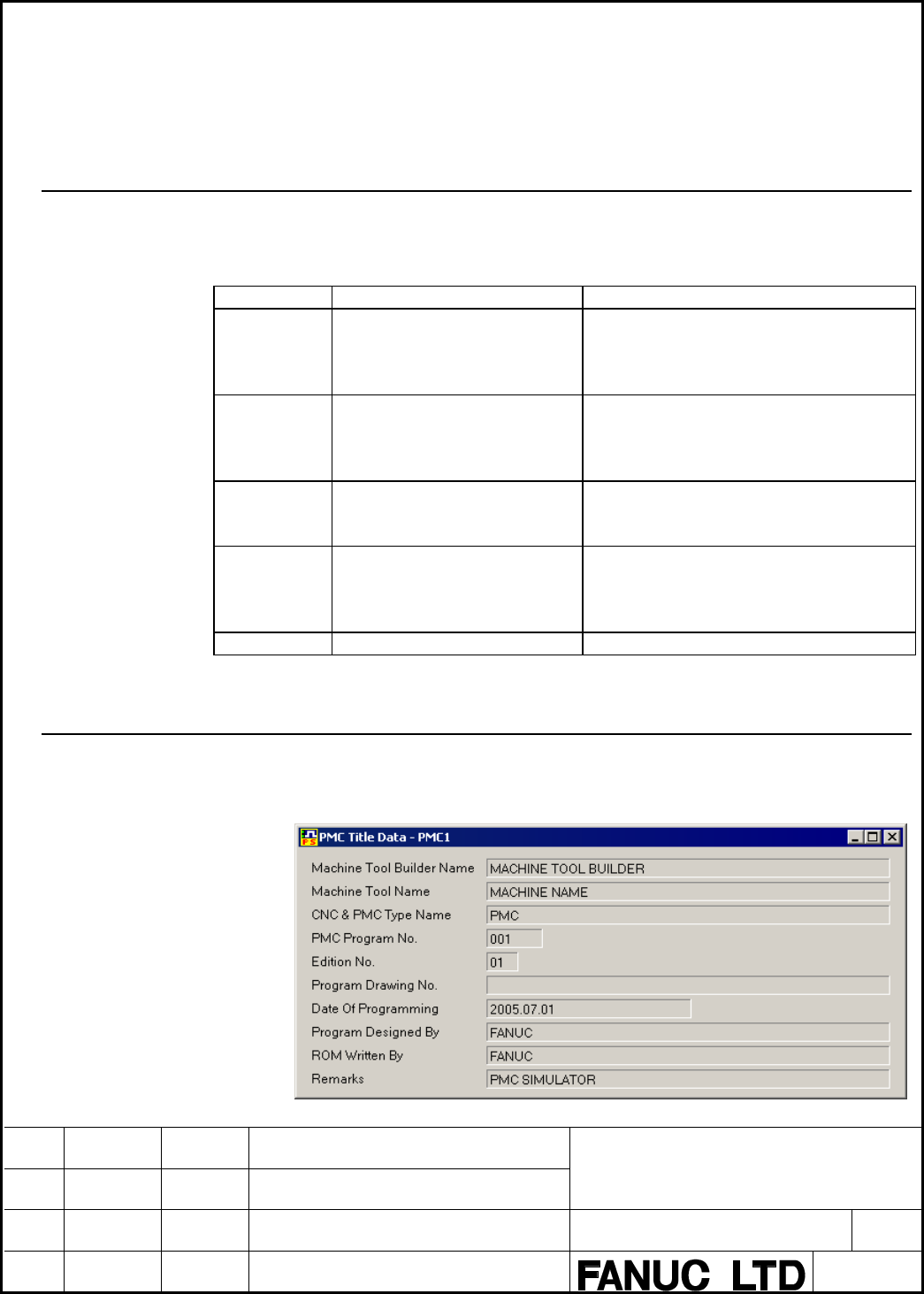

Fig.4.2.3 Title window
