6.2 I/O OPERATION IN COORDINATED CNC/PMC SIMULATOR
MODE
Input/output and back up the PMC data on the I/O screen of built-in
PMC screen.

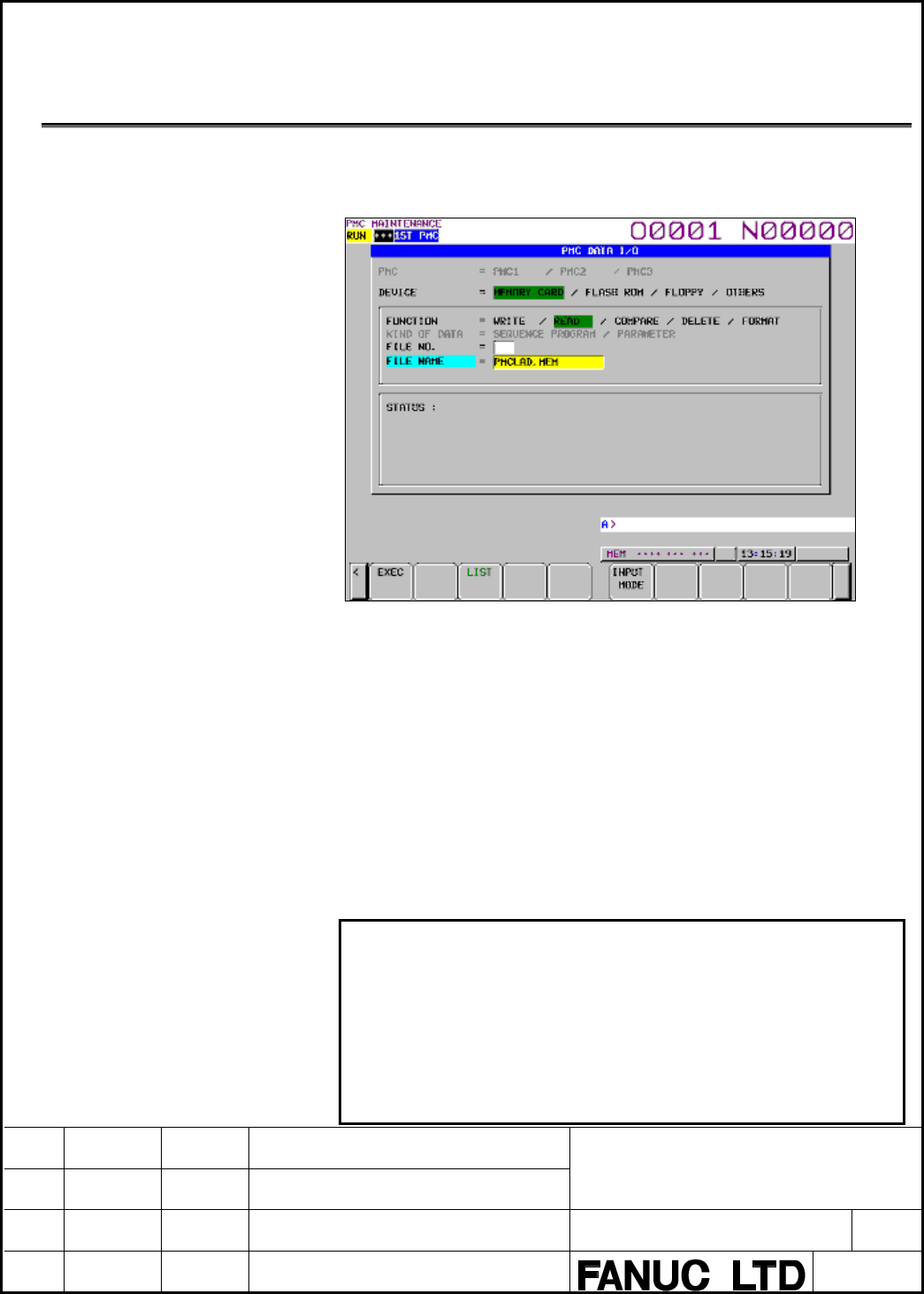

Fig.6.2 I/O screen of built-in PMC
The target folder for I/O is "MEMCARD" in the folder in which the
application is installed.
Example:
Install folder:
"C:¥Program Files¥ FANUC simulator ¥30i simulator"
Target folder for I/O:
"C:¥Program Files¥ FANUC simulator ¥30i simulator
¥MEMCARD"
Note
• The file name including only ASCII code can be used.
• The capital letter and the small letter of the file name
are identified.
• As for the long file name, the file name with short
MS-DOS form is displayed.
• "FLOPPY" and "OTHERS" of the “DEVICE” cannot be
used.
