FANUC PMC Simulator, Operator Additional Manual Page 65

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
65/70
DRAW.NO.
•

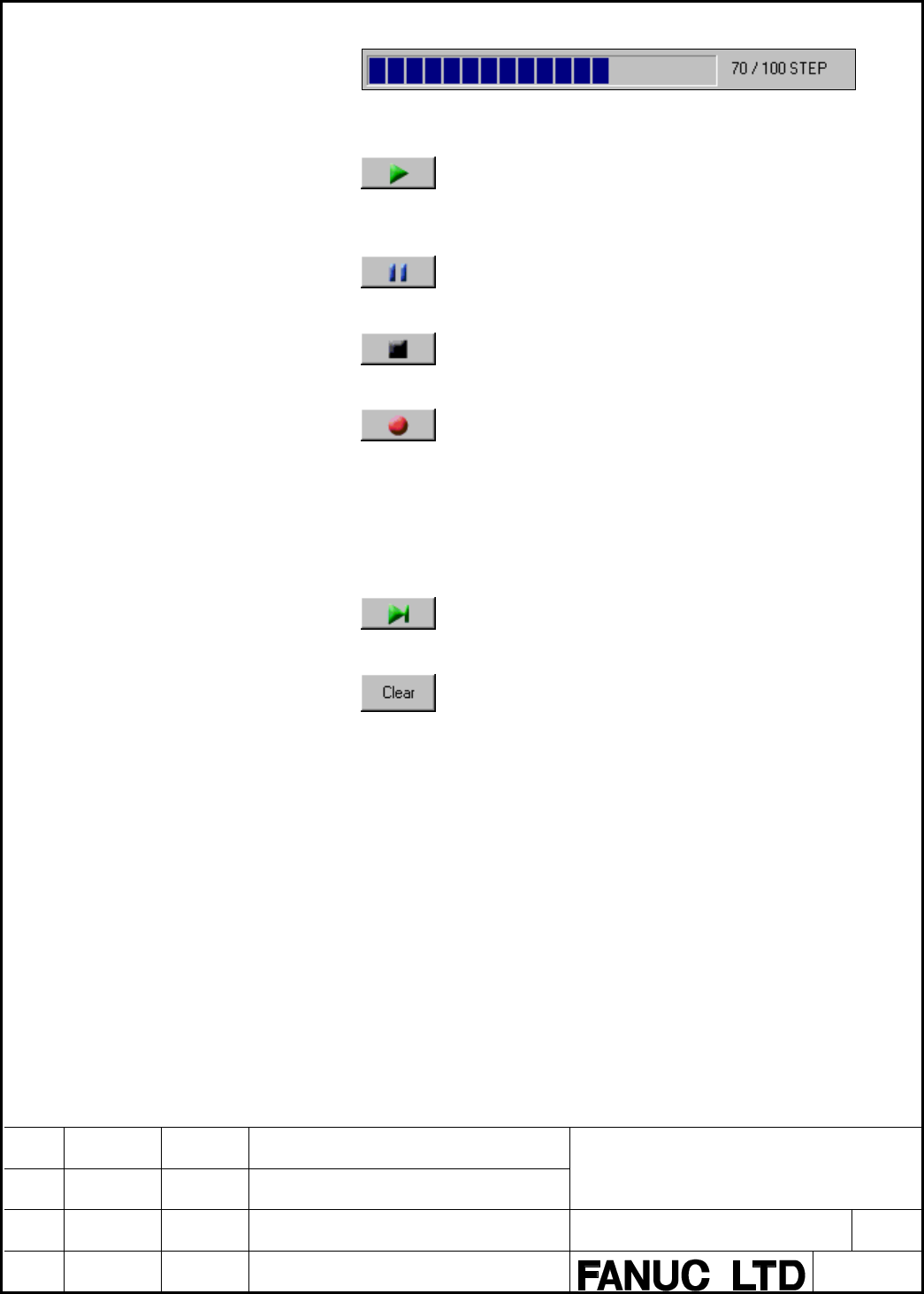

The current step number per the entire number of steps is shown.
There is no limitation in the entire step number.
•
(Play button)
Starts replaying of the signal according to the contents of
memorized steps in the memory.
•
(Pause button)
Temporarily stops replaying of the signal.
•
(Stop button)
Stops replaying and recording the signal.
•
(Record button)
Starts recording of the signals. After the record button is pushed,
the input signals operated on the I/O operation panel are recorded
in the memory. When the history of the recorded signal already
exists in the memory, it is recorded after the last operation in
addition. It is not possible to record when the file with the CHAIN
command is being read.
•
(Step button)
Replays the signals by the single step execution.
•
(Clear button)
Clears the contents of memorized steps in the memory.
