FANUC PMC Simulator, Operator Additional Manual Page 33

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
33/70
DRAW.NO.

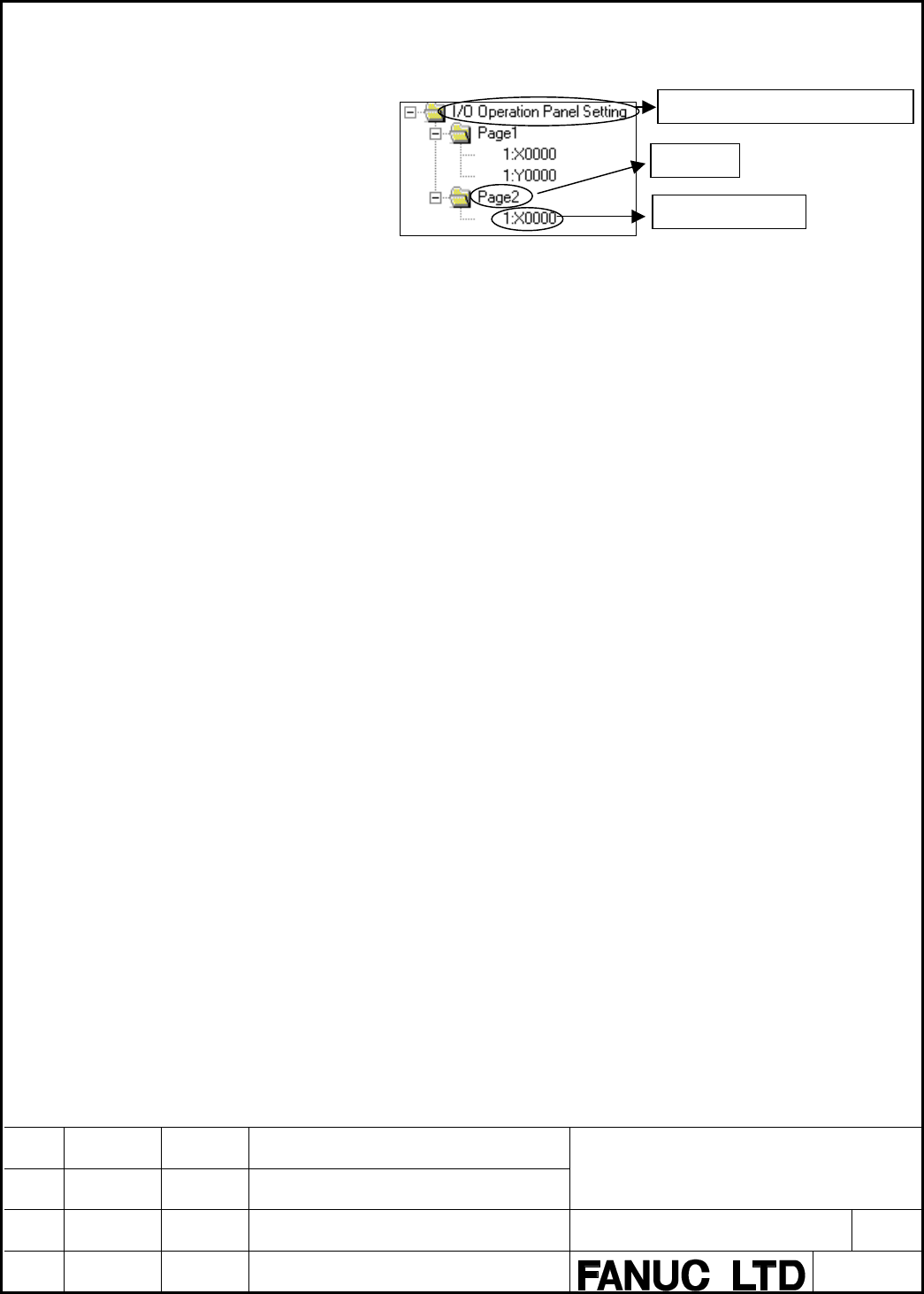

Contents of I/O operation panel setting dialog
Fig.4.2.5 (g) I/O operation panel setting dialog
•
I/O Operation Panel Setting node
It is possible to do the following operations from the pop-up menu
of the I/O operation panel setting node.
• Addition of page node
• Pasting of page node
•
Page node
Page node shows the composition of the pages of the I/O
operation panel. The I/O operation panel is displayed in the order
of the nodes displayed on this screen.
It is possible to do the following operations from the pop-up menu
of page node.
• Addition of page node
• Cutting, copying, pasting, and deleting of page node
• Addition of address data node
• Pasting of address data node
Moreover, the page node can be copied by dragging with right
button and moved by dragging with left button by using the drag
& drop of the mouse operation.
•
Address data node
The address data node shows the composition of the address data
in the page. The address of the I/O operation panel is displayed in
order of the displayed address data.
It is possible to do the following operations from the pop-up menu
of the address data node.
• Addition of address data node
• Cutting, copying, pasting, and deleting of address data node
Page node
I/O operation panel setting node
Address data node
