FANUC PMC Simulator, Operator Additional Manual Page 34

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
34/70
DRAW.NO.
Moreover, the address data node can be copied by dragging with
right button and moved by dragging with left button by using the
drag & drop of the mouse operation.

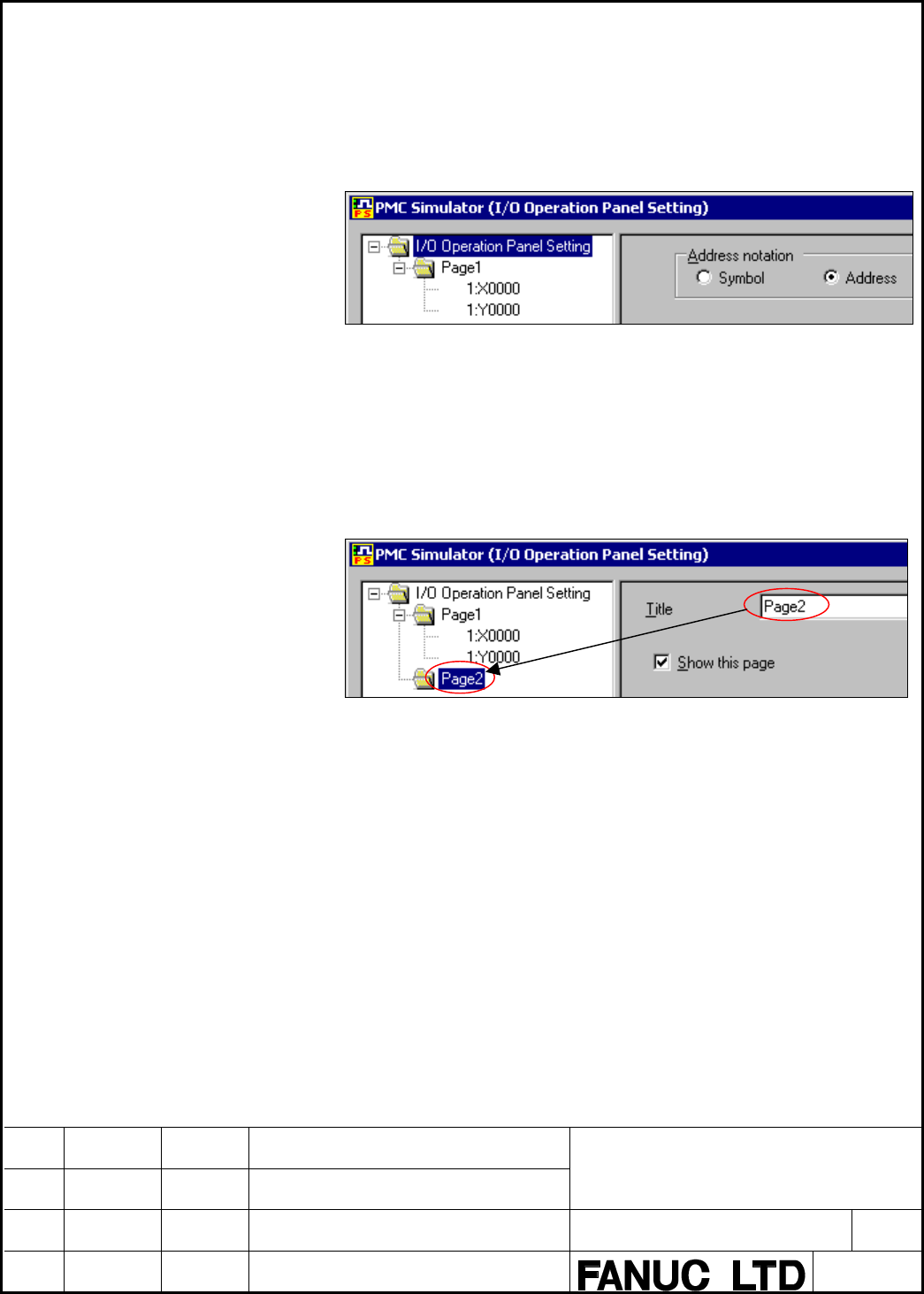

Content of I/O operation panel setting dialog
Fig.4.2.5 (h) I/O operation panel setting
•
Address notation
Specify whether the content of the address is displayed by the
symbol or the address in the I/O operation panel.
Content of page setting dialog
Fig.4.2.5 (i) Page setting
•
Title
The setting content is displayed in the title of page node when
setting it. Be sure to set the title. Moreover, the character '¥'
cannot be included to set the title.
•
Show this page
Select whether to show this page in the I/O operation panel.
