Display and setting of byte, word, and dword
The display and the setting of byte, word, dword are operated in the edit
box.
Display content of I/O
The address and the symbol information of the I/O signal are displayed
with the tool chip.
4.3 COORDINATED CNC/PMC SIMULATOR MODE
This section describes the display mode in the coordinated CNC/PMC
simulator mode.
4.3.1 Display mode
The display modes selectable in the coordinated CNC/PMC simulator
mode are "Picture mode" and "Window mode".The simulator starts in
"Picture mode" just after the installation.
Features of picture mode
CNC image is displayed on the screen, and it is possible to operate
it like actual CNC.

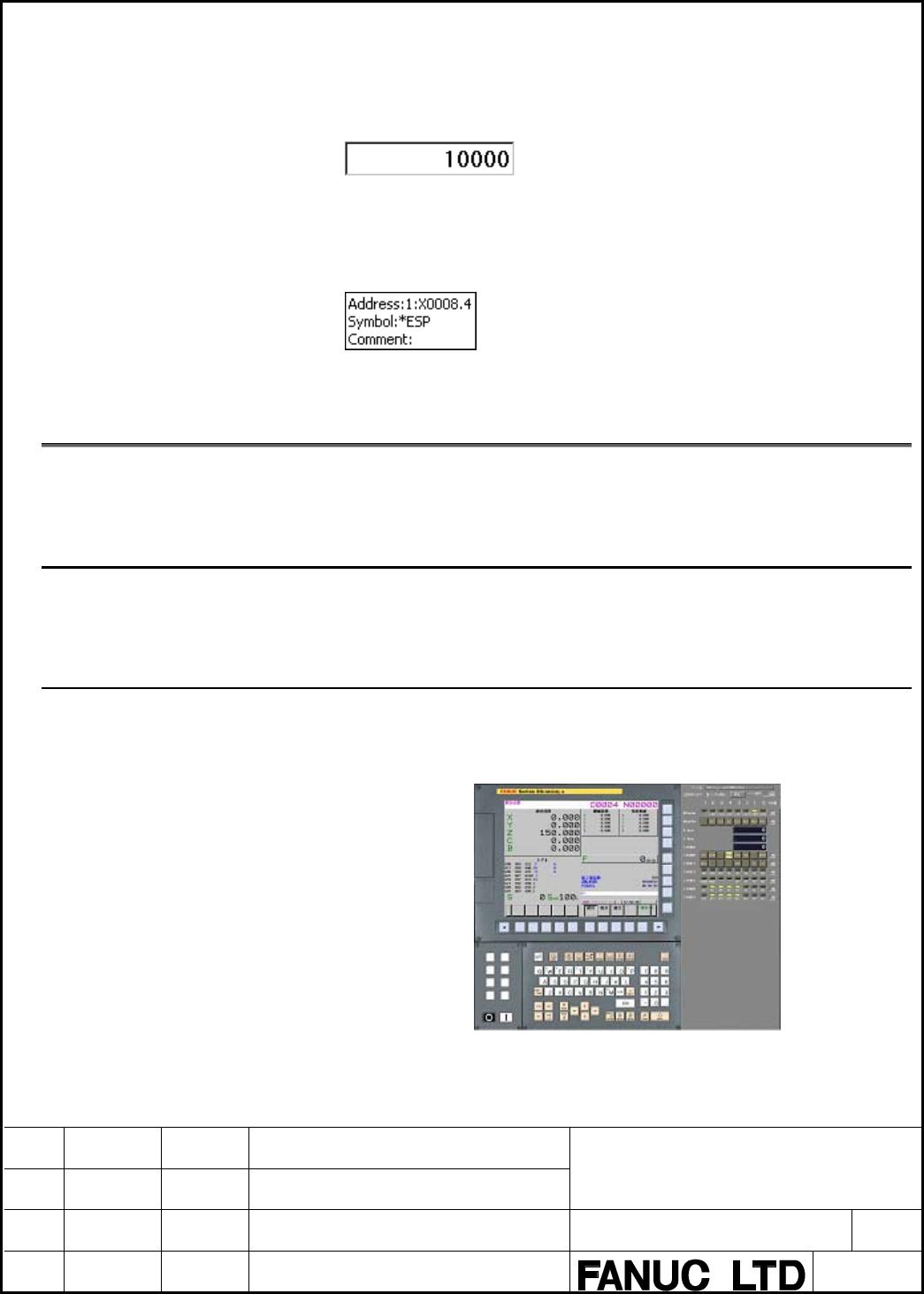

Fig.4.3.1 (a) Appearance of picture mode
