FANUC PMC Simulator, Operator Additional Manual Page 57

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
57/70
DRAW.NO.
7.2 ETHERNET SETTING IN PC
Basic Ethernet setting such as IP address etc. depends on the PC
environment on which PMC simulator is executed.
Note
IP address should be allotted to the PC and TCP/IP
connection should be effective. Therefore, it is
necessary to connect the PC with an Ethernet
router or a hub even when the simulator and
FANUC LADDER-III are communicated on the
same PC.
7.3 SIMULATOR SETTING
The setting method is different in the PMC simulator mode and in the
coordinated CNC/PMC simulator mode.
PMC simulator mode
•
Port number
Specify the port number of Ethernet. Select [Tool] - [Option] –
[General], and set the port number.

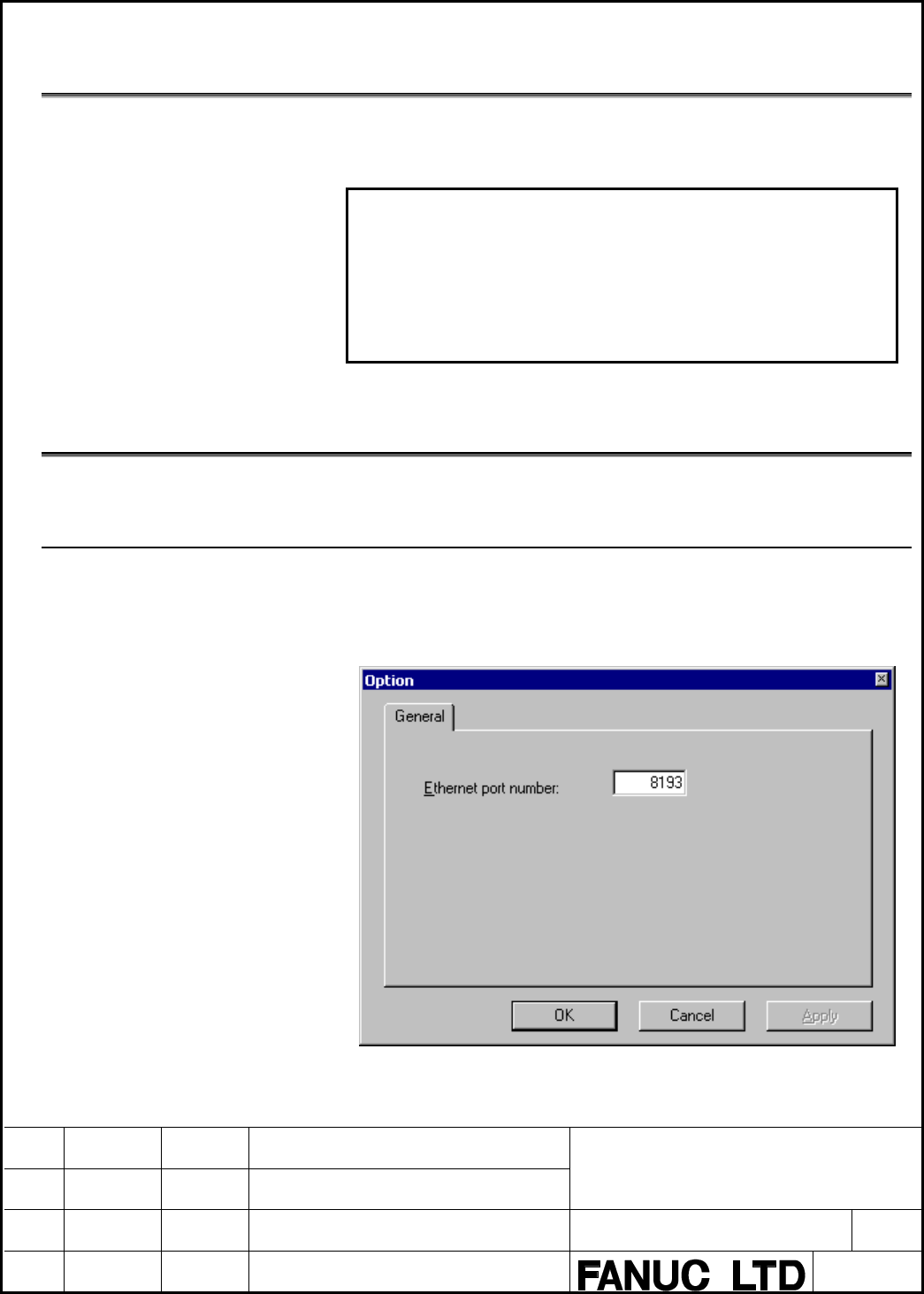

Fig.7.3 (a) Ethernet port number setting
