FANUC PMC Simulator, Operator Additional Manual Page 64

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
64/70
DRAW.NO.
Pausing.
•
Comment
Put the comment on the recording data.
•
Step interval to record
Specify “Real time” or “Constant” to the interval of the operated
time for the operation under the record.
• Real time: Record the interval time to reproduce the input
operation in real time.
• Constant: Record intervals to reproduce as set by “Wait time”.
• Wait time: Set the waiting time when “Constant” is selected.
Note
The time recorded in the signal operation replay
function does not follow the actual time, but follows
the above-mentioned setting.
•
Execution status

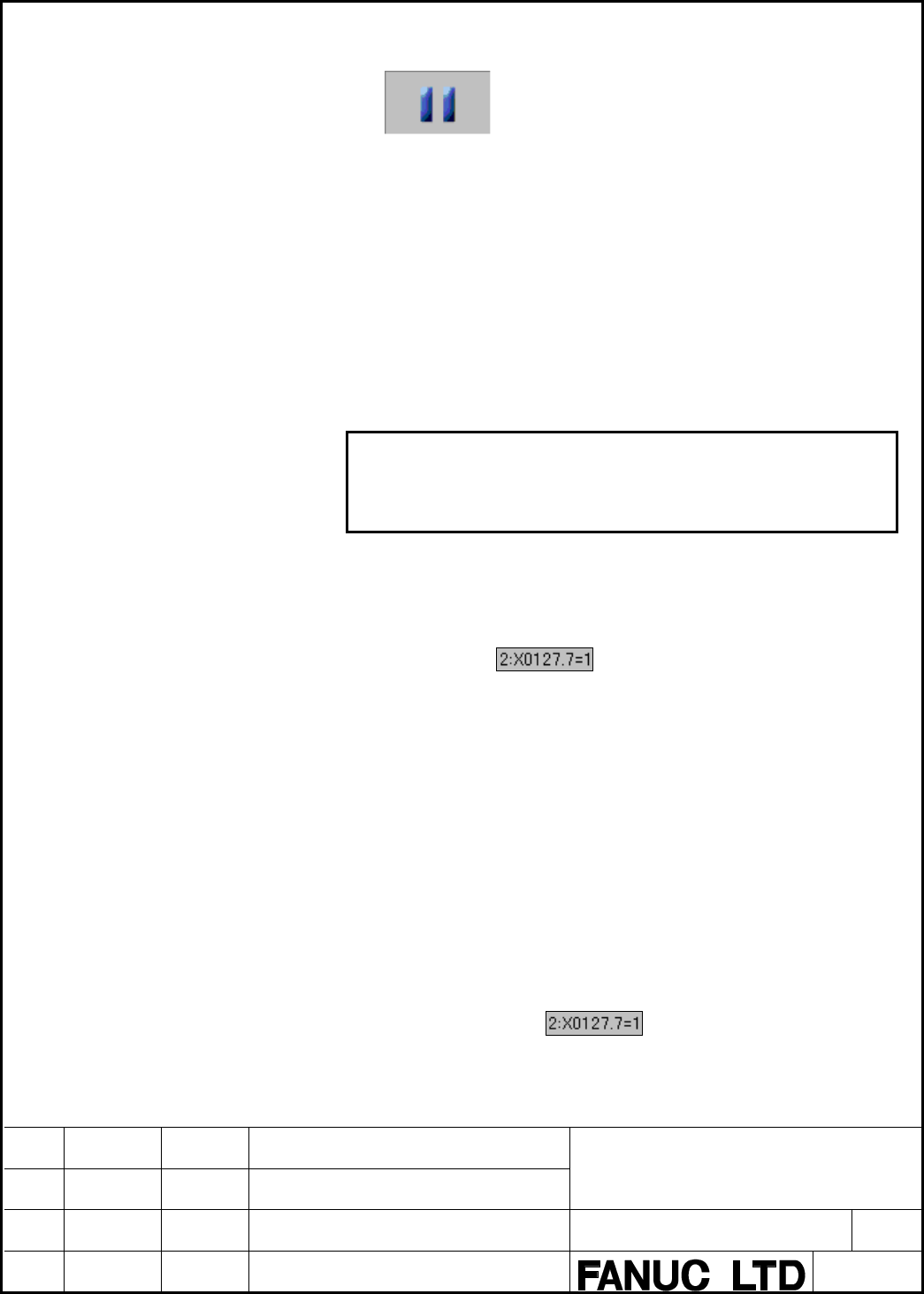

• Next step: The state to be replayed in the next step is shown. It
is shown in the form of
"PMC system: address = value".
Above figure shows that X127.7=1 in the 2nd path
PMC is executed in next step. When two or more
signals change in the same step, only the points that
can fit in the line are displayed. The maximum point
of the signal that can be replayed in the same step is
32 points.
• Wait time: Displays waiting time up to the next step.
• Next file: Displays the file name which is read next when a
CHAIN command is in the signal operation file.
• Recorded step: The playing state in the next step is shown. It
is shown in the form of
"PMC system: address = value".
