FANUC PMC Simulator, Operator Additional Manual Page 29

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
29/70
DRAW.NO.
•

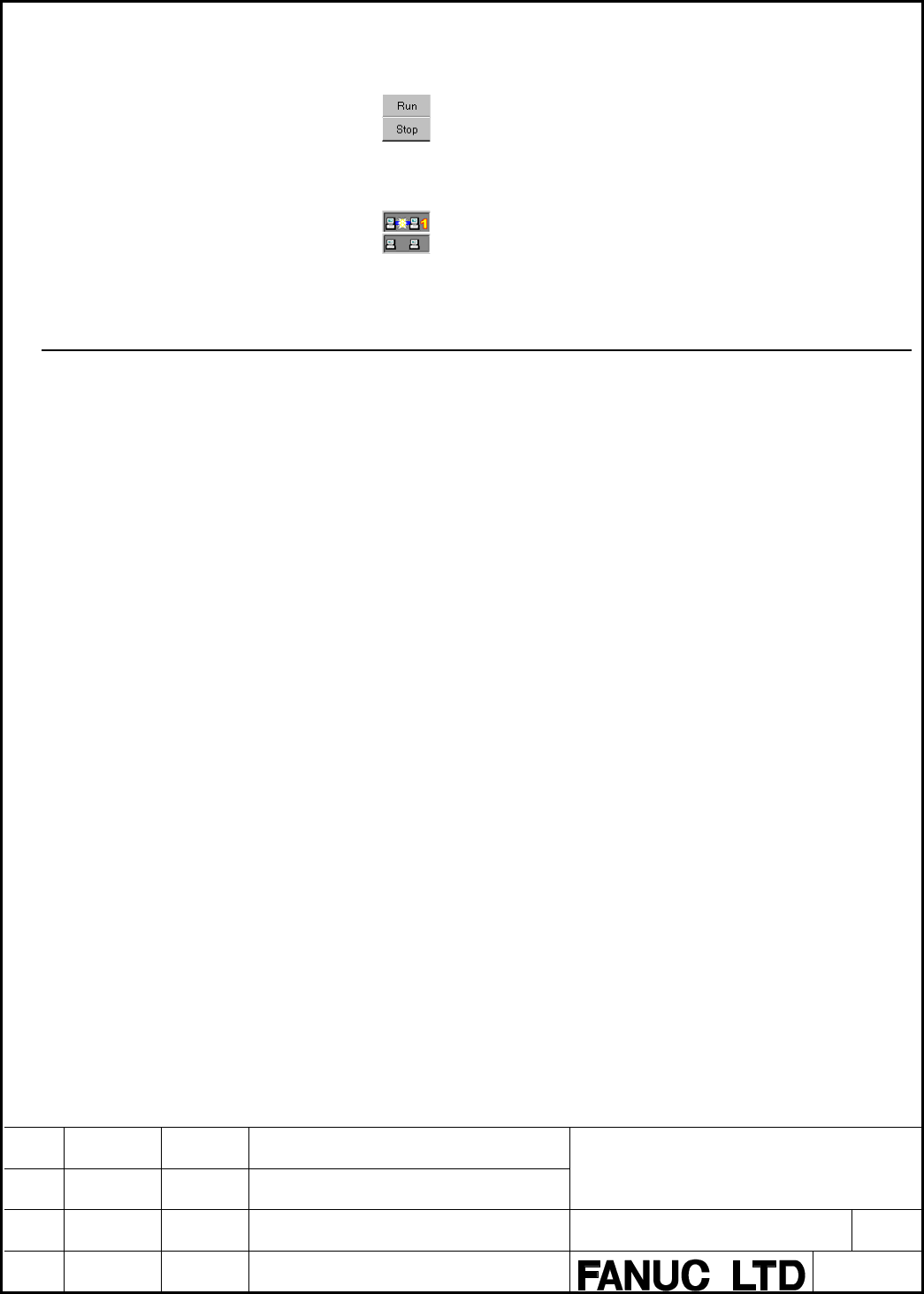

Ladder run/stop
It is a button for running and stopping the ladder.
:Ladder run
:Ladder stop
•
Communication with FANUC LADDER-III
Displays the communication with FANUC LADDER-III.
:Connecting
:Disconnecting
4.2.5 I/O operation panel window
The I/O operation panel window is to display the state of the I/O signals
and the on-off state of signals can be changed by the operation.
Moreover, the data count, data length, and the data type etc. of the I/O
signals can be specified by the I/O operation panel setting and the
address of the I/O signal can be freely arranged.
Setting procedure on I/O operation panel
1. The following screen that lists some X and Y addresses is displayed
at the first starting of the PMC simulator mode.
