FANUC PMC Simulator, Operator Additional Manual Page 62

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
62/70
DRAW.NO.
8 SIGNAL OPERATION REPLAY FUNCTION
8.1 OUTLINE
This function is to record the changing input signals operated on the
I/O operation panel to simplify the manual input operation of the
signals, and to play the recorded contents. Moreover, it is possible to
input/output the recorded contents with the file. The output data can
be edited by the application of the spreadsheet etc. of the PC.
Moreover, making the signal operation file based on the trace data
acquired with actual machine by using signal trace function with
built-in PMC, which enables to reproduce the input signal traced in
actual machine for debugging the ladder.

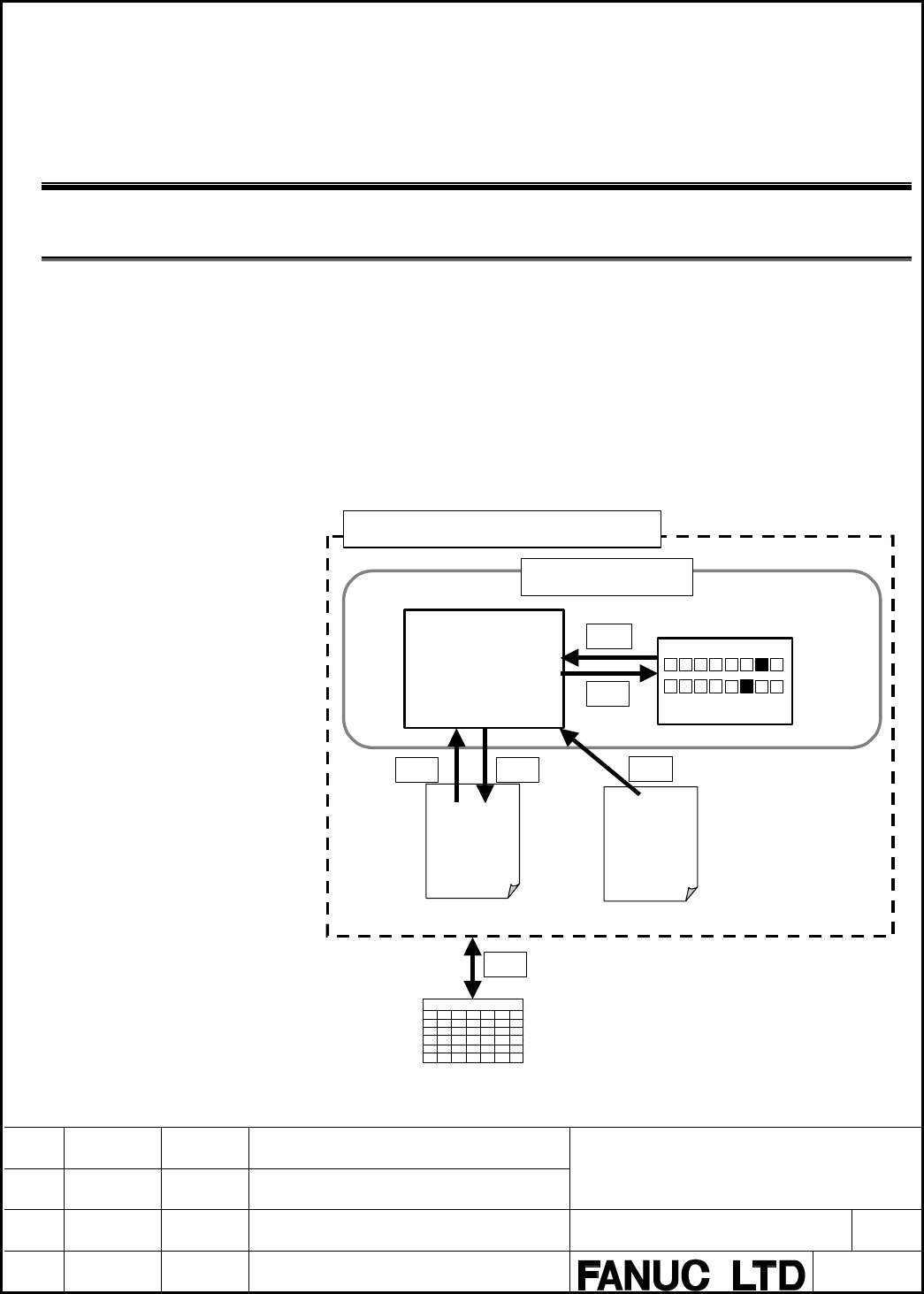

Fig.8.1 Signal operation replay function
PMC Simulator
Signal operation replay function
Memory
I/O operation panel
Record
Play
Signal operation file
Read Save
Trace result file
Read
Edit
Spreadsheet etc
.
