Address data setting dialog

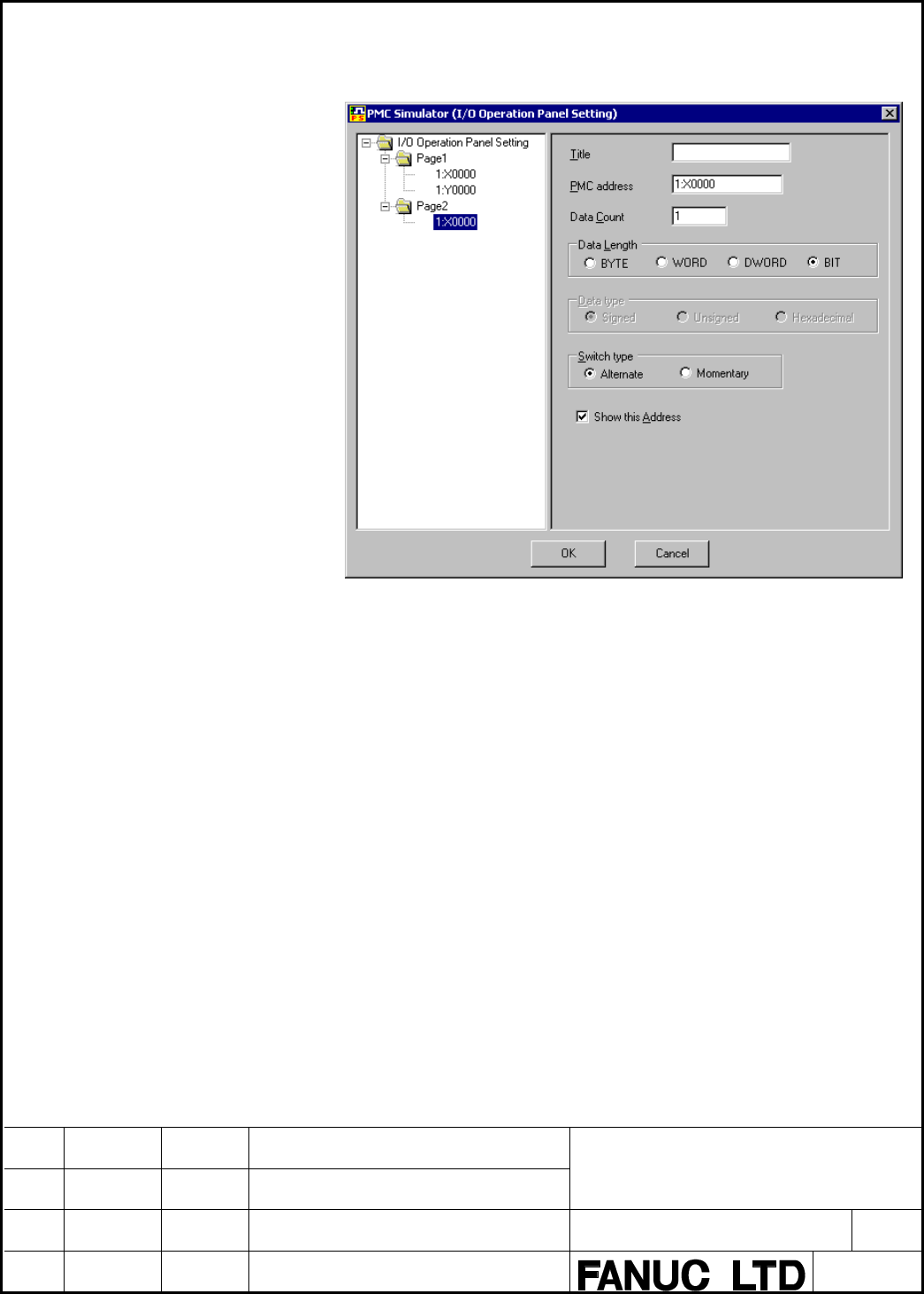

Fig.4.2.5 (j) Address data setting
•
Title
The setting content is displayed in the title of address data node
when setting it. The address is displayed if this is the blank.
•
PMC address
Specify the first PMC signal to display by address or by symbol.
With the multi-path PMC system, an address for a desired PMC
can be set by specifying its PMC number. A setting can be made
by entering "PMC number" + ":" + "address" as indicated above.
When no PMC number is specified, the specification of the
currently selected PMC is assumed. In this case, "PMC
number" + ":" is automatically prefixed to a specified address.
When only one PMC is used as in the standard PMC system, no
PMC number needs to be specified.
•
Data Count
Set the number of data of PMC addresses to display.
•
Data length
Select byte, word, dword, and bit.
