DeviceNet Board Operators manual Page 72

Operators manual
1.DeviceNet FUNCTIONS OPERATION B-63404EN/03
- 60 -
1.3.1 Starting Communications
Case of the Series 16i/18i/21i-A/B
After you have finished setting up the parameters, start
communications by selecting ENABLE at the "1 DIS/ENB" item.
Move the cursor from DISABLE to ENABLE. After several seconds,
communications is started, and the STATUS display changes to
ENABLE as shown in screen 1.3.1 below.

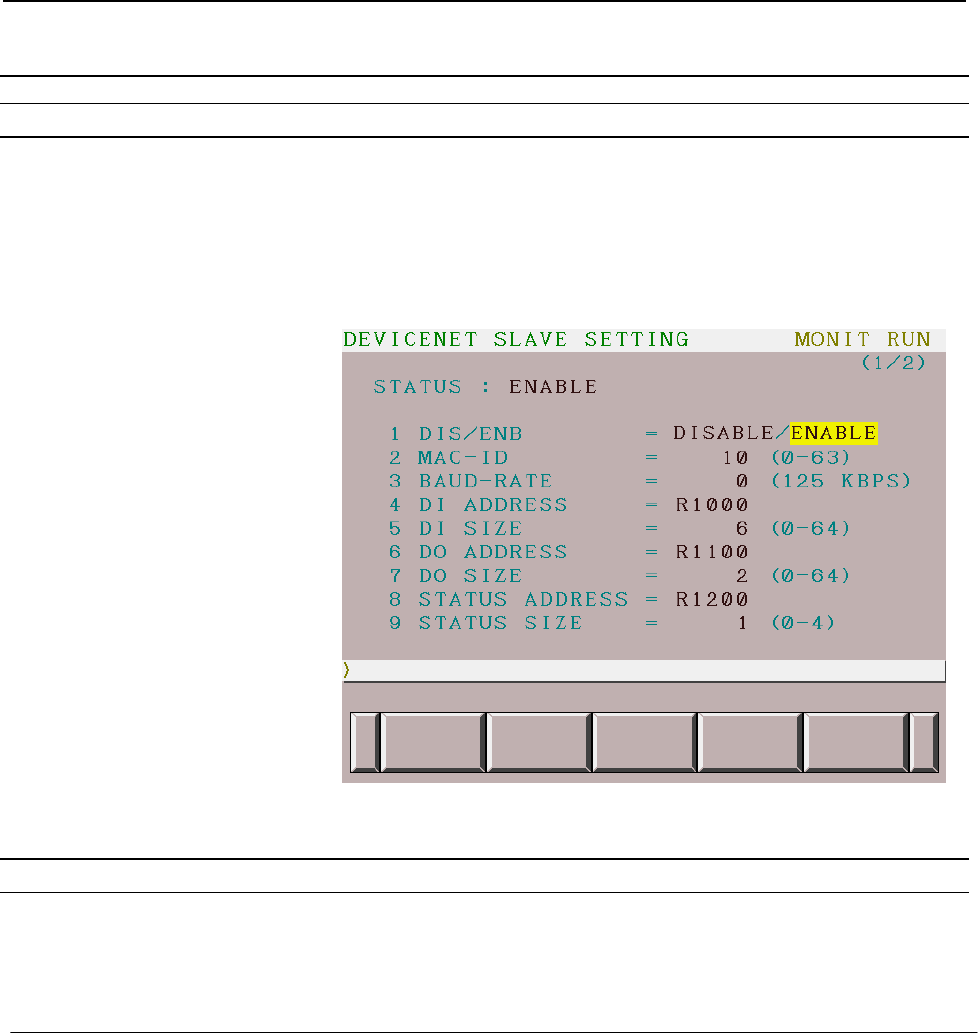

Screen 1.3.1
Case of the Series 16i/18i/21i-A
After parameter setting is completed, setting DISABLE/ENABLE to
ENABLE triggers communication and changes the status indication to
ENABLE.
Cursor operations and switching of screens are not possible for a few
seconds until the connection for communications is established.
