DeviceNet Board Operators manual Page 92

Operators manual
1.CONNECTING DeviceNet FUNCTIONS CONNECTION B-63404EN/03
- 80 -
- Pulling out crimp terminals (DeviceNet boards B and C)
If you made a misconnection, correct it by pulling out the crimp
terminal according to this procedure.
A rod 1 mm in diameter can be used to pull out a crimp terminals.
Recommended tool: HR31-SC-TP manufactured by Hirose Electric
Co., Ltd.

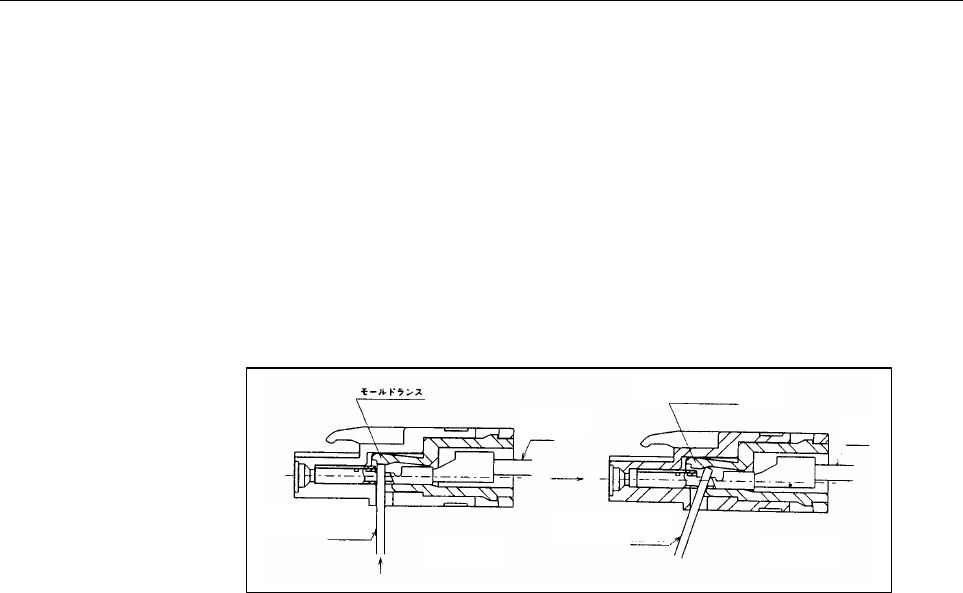

(1) Push a pull-out tool against the molded lance. (See Fig. 1.)
(2) While pushing the molded lance, tilt the pull-out tool to release
the crimp terminal lock. (See Fig. 2.)
(3) Pull out the pull-out tool.
(4) Pull the wire to take out the crimp terminal.
- Extending the line (DeviceNet boards B and C)
Adding a CNC to the existing line requires another crimp terminal
A02B-0259-K211.
(1) Pull out the crimp terminal from the plug of the CNC at the last
stage of the line.
(2) Detach the existing communication cable from the crimp
terminal.
(3) Attach the detached communication cable and an additional
communication cable to a new crimp terminal, and insert it to the
plug.
For details, see "Connecting the communication cable (DeviceNet
boards B and C)."
Molded lance
Molded lance
Pull-out tool
Pull-out tool
Wire
Wire
Fig. 1 Fig. 2
