Open CNC (Ladder Editing Package) Operators manual Page 136

Operators manual
B–62884EN/01
3. OPERATION
131
To be added

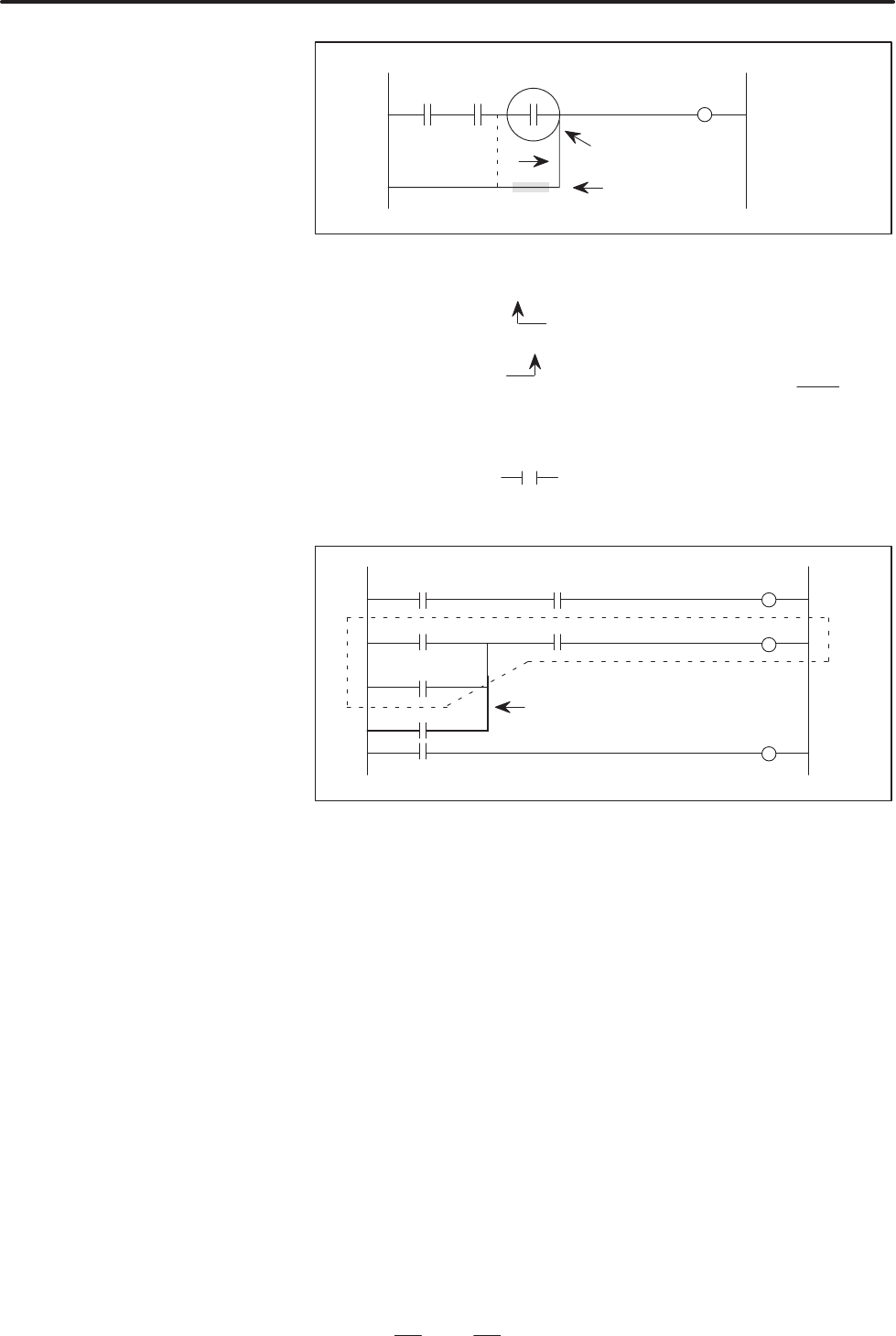

Cursor
[Operation]
1) Move the cursor to the position shown above.
2) Press [
] to delete the vertical line to the left
extending upward. This disappears.
3) Press [
] to create a vertical line extending upward
to the right of the cursor, then press [ ]. A
horizontal line and vertical line are created.
4) Move the cursor to the point on the line where a contact
is to be added.
5) Press [
] to add a contact.
(ii) When a line is added vertically
To be added
To add a line vertically, an area is required for the addition.
To create such an area, the lower part of the ladder diagram
must be shifted down by one line. To do this, move the cursor
to any point in the ladder diagram enclosed in dashed lines,
then press the [insnet] key.
Each time the [insnet] key is pressed, the lower part of the
ladder diagram is shifted one line down to create an area for
addition. Make an addition in this area.
After line addition, any remaining area (as in the case where
two lines are added in an area large enough for three lines) can
be left as it is.
[Operation]
1) Move the cursor to any point in the ladder diagram
enclosed in dashed lines.
2) Press [insnet].
The lower part of the ladder diagram is shifted down by
one line.
3) When the [insnet] key is pressed without entering a
numeric value, one line is inserted.
4) When the [insnet] key is pressed after entering a numeric
value, the number of lines specified is inserted.
