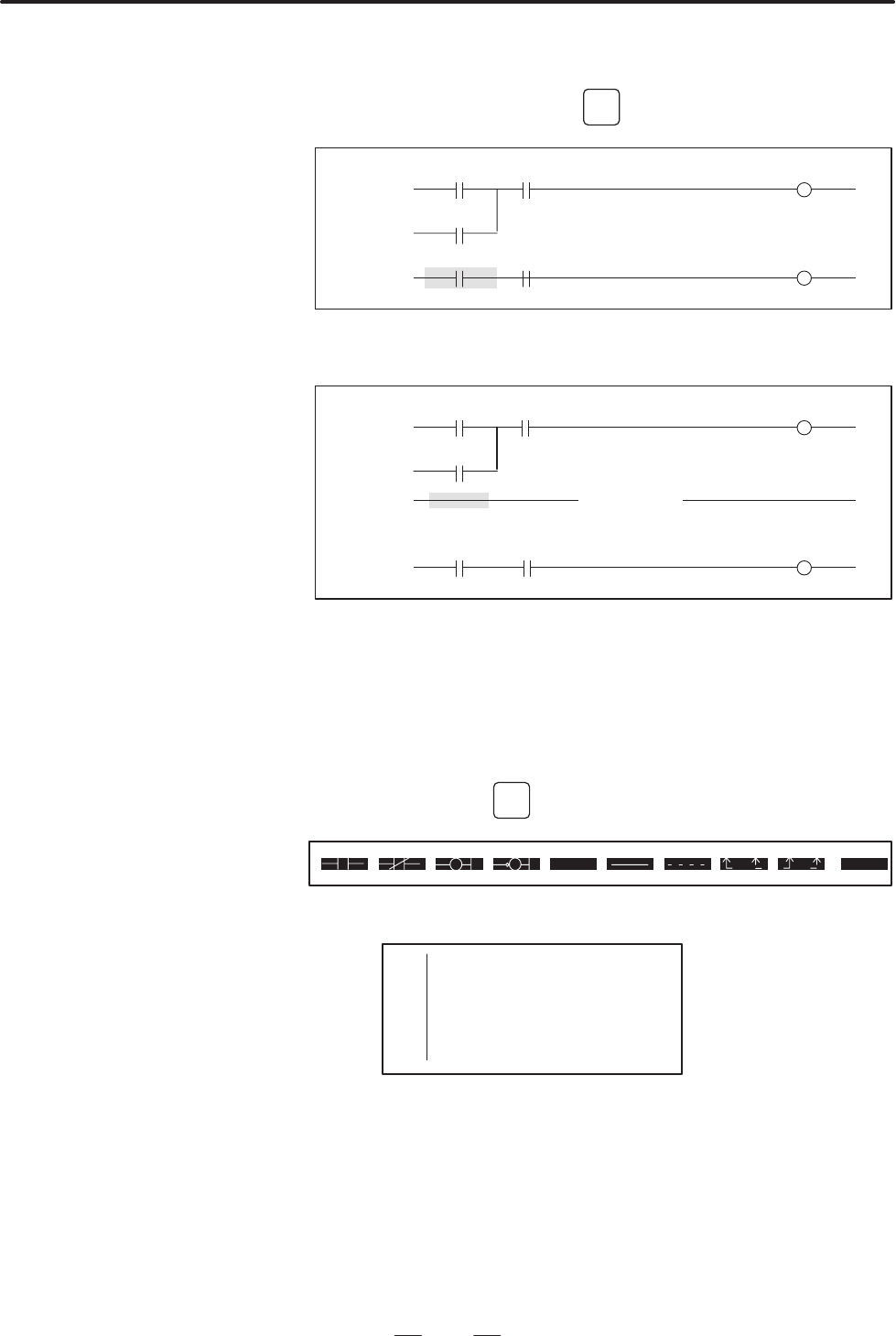

(i) To enter New page
1) Move the cursor to the position you want to feed page.
And then press “
Shift
+[ page ]”.
R100.1.0 R1000.2
R120.3
R100.1.0 R1000.2
Y2000.4
Y23.4
2) Lines at the cursor and after are shifted down, and the
mark of New page is inserted.
R100.1.0 R1000.2
R120.3
R100.1.0 R1000.2
Y2000.4
Y23.4
<New page>
(ii) Other operation to edit New page
New page can be handled as same as other ordinary ladder
nets. The operations such as copying [ Copy ], moving [
Move ], and deleting [Delnet] ladder nets are also effective
on New page.
(q) Terminating editing of a sequence program
[Operation]
1) Press the
Esc
key on the following editing screen.
1 2345 function 6 7 8 or 9 or 10 comand
2) The following editing end menu(pop-up menu) appears.
F1 Save(update) & quit
F2 Quit
F3 Rename,save & quit
F4 Edit
F5 Main
a) F1:Save(update) & quit
After current content of the editing is preserved, the
editing screen will be ended.
b) F2:Quit
After current content of the editing is cancelled, the
editing screen will be ended.
Previous page
Next page
